FallTech 630012C 12 in Clamp Set for HLL I-Beam Stanchion, 2-Pack
FallTech

FallTech 12 in Clamp Set for HLL I-Beam Stanchion, 2-Pack

(No reviews yet) Write a Review
$181.00
Brand:
FallTech
SKU:
630012C-2PK
Availability:
Usually ships in 1 business day
Shipping:
Calculated at Checkout
Adding to cart… The item has been added
American Express Icon American Express Icon Discover Icon Discover Icon Mastercard Icon Mastercard Icon PayPal Icon PayPal Icon Visa Icon Visa Icon
FallTech SteelGrip Components

FallTech 12 in Clamp Set for HLL I-Beam Stanchion, 2-Pack

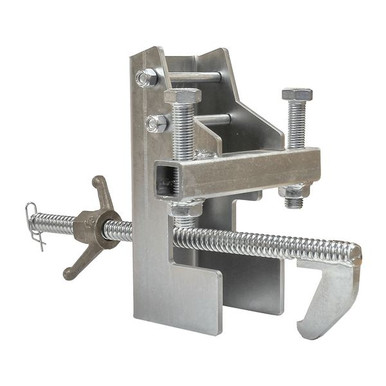

SteelGrip Stanchion Base with 12" Clamping Set. Base features plated steel construction with 7/8" Grade 5 securing bolts.

Clamping rod features 1" diameter plated steel construction with wing nut and cotter pin. For replacement use with stanchion post.

FallTech 630012C 12 in Clamp Set for HLL I-Beam Stanchion, 2-Pack
4 to 12 inFlange Clamp Range
1 inClamp Rod Diameter
7/8 inGrade 5 Bolts
2-PackThis Listing

Who Needs This Product

Crews that run SteelGrip cable lifelines keep genuine installation components on hand so a worn clip, thimble, or absorber never idles a span. Every component is rated for the 3/8 in SteelGrip system, and using factory parts keeps the assembled lifeline inside its OSHA compliance basis.

Features

SteelGrip Stanchion Base

SteelGrip Stanchion Base with 12" Clamping Set.

Base features plated steel construction

Base features plated steel construction with 7/8" Grade 5 securing bolts.

Clamping rod features 1" diameter

Clamping rod features 1" diameter plated steel construction with wing nut and cotter pin.

For replacement use

For replacement use with stanchion post.

⚠

Genuine components keep the system compliant. The SteelGrip compliance basis assumes factory hardware on 3/8 in cable at the manual's clip counts and torques. Substituting hardware store parts voids that basis. Replace the coil energy absorber after any deployment.

Compliance Standards

OSHA 1926.502(d)(8)

Horizontal lifelines must be designed, installed, and used under the supervision of a qualified person, as part of a complete personal fall arrest system.

Typical Applications

System buildsAssembling SteelGrip HLLs from user-supplied 3/8 in cable.
Span upgradesConverting turnbuckle systems to SteelGrip Plus ratchet tensioning.
Inspection findingsReplacing hardware that fails a six-month inspection.
Multi-crew stockSpares that keep several spans running.

How to Use

Follow the FallTech instruction manual. The sequence below is an overview only.

  1. Match the component. Confirm the part fits the 3/8 in SteelGrip system and your span configuration.
  2. Install per the manual. Follow the SteelGrip instruction manual for clip torque, thimble placement, and absorber orientation.
  3. Verify tension. Re-tension the system and confirm the indicator reads correctly before workers connect.
  4. Log the change. Record the component swap in the system inspection record.

Inspection and Retirement

Inspect components on the same schedule as the lifeline, before each use and at least every six months by a competent person.

  • Threads and pawls: clean, lubricated, and fully functional.
  • Load-bearing surfaces: no wear grooves, cracks, or corrosion.
  • Energy absorber coils: tight and undeployed.

Replace any component that fails inspection and re-verify the full span before returning it to service.

Fall Protection Distributors logo Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

TypeBase/Clamp Set
SKU630012C-2PK
BasePlated carbon steel
Fasteners7/8" and 1/2" Grade 5 Carbon Steel
Rod1" plated carbon steel
Wing NutIron Alloy, 1"
WarrantyFallTech 2-year limited warranty against defects in materials and workmanship

Frequently Asked Questions

What system does the 630012C fit?
It is engineered for the FallTech SteelGrip temporary cable HLL system running 3/8 in galvanized cable. Using factory components keeps the assembled lifeline inside its OSHA compliance basis.
Can I build a lifeline from my own cable?
Yes. The SteelGrip installation components are designed for user-supplied 3/8 in galvanized cable. Terminate one end, clamp the field end, install the energy absorber, and tension to the indicator per the manual.
What does the coil energy absorber do?
The 304 stainless steel coil stretches progressively during a fall arrest, limiting the load transmitted to your end anchors. It must be replaced after any deployment.
What is the difference between SteelGrip and SteelGrip Plus?
SteelGrip tensions with a 5/8 in turnbuckle. SteelGrip Plus swaps in a ratchet strap tensioner that reaches working tension faster, and the 62206R retrofits existing SteelGrip systems to Plus.
How often does the hardware need inspection?
Inspect before each use and re-check tension every shift while the span stays rigged. A competent person must inspect the system at least every six months and after any fall event.
What warranty applies?
FallTech provides a 2-year limited warranty against defects in materials and workmanship, and Fall Protection Distributors passes that warranty through to you.
How quickly does this product ship?
Usually ships in 1 business day from our warehouse. Delivery time is based on the delivery location.

FallTech 630012C Submittals and Documentation

630012C-2PK Declaration of Conformity (PDF)Manufacturer conformity certification for compliance files and submittal packages. 630012C-2PK Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 630012C-2PK Spec Sheet (PDF)Full specifications, features, and compliance summary for submittal packages.

Complete Your Horizontal Lifeline System

Specifying a Horizontal Lifeline for Your Crew?

The right system depends on your span, structure, crew size, and the clearance below. Confirm your application with us and we will make sure every component matches before it ships.

Call 863-703-4522 to talk to a fall protection specialist.

FallTech provides a 2-year limited warranty against defects in materials and workmanship on the FallTech product. The warranty is void if the product is altered, misused, or damaged by neglect, abuse, or accident, and it excludes normal wear. Fall Protection Distributors, LLC passes through the manufacturer warranty to the original purchaser.
