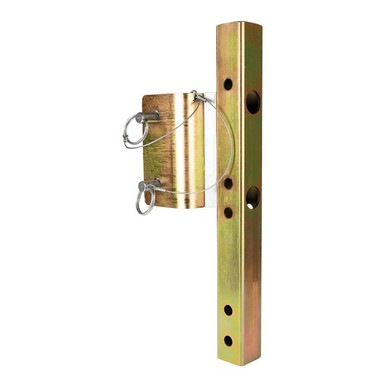

FallTech Davit Arm Device Receiver Bracket for Miller Devices
Specifically designed bracket for use with Honeywell/Miller Winches and SRL-Rs on FallTech Davits. Includes two 4" detent pins for securing to davit arm or mast.
Carbon steel construction throughout.
Who Needs This Product
Facilities that need adjustable-reach access over portals, edges, and offset openings use a davit system where a tripod cannot fit or cannot reach. Davit arms pair with portable or fixed bases, which lets one arm serve many locations across a plant, and the offset reach places the anchor point directly over the work.
Features
Specifically designed bracket for use
Specifically designed bracket for use with Honeywell/Miller Winches and SRL-Rs on FallTech Davits.
Includes two 4" detent pins
Includes two 4" detent pins for securing to davit arm or mast.
Carbon steel construction throughout
Carbon steel construction throughout.
Pins and reach settings matter. Every davit connection must be fully pinned at an approved reach setting before an entrant connects. Follow the FallTech manual for base anchoring and allowable configurations.
Compliance Standards
OSHA 1910.146
Permit-required confined space regulation that drives retrieval and rescue equipment requirements for entry work.
Typical Applications
How to Use
Follow the FallTech instruction manual. The sequence below is an overview only.
- Set the base. Install the davit base or position the portable base at the entry point.
- Assemble the davit. Insert the mast and davit arm, and pin all components at the required reach setting.
- Mount your device. Attach the SRL-R or winch to the device bracket and route the line over the arm sheave.
- Verify the system. Confirm all pins are seated and the system is stable before connecting an entrant.
- Operate per the manuals. Run the devices per their instructions for entry, work, and retrieval.
Inspection and Retirement
Inspect the davit components before each use. A competent person must inspect the system at least annually.
- Arm and mast: bends, cracks, corrosion, and weld condition.
- Pins: full engagement at every connection point.
- Sheaves: turn freely with no cable wear grooves.
- Base: anchor or ballast integrity per the installation instructions.
Retirement triggers: any fall arrest load on the system, structural damage, or missing hardware.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | Device Receiver Adapter Bracket |
|---|---|
| SKU | 65106M |
| Bracket | Plated carbon steel |
| Detent Pins | Plated Carbon Steel; 4" |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 65106M Submittals and Documentation
65106M Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 65106M Brochure (PDF)Specifications, dimensions, and feature summary.Complete Your Confined Space System
