Patriot Vest Style Harness
Proudly union made in the USA, the Frontline Patriot Series brings premium quality, comfort, and full compliance to work at height. The 310VQC is the vest-style configuration: Airflo 3D breathable padding that lets air flow straight through the pad, forged Quick Connect buckles for fast donning, and zinc-plated alloy steel hardware. A padded vest harness for crews that want all-day comfort without trading off compliance.
Polyester with zinc-plated alloy steel; forged quick connect buckles hardware. Rated to a 310 lb capacity and 5,000 lb breaking strength. Compliant with ANSI Z359.11-2021 and A10.32-2012 and OSHA 29 CFR 1910 and 1926. Union made in the USA.
Who Needs This Product
This product is a personal fall protection full body harness. It is used as the wearer-side component of a personal fall arrest system (PFAS), a work positioning system, or a fall restraint system. Pair it with a compatible energy-absorbing lanyard or self-retracting lifeline (SRL) and a certified anchor rated to 5,000 lb. The harness is not a complete fall arrest system on its own.

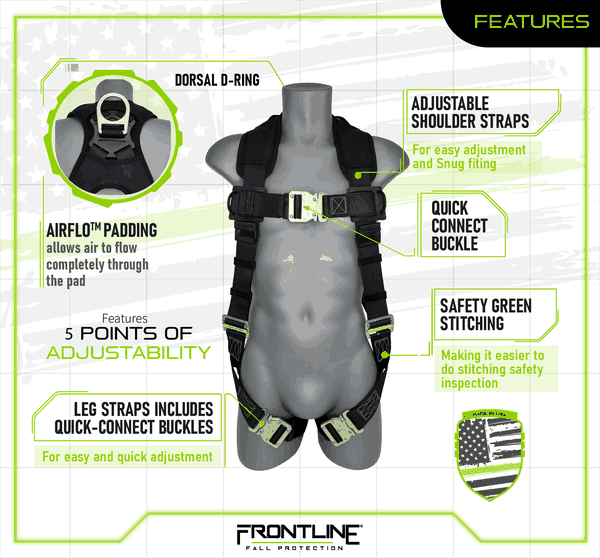

Features
Airflo 3D breathable padding
Special 3D material lets air flow completely through the pad, so it stays cool and holds its shape through long shifts.
Forged Quick Connect buckles
Leg and chest buckles snap shut one-handed and lock audibly for fast, secure donning.
Vest-style padded design
Vest crossover keeps the harness comfortable and stable across the torso for all-day wear.
Union made in the USA
Built in the United States with the workmanship and tailoring of the Patriot line.
Zinc-plated alloy steel hardware
Corrosion-resistant alloy steel hardware rated to the full 310 lb capacity.
Five points of adjustability
Shoulders, chest, and both legs adjust independently for a dialed-in fit.
Configurations
| Size | SKU | Price |
|---|---|---|
| Universal | 310VQC-UN | $277.99 |
| XL | 310VQC-XL | $277.99 |
| 2XL | 310VQC-2X | $294.99 |
Technical Specifications
| Series | Patriot |
|---|---|
| SKU | 310VQC |
| Rated user capacity | 310 lb (worker, clothing, tools, and harness combined) |
| Breaking strength | 5,000 lb |
| Webbing material | Polyester |
| Webbing width | 1.75 in |
| Stitching | High-tenacity polyester |
| Hardware | Zinc-plated alloy steel; forged Quick Connect buckles |
| D-rings | Dorsal (primary fall arrest anchor between the shoulder blades) |
| Weight | 4.0 lbs |
| Available sizes | Universal, XL, 2XL |
| ANSI standard | Z359.11-2021; A10.32-2012 |
| OSHA alignment | 29 CFR 1910 Subpart I; 29 CFR 1926 Subpart M |
| Country of origin | United States (union made) |
Capacity and free fall. The 310 lb capacity includes the worker plus clothing, tools, and harness combined. Maximum free fall for a personal fall arrest system is 6 ft per OSHA 1926.502 when anchored at the dorsal D-ring. Calculate fall clearance for every setup before tying off.
Compliance Standards
ANSI Z359.11-2021
American National Standards Institute fall protection standard for this product class.
ANSI/ASSP A10.32 A10.32-2012
Fall protection systems for construction and demolition operations.
OSHA 29 CFR 1926
Subpart M construction industry fall protection (1926.500-503).
OSHA 29 CFR 1910
Subpart I general industry walking-working surfaces and PPE.
Typical Applications
Donning Overview
Single-operator donning per the Frontline user manual. Always refer to the manual for the full procedure.
- Inspect. Run the harness through a pre-use inspection: webbing, hardware, stitching, labels, fall indicators.
- Orient. Hold the harness up by the dorsal D-ring. Shake the leg straps free so they hang clean.
- Shoulders. Slip both arms through the shoulder straps with the dorsal D-ring centered between the shoulder blades.
- Chest. Connect the chest buckle. Adjust so the strap sits 6 to 8 inches below the collarbone.
- Legs. Pass each leg strap under the thigh and connect at the leg buckle. Tighten until two fingers fit between strap and thigh.
- Tighten. Adjust shoulders, chest, and legs evenly. The dorsal D-ring should rest between the shoulder blades, not riding up the neck or down the lower back.
Inspection and Retirement
Inspect every component before each use. A competent person inspects formally on a documented interval, typically every 6 months under ANSI Z359.2. Pull the equipment out of service for any of the conditions below.
- Webbing: cuts, burns, abrasion, chemical attack, broken threads, loose stitching.
- Hardware: cracks, deformation, sharp edges, corrosion, improper function of buckles and D-rings.
- Stitching: cut, broken, or loose stitches; pulled threads at any load point.
- Labels: legible and intact. Date of first use recorded.
- Fall indicators: any deployed or stretched indicator pulls the equipment out of service immediately.
- Connectors and hooks: gates close fully under spring tension; latches lock; no rollout exposure.
Retirement triggers: any deployed fall indicator, any equipment involved in a fall event, any chemical exposure outside the manufacturer-published list, or any condition where the inspector cannot positively verify the equipment is fit for service.
