Patriot Construction Harness
Proudly union made in the USA, the Frontline Patriot Series is the premium American-built line, delivering quality, comfort, and full compliance at height. The 350CQC is the construction configuration: Airflo 3D breathable padding that lets air flow straight through the pad, forged Quick Connect buckles, zinc-plated alloy steel hardware, and a removable tongue-buckle positioning belt with two side D-rings. A 350 lb capacity construction harness built to stay comfortable through a full shift.
Polyester with zinc-plated alloy steel; forged quick connect buckles hardware. Rated to a 350 lb capacity and 5,000 lb breaking strength. Compliant with ANSI Z359.11-2021 and A10.32-2012 and OSHA 29 CFR 1910 and 1926. Union made in the USA.
Who Needs This Product
This product is a personal fall protection full body harness. It is used as the wearer-side component of a personal fall arrest system (PFAS), a work positioning system, or a fall restraint system. Pair it with a compatible energy-absorbing lanyard or self-retracting lifeline (SRL) and a certified anchor rated to 5,000 lb. The harness is not a complete fall arrest system on its own.

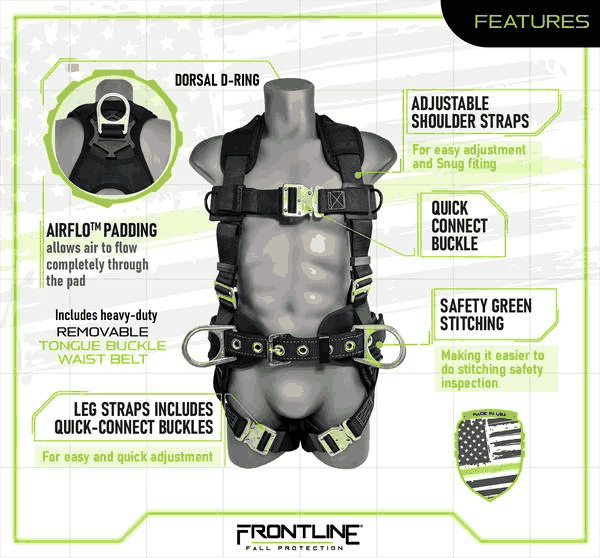

Features
Airflo 3D breathable padding
Special 3D material lets air flow completely through the pad, so it stays cool and holds its shape through long shifts.
Forged Quick Connect buckles
Leg and chest buckles snap shut one-handed and lock audibly; no second-guessing whether the harness is dressed.
Removable positioning belt with two side D-rings
Tongue-buckle waist belt adds work positioning and restraint at the hips; removes when the job does not need it.
Union made in the USA
Built in the United States with the workmanship and tailoring of the Patriot line.
Zinc-plated alloy steel hardware
Corrosion-resistant alloy steel hardware rated to the full 350 lb capacity.
Five points of adjustability
Shoulders, chest, and both legs adjust independently for a dialed-in fit.
Configurations
| Size | SKU | Price |
|---|---|---|
| Universal | 350CQC-UN | $474.99 |
| XL | 350CQC-XL | $474.99 |
| 2XL | 350CQC-2X | $492.99 |
Technical Specifications
| Series | Patriot |
|---|---|
| SKU | 350CQC |
| Rated user capacity | 350 lb (worker, clothing, tools, and harness combined) |
| Breaking strength | 5,000 lb |
| Webbing material | Polyester |
| Webbing width | 1.75 in |
| Stitching | High-tenacity polyester |
| Hardware | Zinc-plated alloy steel; forged Quick Connect buckles |
| D-rings | Dorsal (primary fall arrest anchor between the shoulder blades); Side (hip) (two side d-rings on the removable tongue-buckle positioning belt for work positioning and restraint) |
| Weight | 7.0 lbs |
| Available sizes | Universal, XL, 2XL |
| ANSI standard | Z359.11-2021; A10.32-2012 |
| OSHA alignment | 29 CFR 1910 Subpart I; 29 CFR 1926 Subpart M |
| Country of origin | United States (union made) |
Capacity and free fall. The 350 lb capacity includes the worker plus clothing, tools, and harness combined. Maximum free fall for a personal fall arrest system is 6 ft per OSHA 1926.502 when anchored at the dorsal D-ring. Calculate fall clearance for every setup before tying off.
Compliance Standards
ANSI Z359.11-2021
American National Standards Institute fall protection standard for this product class.
ANSI/ASSP A10.32 A10.32-2012
Fall protection systems for construction and demolition operations.
OSHA 29 CFR 1926
Subpart M construction industry fall protection (1926.500-503).
OSHA 29 CFR 1910
Subpart I general industry walking-working surfaces and PPE.
Typical Applications
Donning Overview
Single-operator donning per the Frontline user manual. Always refer to the manual for the full procedure.
- Inspect. Run the harness through a pre-use inspection: webbing, hardware, stitching, labels, fall indicators.
- Orient. Hold the harness up by the dorsal D-ring. Shake the leg straps free so they hang clean.
- Shoulders. Slip both arms through the shoulder straps with the dorsal D-ring centered between the shoulder blades.
- Chest. Connect the chest buckle. Adjust so the strap sits 6 to 8 inches below the collarbone.
- Legs. Pass each leg strap under the thigh and connect at the leg buckle. Tighten until two fingers fit between strap and thigh.
- Tighten. Adjust shoulders, chest, and legs evenly. The dorsal D-ring should rest between the shoulder blades, not riding up the neck or down the lower back.
Inspection and Retirement
Inspect every component before each use. A competent person inspects formally on a documented interval, typically every 6 months under ANSI Z359.2. Pull the equipment out of service for any of the conditions below.
- Webbing: cuts, burns, abrasion, chemical attack, broken threads, loose stitching.
- Hardware: cracks, deformation, sharp edges, corrosion, improper function of buckles and D-rings.
- Stitching: cut, broken, or loose stitches; pulled threads at any load point.
- Labels: legible and intact. Date of first use recorded.
- Fall indicators: any deployed or stretched indicator pulls the equipment out of service immediately.
- Connectors and hooks: gates close fully under spring tension; latches lock; no rollout exposure.
Retirement triggers: any deployed fall indicator, any equipment involved in a fall event, any chemical exposure outside the manufacturer-published list, or any condition where the inspector cannot positively verify the equipment is fit for service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Frontline 350CQC Submittals and Documentation
Frontline 350CQC Spec Sheet (PDF)Dimensions, weights, materials, hardware, and the full feature and compliance summary. Frontline 350CQC Independent Lab Test Report (PDF)Independent third-party lab test results verifying the ANSI performance clauses. Frontline 350CQC User Instruction Manual (PDF)Donning, adjustment, inspection, and retirement procedures.Compatible and Related Products
