Replacement Bolt for the MEGA Swivel 10K Anchor

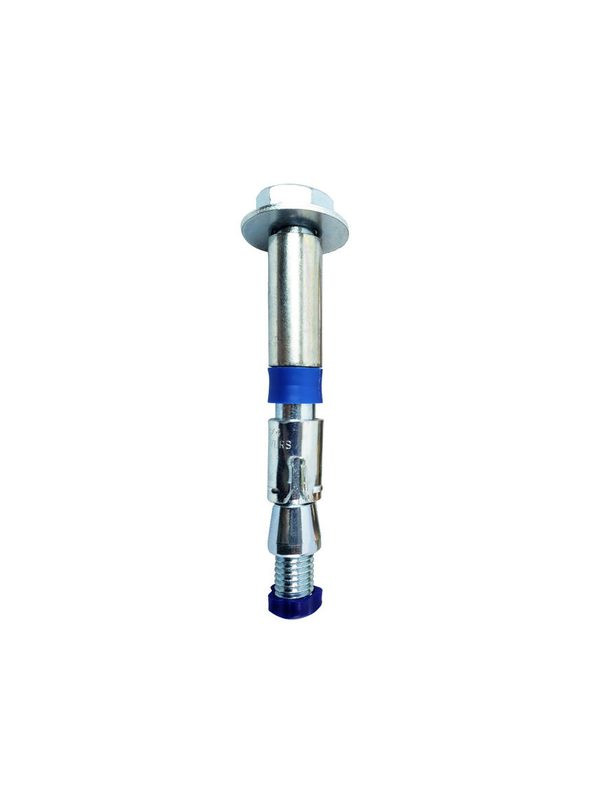

The Frontline COM3410KRB is the replacement concrete bolt for the COM3410K MEGA Swivel 10k concrete anchor. Each MEGA Swivel anchor ships with one bolt installed, and the anchor body itself is fully reusable. The bolt, however, is a single-installation component: every time the anchor is removed and moved to a new anchoring point, the used bolt must be discarded and replaced with a new one.
Keeping a supply of COM3410KRB bolts in the gang box is what makes the reusable MEGA Swivel economical in practice. Crews can strip the anchor at the end of a task, walk it to the next tie-off location, and reinstall in minutes with a fresh bolt, exactly as the Frontline operation manual prescribes. Sold as a 3-pack — three replacement bolts for $99, shipped together in one order.
Who Needs This Product
This product is a consumable replacement component, not a standalone anchor. It is for crews and safety managers who run the Frontline COM3410K MEGA Swivel 10k concrete anchor and need fresh bolts so the reusable anchor body can be relocated. If you do not yet own the anchor, start with the COM3410K, which includes its first bolt.
Features
Genuine Frontline component
The exact bolt the COM3410K is designed, tested, and documented around. No substitutions, no guesswork on the load path.
Enables true anchor reuse
The anchor body relocates across the job for years; a fresh bolt at each new point is the only consumable.
Fast swap
Remove the anchor, discard the used bolt, thread in the new one, and reinstall per the operation manual.
Low cost consumable
Stocking bolts costs a fraction of buying additional anchors and keeps crews from being tempted to reuse hardware.
Technical Specifications
| Model | COM3410KRB |
|---|---|
| Function | Replacement concrete bolt |
| Fits | Frontline COM3410K MEGA Swivel 10k Concrete Anchor |
| Usage | One new bolt required per installation point |
| Shipping weight | Approx. 1 lb |
| Documentation | Operation and instruction manual (Swivel Anchor COM3410K and STM5810K) |
| Sold As | 3-Pack (3 per order) |
Never reuse an installed bolt. A bolt that has been installed and removed must be discarded. Reusing a bolt, or substituting non-Frontline hardware, voids the basis of the anchor's ratings and the manufacturer's instructions. The bolt itself is not an anchor: it only functions as part of the assembled COM3410K MEGA Swivel anchor.
Compliance Standards
Component of a tested system
The replacement bolt carries no standalone standard claims. The compliance claims for the assembled anchor (ANSI, OSHA, and EN listings) appear on the COM3410K spec sheet, and they assume a new, genuine bolt at every installation.
Typical Applications
Bolt Replacement Overview
Follow the manufacturer's manual. The sequence below is an overview only.
- Remove. Take the COM3410K anchor out of its current installation per the operation manual.
- Discard. Destroy or discard the used bolt so it cannot find its way back into service.
- Inspect. Check the anchor body, swivel, and D-ring against the inspection criteria before redeploying.
- Replace. Fit the new COM3410KRB bolt to the anchor exactly as the manual describes.
- Reinstall. Drill, clean, and torque at the new location per the manual, then verify before connecting.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least every 6 months. Pull the equipment from service for any of the conditions below.
- Damaged, stripped, or corroded threads on the new bolt before installation
- Any bolt that has previously been installed, even briefly
- Deformation, cracks, or corrosion on the mating anchor body
- Missing or illegible markings on the anchor assembly
- Any evidence the assembled anchor has arrested a fall
Used bolts are retired by definition after one installation. Discard them on removal, and remove the complete anchor from service if it has arrested a fall or fails inspection.
