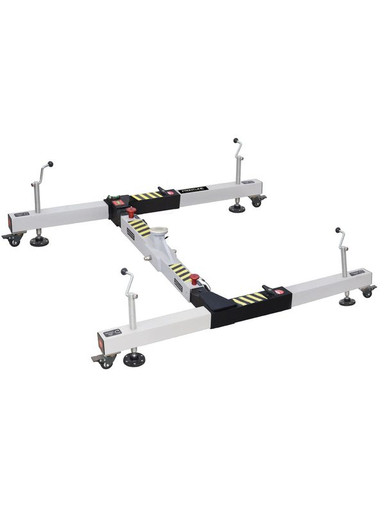

DAC-HBASE Confined Space Davit System H-Base Modular Base
The Frontline DAC-HBASE is the h-base modular base module for the Frontline DAC confined space davit system - the portable H-frame counterweight base that receives the DAC davit arm and holds the boom over the opening for entry, retrieval, and rescue.
Sold as the base only, it lets you outfit multiple work points with the correct foundation while sharing one davit arm. Matched to the DAC davit components, it conforms to OSHA 1910.146 and ANSI Z359 within the complete davit system.
Product Video
See the Frontline davit arm system set up for confined-space entry and non-entry rescue retrieval.
Who Needs This Product
This product is a davit base module - the mounting foundation that receives the DAC confined space davit arm and positions the boom over an opening. Confined space teams choose the base type to match the structure they are anchoring to. It is the base only; the davit arm, retrieval system, harness, and rescue plan complete the system.
Features
H-Base Modular mounting
The portable H-frame counterweight base foundation for the DAC davit boom.
Receives the DAC arm
Shares one davit arm across multiple base locations.
Base only economy
Outfit several work points without buying a davit per location.
Matched to DAC system
Engineered for the Frontline davit arm and retrieval components.
Confined space ready
Positions the boom for entry, retrieval, and rescue.
Durable steel
Built for repeated confined space service.
Technical Specifications
| SKU | DAC-HBASE |
|---|---|
| Type | DAC confined space davit h-base modular base (base only) |
| Function | portable H-frame counterweight base receiving the DAC davit arm |
| Sold as | Base only - davit arm sold separately |
| Compatible | Frontline DAC davit arm and retrieval components |
| Standards | OSHA 1910.146; ANSI Z359; OSHA 1926 |
The base is one part of the system. A davit base alone does nothing - it receives the DAC davit arm, which carries the retrieval system. Verify the base anchorage to the structure per the Frontline manual, and never enter a confined space without the full davit, retrieval device, harness, and a written, practiced rescue plan per OSHA 1910.146.
Compliance Standards
OSHA 29 CFR 1910.146
Permit-required confined spaces: entry and rescue requirements.
ANSI Z359
Fall protection and rescue system standards for the davit system.
OSHA 29 CFR 1926
Construction confined space and fall protection requirements.
Typical Applications
How to Use the DAC-HBASE
Follow the manufacturer's manual. The sequence below is an overview only.
- Verify the structure. Confirm the mounting location can support davit loads per the manual.
- Inspect. Check the base, welds, and receiver before each use.
- Install the base. Anchor the base to the structure exactly as the Frontline manual specifies.
- Insert the davit arm. Seat the DAC davit arm in the base and confirm it locks.
- Rig the retrieval system. Mount the winch or 3-way SRL per the rescue plan.
- Function-test before entry. Confirm retrieval and the rescue plan with the attendant.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least every 6 months. Pull the equipment from service for any of the conditions below.
- Visual: deformation, cracks, corrosion, or damaged welds on load-bearing parts.
- Moving/locking parts: gates, jaws, pins, and locks operate and lock positively.
- Connection points: D-rings, eyes, and hooks free of wear, elongation, or sharp edges.
- Fasteners: present, correct, and fully engaged per the manual.
- Markings: labels must be present and legible.
Retire the equipment immediately after any fall arrest event or if any inspection point fails. Destroy retired equipment so it cannot return to service.
