DAN75-US Patriot Davit Confined Space System, Made in USA

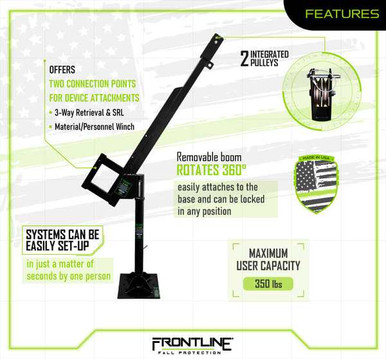

The Frontline DAN75-US is a Patriot davit confined space system, proudly made in the USA: a powder coated steel boom that rotates 360 degrees on a permanent base, carrying two integrated pulleys to run both a fall arrest SRL and a retrieval line over the opening.
The removable boom (17 in x 62 in, 41 lbs) mounts to a permanent base set into steel flooring or concrete, or onto the back of a truck - especially useful for tank entry and work over edges. Built to OSHA confined space requirements, the davit is the backbone of a non-entry rescue system.
Product Video
See the Frontline davit arm system set up for confined-space entry and non-entry rescue retrieval.
Who Needs This Product
This product is a confined space davit system - the rotating retrieval point that lowers and recovers workers and material over an opening. Confined space teams, utilities, and tank crews build their entry and non-entry rescue around it. It requires a rated winch or 3-way SRL, a full body harness, and a written rescue plan to form a complete system.
Features
360-degree boom
Swing the load over the opening and away to the landing zone.
Two integrated pulleys
Run a fall arrest SRL and a retrieval winch line simultaneously.
Permanent base options
Mount to steel, concrete, or a truck bed for mobile rescue.
Made in the USA
Patriot-line build for Buy American specs.
Removable boom
Lift the boom out when the entry point is not in use.
Tank and edge ready
Reaches over tank rims and leading edges.
Technical Specifications
| SKU | DAN75-US |
|---|---|
| Type | Davit confined space system (boom + base), Made in USA |
| Boom | Powder coated steel, 17 in x 62 in, 41 lbs, rotates 360 degrees, removable |
| Pulleys | 2 integrated |
| Base | Permanent: steel flooring, concrete, or truck mount |
| Applications | Tank entry, over-edge work, retrieval |
| Country of manufacture | USA (US and imported components) |
| Standards | OSHA confined space (1910.146); ANSI Z359 |
Confined space demands a rescue plan. A davit is the retrieval point, not the whole system - pair it with a rated winch or 3-way SRL, a full body harness, and a written, practiced rescue plan per OSHA 1910.146. Verify the base anchorage and boom installation per the Frontline manual before any entry.
Compliance Standards
OSHA 29 CFR 1910.146
Permit-required confined spaces - entry, attendant, and rescue requirements.
ANSI Z359
Fall protection and rescue system standards for the davit and its components.
OSHA 29 CFR 1926
Construction confined space and fall protection requirements.
Typical Applications
How to Set Up the DAN75-US
Follow the manufacturer's manual. The sequence below is an overview only.
- Install the base. Mount the permanent base to steel, concrete, or truck per the Frontline manual.
- Inspect. Check boom, pulleys, welds, and base before each use.
- Set the boom. Insert the boom and confirm it rotates and locks.
- Rig the systems. Run the fall arrest SRL and the retrieval winch line through the pulleys.
- Connect the worker. Attach the harness to the SRL and the retrieval line per the rescue plan.
- Test before entry. Function-test retrieval and confirm the rescue plan with the attendant.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least every 6 months. Pull the equipment from service for any of the conditions below.
- Visual: deformation, cracks, corrosion, or damaged welds on all load-bearing parts.
- Moving parts: pulleys, swivels, and locks operate freely and lock positively.
- Connectors and fasteners: present, correct, and fully engaged per the manual.
- Labels and markings: present and legible.
- Function: components move, lock, and release as designed.
Retire the equipment immediately after any fall arrest event or if any inspection point fails. Destroy retired equipment so it cannot return to service.
