DAN75RA-US Patriot Confined Space Davit with 50 ft 3-Way Retrieval, Made in USA

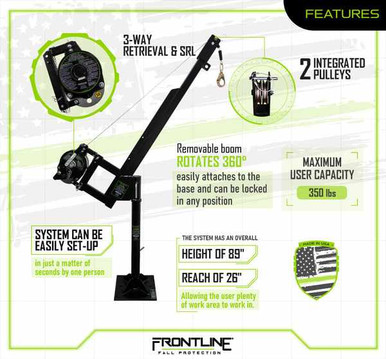

The Frontline DAN75RA-US is the complete Patriot davit rescue package: the 360-degree powder coated steel davit boom with two integrated pulleys, bundled with a 50 ft 3-way retrieval SRL that arrests a fall, then lets the attendant raise or lower the worker without entering the space.
Made in the USA, the removable boom mounts to a permanent base in steel flooring, concrete, or a truck bed - especially useful for tank entry and over-edge rescue. Everything between the opening and the casualty is matched and ready: davit, pulleys, and the integrated 3-way retrieval block. Built to OSHA 1910.146 and ANSI Z359.
Product Video
See the Frontline davit arm system set up for confined-space entry and non-entry rescue retrieval.
Who Needs This Product
This product is a complete confined space davit rescue system - davit, pulleys, and an integrated 3-way retrieval SRL. Confined space teams use it for both entry support and non-entry rescue. It still requires a full body harness and a written, practiced rescue plan to be a complete program.
Features
Non-entry rescue
The attendant raises or lowers a fallen worker from outside the space, so no second person has to enter to perform the rescue.
Two lines, one opening
Fall arrest and retrieval run over the boom at the same time, keeping the worker protected while being lowered, worked, or recovered.
Swing clear to safety
The rotating boom carries the worker away from the hole to a safe landing instead of straight up through the opening.
Removable, shareable boom
The boom lifts off its base to transport between jobs or to serve several pre-installed bases around a site from one arm.
Tank and over-edge ready
The base sets into steel or concrete, or mounts on a truck bed, for tank entry and work over an edge.
Matched and ready
Davit, pulleys, and the 3-way retrieval SRL ship together as one rescue package, so the path from the opening to the worker is complete.
Technical Specifications
| SKU | DAN75RA-US |
|---|---|
| Type | Davit confined space system with 50 ft 3-way retrieval, Made in USA |
| Boom | Powder coated steel, 360-degree rotation, removable, 2 integrated pulleys |
| Retrieval | 50 ft 3-way SRL: fall arrest + raise/lower retrieval |
| Base | Permanent: steel flooring, concrete, or truck mount |
| Country of manufacture | USA |
| Standards | OSHA 1910.146; ANSI Z359; OSHA 1926 |
Confined space demands a rescue plan. This equipment is part of an entry and non-entry rescue system, not a substitute for the written, practiced rescue plan OSHA 1910.146 requires. Verify every anchorage, base, and connection per the Frontline manual before any entry, and train your team first.
Compliance Standards
OSHA 29 CFR 1910.146
Permit-required confined spaces: entry, attendant, and rescue requirements.
ANSI Z359
Fall protection and rescue system standards for the system and its components.
OSHA 29 CFR 1926
Construction confined space and fall protection requirements.
Typical Applications
How to Use the DAN75RA-US
Follow the manufacturer's manual. The sequence below is an overview only.
- Inspect. Check all load-bearing parts, moving parts, and the line before each use.
- Set up per the manual. Install and rig exactly as the Frontline manual specifies.
- Rig the system. Run the retrieval and/or fall arrest lines through the correct points.
- Connect the worker. Attach the harness per the rescue plan.
- Function-test. Test retrieval and confirm the plan with the attendant before entry.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least every 6 months. Pull the equipment from service for any of the conditions below.
- Visual: deformation, cracks, corrosion, or damaged welds on load-bearing parts.
- Moving parts: pulleys, swivels, winch drum, and locks operate freely and lock positively.
- Line/cable: no broken wires, kinks, fraying, or corrosion; spools cleanly.
- Connectors and fasteners: present, correct, and fully engaged per the manual.
- Labels and markings: present and legible.
Retire the equipment immediately after any fall arrest event or if any inspection point fails. Destroy retired equipment so it cannot return to service.
