Frontline RK110V50 Combat Premium Roofer Kit
The Frontline RK110V50 Combat Premium Roofer Kit is a complete, ready-to-work fall protection system built around the 110VTB Combat Lite vest-style harness with aluminum hardware and integrated suspension trauma straps. Every kit ships with the RO01 reusable roof anchor and nails, a 50 ft VLP50 premium vertical lifeline, the RGSS58ES openable self-tracking rope grab with integrated shock pack, and the MPBAG50 tool-tethering and storage bag with six interior tie-off points. This is the premium configuration for crews who want lighter aluminum hardware, an openable rope grab that loads in seconds, and a bag that doubles as tool fall protection on the roof.
110VTB vest harness with aluminum hardware and suspension trauma straps · RO01 hinged roof anchor · VLP50 50 ft premium vertical lifeline · RGSS58ES openable steel rope grab with shock pack · MPBAG50 tool tethering bag · 310 lb capacity · ANSI and OSHA compliant.

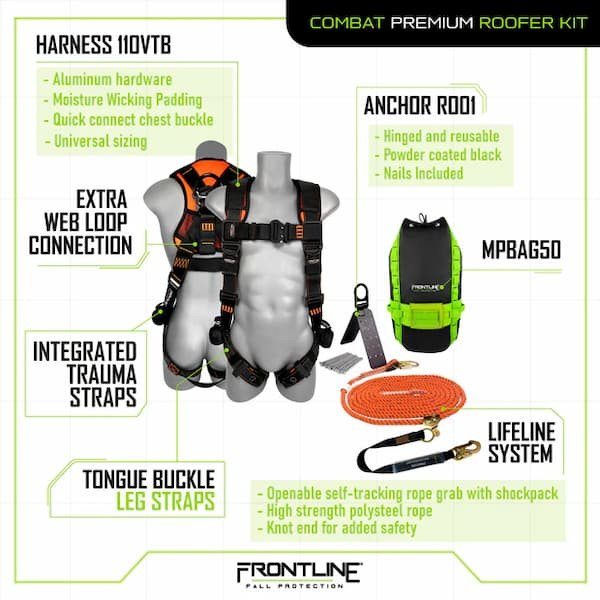

What Is in the Kit
The RK110V50 is a complete Personal Fall Arrest System with a premium upgrade across every component: aluminum hardware on the harness, an openable self-tracking rope grab, and a tool-tethering tactical bag instead of a plain duffel. Every kit ships with five working components, all sized to work together right out of the box.
Combat Lite Vest Style Harness
110VTB- Lightweight aluminum hardware throughout for reduced weight and corrosion resistance
- Integrated suspension trauma straps to relieve leg pressure if a fall is arrested
- Vest-style cut with universal sizing and quick-connect chest and leg buckles for fast donning
- Moisture-wicking back, shoulder and leg pads to reduce fatigue and heat exhaustion
- Web loop attachment for a twin SRL plus a free dorsal D-ring for rescue or a second SRL
- High-tenacity polyester webbing with safety-orange stitching for fast stitch inspection
- Meets ANSI/ASSP Z359.11-2014, A10.32-2004, and ANSI Z359.1-2007, capacity 130 to 310 lbs
RO01 Reusable Roof Anchor
RO01- Hinged design accommodates most roof peaks and flat surfaces, up to a 12/12 maximum pitch
- Comes with the nails included, so it installs straight out of the bag
- High-strength alloy steel body with a forged D-ring and a black powder-coated finish
- 5,000 lbf (22.2 kN) minimum breaking strength
- Reusable and removable, meets ANSI Z359.18-2017
VLP50 Premium Vertical Lifeline
VLP50- 50 ft length of high-tenacity twisted polysteel rope with a knot stopper end
- 5/8 inch rope diameter for strength and smooth handling through the rope grab
- Pre-rigged with the RGSS58ES openable rope grab and an integrated shock pack lanyard
- Stamped steel snaphook attaches directly to the harness back D-ring
- Meets ANSI Z359.15-2014 for energy-absorbing manual rope grabs
Openable Self-Tracking Rope Grab
RGSS58ES- Openable design loads the lifeline by unscrewing one screw, feeding the rope, and screwing back together
- Self-tracking action follows the worker without manual repositioning on the rope
- Forged steel body with a double-locking closing mechanism for security and durability
- Integrated shock pack reduces arrest forces, with a max arrest force of 900 lbf
- Sized for 5/8 inch three-strand polysteel rope, meets ANSI Z359.15-2014
MPBAG50 Tool Tethering and Storage Bag
MPBAG50- Six interior tethering points allow the bag to double as fall protection for tools on the roof
- Exterior back loop for tie-back when working with tools or hoisting the bag to the work area
- Premium vinyl construction built to withstand harsh jobsite environments
- Drawstring closure seals the bag tight when carrying it between job sites
- Lightweight, moisture-wicking back straps for comfortable shoulder carry up the ladder
- Front badge or card holder for convenient ID storage on multi-trade jobsites
Why Crews Choose This Premium Kit
Lighter Hardware, Less Fatigue
The 110VTB harness uses aluminum hardware throughout instead of stamped steel. The result is a noticeably lighter harness on the shoulders for full-day wear, with the same strength and corrosion resistance crews need on roofs that see weather.
Openable Rope Grab That Saves Setup Time
The RGSS58ES is the premium upgrade on this kit. Unscrew one screw, drop the rope in, screw it back. There is no threading the entire lifeline through the grab from the end, which matters when a crew is loading and unloading the rope grab between anchor positions all day.
A Bag That Works on the Roof
The MPBAG50 is not a plain duffel. It is a tool tethering and storage bag with six interior tie-off points and an exterior tie-back loop, so it can stay clipped on the roof during work as a fall protection bag for hand tools, not just a transport bag for the kit.
Suspension Trauma Built In
The harness ships with integrated suspension trauma straps. If a worker is held in suspension after an arrested fall, the straps deploy to relieve pressure on the femoral arteries and buy time for a rescue team to reach the worker.
Kit Specifications
| Kit SKU | RK110V50 |
|---|---|
| Harness | 110VTB Combat Lite vest-style harness, aluminum hardware, integrated suspension trauma straps, quick-connect buckles, universal sizing |
| Harness Standards | ANSI/ASSP Z359.11-2014, ANSI A10.32-2004, ANSI Z359.1-2007 |
| Roof Anchor | RO01 reusable hinged roof anchor, high-strength alloy steel, forged D-ring, black powder coated, nails included |
| Anchor Min Breaking Strength | 5,000 lbf (22.2 kN) |
| Anchor Standard | ANSI Z359.18-2017 |
| Anchor Max Roof Pitch | 12/12 |
| Anchor Fasteners | Minimum 22 twisted nails, 3.6 inch length by 0.15 inch diameter (included) |
| Vertical Lifeline | VLP50 premium vertical lifeline, 50 ft, twisted polysteel, knot stopper end |
| Lifeline Rope Diameter | 5/8 inch (16 mm) |
| Rope Grab | RGSS58ES openable self-tracking rope grab, forged steel body, double-locking closing mechanism, integrated shock pack, max arrest force 900 lbf |
| Lifeline Standard | ANSI Z359.15-2014 |
| Snaphook | Stamped steel, double-locking |
| Tool and Storage Bag | MPBAG50 vinyl tool tethering bag, six interior tie-off points, exterior back tie-back loop, drawstring closure, shoulder carry |
| User Capacity | 130 to 310 lbs, one worker including tools and clothing |
| Maximum Free Fall | 6 ft (1.8 m) |
| Total Fall Clearance Needed | Approximately 18 ft (5.4 m), verify for your setup |
| Service Temperature | -40°F to +130°F |
| Compliance | ANSI Z359.11-2014 · ANSI Z359.18-2017 · ANSI Z359.15-2014 · ANSI A10.32-2004 · ANSI Z359.1-2007 · OSHA 1926 · OSHA 1910 |
How to Set Up and Use the Kit
The summary below is an overview. Always read and follow the full Frontline Roofer Kit user manual, calculate your fall clearance, and have a Competent or Qualified Person verify the setup before anyone works at height.
Inspect every component before use: harness webbing, stitching, and aluminum hardware; the RGSS58ES rope grab and shock pack; the VLP50 lifeline rope; and the RO01 anchor. Remove any defective component from service immediately.
Install the RO01 anchor centered over the roof framing on top of secured sheathing, no less than 6 ft from any exposed roof edge, using at least 22 of the included nails through the center and outer holes. The structure must support 5,000 lbs per worker.
Attach the VLP50 lifeline snap hook to the anchor D-ring. Open the RGSS58ES rope grab by unscrewing the side screw, set the rope in place with the arrow on the grab pointing toward the anchor, and screw the grab back together until it is fully closed and locked.
Don the 110VTB vest harness: dorsal back D-ring centered between the shoulder blades, chest strap at mid-chest, and leg straps snug. Confirm the suspension trauma straps are stowed and that the A marking is visible at the dorsal attachment.
Connect the shock pack lanyard snaphook to the harness back D-ring, confirm the rope grab locks when pulled sharply, work directly below the anchor to avoid swing falls, and keep a written rescue plan ready before anyone leaves the ground.
Important Use Notes
The RO01 anchor must be installed over secured roof sheathing, never directly to a rafter or truss, and never on rotten or degraded wood. Keep the maximum free fall to 6 ft and work no more than 30 degrees to either side of the anchor to limit swing fall. After any fall-arrest event, remove the harness, lanyard, rope grab, and lifeline from service and destroy them; the RO01 anchor must also be removed from service after a fall arrest. Inspect every component before each use and have a Competent Person formally inspect the kit at least every 6 months.
Code Compliance, United States and Canada
United States
- OSHA 29 CFR 1926: Construction fall protection
- OSHA 29 CFR 1910: General industry fall protection
- ANSI/ASSP Z359.11-2014: Full body harness
- ANSI A10.32-2004: Personal fall protection used in construction and demolition
- ANSI Z359.1-2007: Safety requirements for personal fall arrest systems
- ANSI Z359.18-2017: RO01 anchorage connector
- ANSI Z359.15-2014: Vertical lifeline and rope grab
Canada
- Ontario: Reg. 213/91 fall protection requirements
- British Columbia: OHSR Part 11
- Alberta: OHS Code Part 9
- Quebec: RSST fall protection provisions
- Note: Confirm CSA Z259-series equivalence with a Competent Person for a fully CSA-compliant system in Canadian jurisdictions.
Independent Lab Certification
SATRA Technology Centre, United Kingdom
The RO01 roof anchor in this kit, the load-bearing tie-off point of the system, was independently tested by SATRA Technology Centre. The anchorage connector was installed to a simulated substrate and tested to ANSI Z359.18-2017, and it passed. The 110VTB harness and the VLP50 vertical lifeline carry their own independent ANSI certifications, so every link in the chain is built and tested to a recognized fall protection standard.
Component standards: Harness to ANSI Z359.11-2014, anchor to ANSI Z359.18-2017, lifeline and rope grab to ANSI Z359.15-2014. All components meet applicable OSHA requirements.
Submittal Documents
| Document | Description | Download |
|---|---|---|
| Frontline RK110V50 Combat Premium Roofer Kit Spec Sheet | Specification sheet for the Frontline RK110V50 Combat Premium Roofer Kit, summarizing the 110VTB harness, RO01 roof anchor, VLP50 vertical lifeline, RGSS58ES rope grab, and MPBAG50 bag with capacities, materials, and applicable ANSI standards. | Download the Frontline RK110V50 Combat Premium Roofer Kit Spec Sheet |
| Frontline Combat Roofer Kits Brochure | Manufacturer brochure for the Combat Complete Roofer Kit line, including the RK110V50 component list, the 110VTB harness, RO01 anchor, VLP50 lifeline, RGSS58ES rope grab, and MPBAG50 bag details, and the full feature comparison across the kit options. | Download the Frontline RK110V50 Combat Premium Roofer Kit Brochure |
| Frontline Combat Roofer Kit Test Report | Independent test report for the Combat Roofer Kit RO01 anchorage connector, tested by SATRA Technology Centre to ANSI Z359.18-2017 and installed to a simulated substrate. | Download the Frontline RK110V50 Combat Premium Roofer Kit Test Report |
| Frontline Roofer Kit User Manual | Complete user instruction manual for the Frontline Roofer Kits (RK5PTB25, RK5PTB50, RK050V50, RK110V50). Covers limitations, anchorage requirements, connection compatibility, fall clearance charts, donning, inspection, and the RO01 anchor and vertical lifeline instructions. | Download the Frontline RK110V50 Combat Premium Roofer Kit User Manual |
Frequently Asked Questions
What comes in the Frontline RK110V50 Combat Premium Roofer Kit?
The RK110V50 is a complete Personal Fall Arrest System with a premium upgrade across every component. It includes the 110VTB Combat Lite vest-style harness with aluminum hardware and integrated suspension trauma straps, the RO01 reusable roof anchor with nails included, a 50 ft VLP50 premium vertical lifeline, the RGSS58ES openable self-tracking steel rope grab with integrated shock pack, and the MPBAG50 vinyl tool tethering and storage bag with six interior tie-off points. Everything is sized to work together right out of the box.
How is the RK110V50 different from the RK5PTB and RK050V50 kits?
The three kits share the same RO01 roof anchor and the same 5/8 inch polysteel vertical lifeline, but the RK110V50 is the premium configuration. The harness upgrades to the 110VTB Combat Lite vest style with aluminum hardware and suspension trauma straps, the rope grab upgrades to the openable self-tracking RGSS58ES, and the bag upgrades to the MPBAG50 tool tethering bag. The RK5PTB Combat Roofer Kit and the RK050V50 Combat Roofer Kit are good options for crews that do not need the aluminum harness, the openable rope grab, or the tool tethering bag.
Is the RK110V50 kit OSHA- and ANSI-compliant?
Yes. The kit components comply with OSHA 29 CFR 1926 and 1910, along with the applicable ANSI standards: the harness meets ANSI Z359.11-2014, A10.32-2004, and Z359.1-2007, the RO01 anchor meets ANSI Z359.18-2017, and the vertical lifeline and rope grab meet ANSI Z359.15-2014. The RO01 anchorage connector was independently tested by SATRA Technology Centre to ANSI Z359.18-2017 on a simulated substrate and passed.
What is the weight capacity of the kit?
The kit is rated for one worker with a total combined weight of 130 to 310 lbs, including tools, clothing, and equipment. All five components share this range, so the system stays matched. If the combined weight of a worker and tools exceeds 310 lbs, the employer must modify the system to provide proper protection, as the standard kit is not rated for that load.
What kind of roof can the RO01 anchor be used on?
The RO01 is a hinged, reusable roof anchor that works on most roof peaks and flat surfaces up to a maximum pitch of 12/12. It installs over the secured roof sheathing, centered on the roof framing, using at least 22 of the included twisted nails (3.6-inch length, 0.15-inch diameter). It must be placed no less than 6 ft from an exposed roof edge, and never attached directly to a rafter or truss or to rotten or degraded wood. After removal, the roof penetration may need repair by the installer.
How does the openable rope grab work?
The RGSS58ES rope grab is built so the lifeline can be loaded without threading the rope from the end. To install, unscrew the single retaining screw, set the 5/8 inch polysteel lifeline into the grab body with the arrow pointing toward the anchor, and screw the grab back together until it is fully closed and the double-locking mechanism is engaged. The grab self-tracks up and down the lifeline as the worker moves and locks instantly under a sharp pull, with an integrated shock pack that limits arrest forces to 900 lbf.
How much fall clearance does the kit need?
Using the rope grab and lifeline system, the total fall clearance is approximately 18 ft measured from the anchor down to the nearest obstruction below. That figure combines the connector length, the rope grab deceleration distance, the energy absorber deceleration distance, the worker's height, and a safety factor for harness stretch. Always calculate clearance for your specific job and anchor height before working, and work directly below the anchor to limit swing fall.
