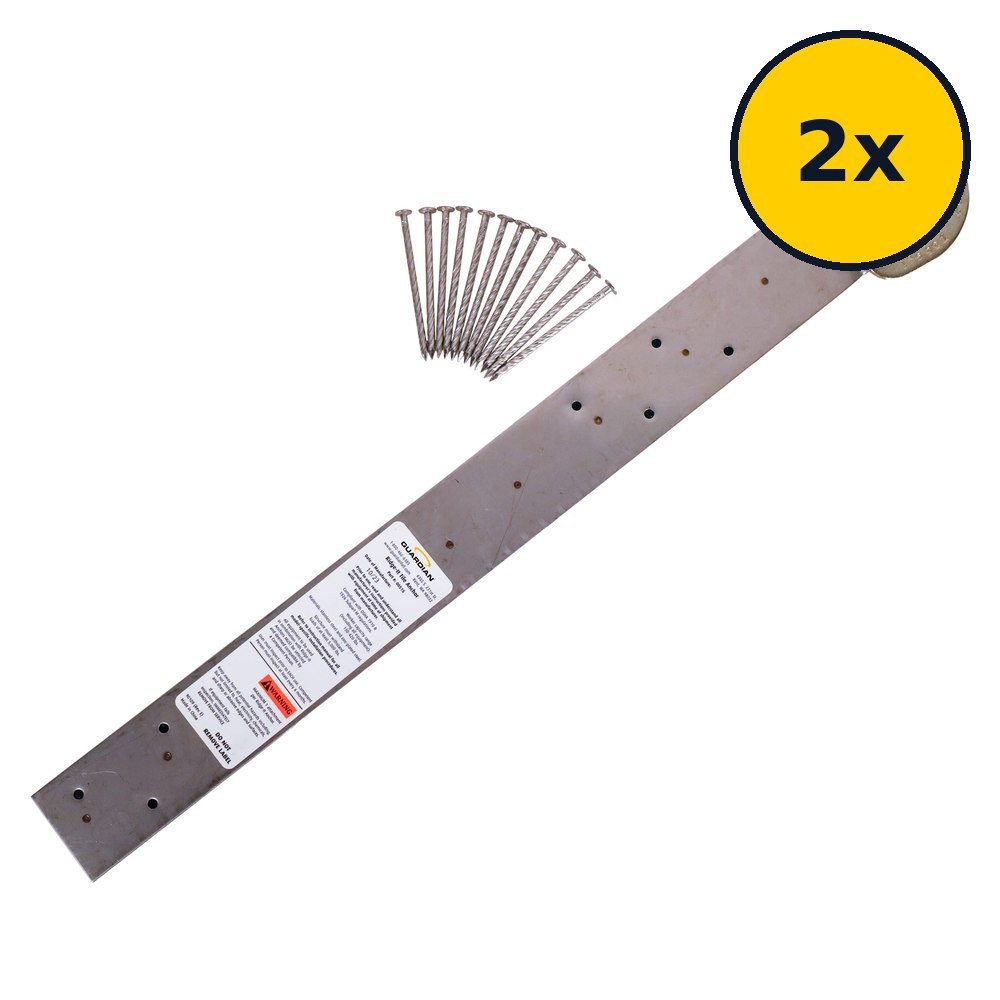

Ridge-It Tile Roof Anchor, 18 in Single D-Ring, 2-Pack
The Guardian 00515 Ridg-Tile brings the proven Ridge-It permanent anchor design to tile roofs: an 18 in stainless and zinc-plated steel anchor with a single D-ring, installed at the ridge with the supplied nails and sealed by an integrated butyl strip. It gives tile roofing crews a permanent tie-off point that stays with the roof after the job is done.
This 2-pack covers the typical work zones of a residential tile roof. Each anchor meets OSHA 1926.502 and 1910.140 and ships with 12 stainless steel spiral nails. Like all Ridge-It anchors, the Ridg-Tile is a permanent installation and is not reusable once removed.
Who Needs This Product
The Ridg-Tile is built for tile roofing contractors who need permanent tie-off on clay, concrete, and slate tile roofs where a standard shingle anchor does not fit the profile. Each anchor serves one worker as the anchorage connector of a personal fall arrest system, and the low-profile strap installs beneath the ridge tiles with only the D-ring exposed. For asphalt shingle roofs, use the standard Ridge-It 00500 or 00510; for crews that remove anchors after every job, the reusable Temper anchor is the better fit.
Features
Purpose-built for tile roofs
Designed for the height and profile of ridge tiles, providing reliable permanent fall protection on clay, concrete, and slate roofs.
Permanent tie-off point
Installs once at the ridge and stays with the roof, ready for future maintenance, solar work, and inspections.
Single D-ring
One corrosion-resistant D-ring provides a secure tie-off point that remains accessible after the ridge tiles are set.
Watertight butyl strip
The integrated butyl strip helps prevent water intrusion at the fastener penetrations for leak-free permanent installs.
Stainless and zinc-plated steel
Corrosion-resistant construction rated for decades of exposure at the ridge line.
Fasteners included
Ships with 12 stainless steel spiral nails per anchor, so installation starts the moment the pack is opened.
Technical Specifications
| SKU | 00515-2PK |
|---|---|
| Pack quantity | 2 anchors |
| Anchor | Guardian 00515 Ridg-Tile |
| Anchor length | 18 in |
| D-rings | 1 (single) |
| Roof type | Clay, concrete, and slate tile roofs |
| Material | Stainless steel, zinc-plated steel, and butyl |
| Fasteners included | Stainless steel spiral nails, 12 per anchor |
| Compatible roof pitch | 0/12 to sheer; never install past sheer |
| Installation | Permanent; not reusable once removed |
| Capacity | 1 worker per anchor |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Permanent anchor, one-time installation. Fill all 12 fastener holes with the provided stainless nails, fully embedded into the structure beneath the tile, with the butyl strip sealing the penetrations. Never install past sheer, and never remove and reinstall a Ridg-Tile: it is not reusable.
Compliance Standards
OSHA 1926.502
Meets the anchorage requirements for personal fall arrest systems in construction.
OSHA 1910.140
Meets general industry personal fall protection system requirements for maintenance access.
ISO 17025 lab tested
Guardian anchors are tested in an ISO 17025 accredited laboratory; the test report is available in the documentation section below.
Permanent anchorage
Designed as a permanent anchorage connector; installation must be verified by a competent person.
Typical Applications
Installation Overview
Installation must follow the Guardian Ridge-It instruction manual (85126) tile details. The sequence below is an overview only.
- Position at the ridge. Place the anchor at the ridge with the label facing up and the butyl strip against the structure, following the tile detail in the manual.
- Verify the structure. Fasteners must be fully embedded into structural wood; the supporting structure must meet the strength requirements in the manual.
- Fasten completely. Drive all 12 provided stainless steel spiral nails; every fastener hole must be filled.
- Seal check. Confirm the butyl strip seats against the structure to seal the penetrations.
- Set the ridge tiles. Install the ridge tiles over the anchor strap, leaving only the D-ring exposed for tie-off.
- Connect the system. Attach a compatible vertical lifeline or SRL to the D-ring and verify fall clearance before work begins.
Inspection and Retirement
Inspect the anchor before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the anchor from service for any of the conditions below.
- Cracks, corrosion, or deformation of the plate, strap, or D-ring.
- Loose, missing, or backed-out fasteners.
- Failed butyl seal or evidence of water intrusion at the penetrations.
- Cracked or displaced ridge tiles around the anchor.
- Any evidence the anchor has arrested a fall.
Retirement triggers: any fall event on the anchor, or any condition where the inspector cannot positively verify the anchor is fit for service. The Ridg-Tile is not reusable; once removed, it must be replaced.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Guardian 00515 Ridg-Tile Submittals and Documentation
Guardian Ridge-It Instruction Manual (PDF)Fasteners, pitch limits, installation steps, and inspection criteria for all Ridge-It models.Guardian Ridge-It Test Report (PDF)ISO 17025 accredited laboratory test results for the Ridge-It anchor family.Guardian Ridge-It Declaration of Conformity (PDF)Manufacturer declaration of conformity for the Ridge-It anchor family.Guardian Anchor Inspection Form (PDF)Printable competent-person inspection checklist for Guardian anchors.Compatible and Related Products
- Guardian 00510 Ridge-It 18 in Double D-Ring 3-Pack. Permanent shingle-roof version with tie-off on both sides of the ridge.

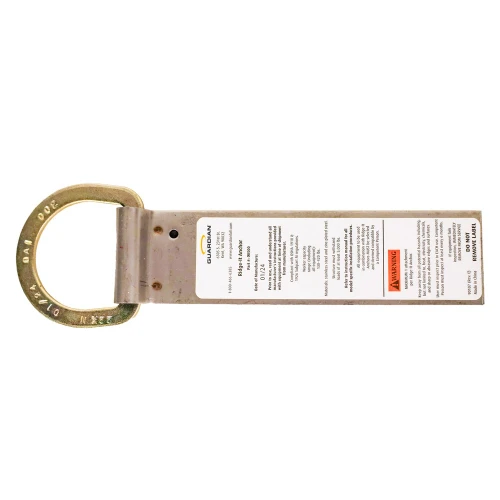

- Guardian 00500 Ridge-It 9.75 in Single D-Ring 3-Pack. Compact permanent anchor for asphalt shingle roofs.
