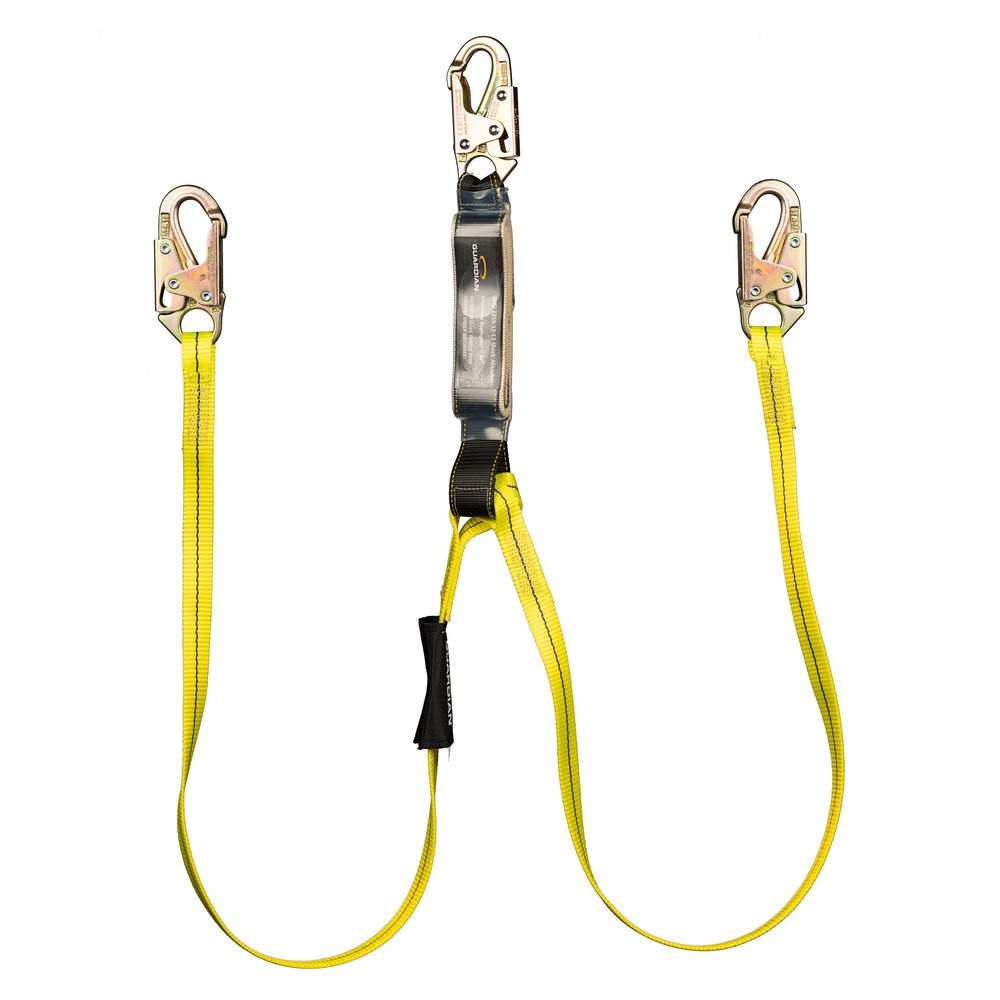

SS72-2 Double Leg Shock Absorbing Lanyard, 6 ft
The Guardian 01230 SS72-2 is the 100 percent tie-off answer in the external shock family: two 6 ft legs off a single energy absorber, so the worker connects the next anchor point before releasing the last one and never hangs unprotected between them.
Certified to ANSI Z359.13 and compliant with OSHA 1926.502 and 1910.140 for workers from 130 to 310 lbs including tools, with locking steel snap hooks throughout.
Who Needs This Product
Double leg lanyards exist for moving work: steel walking, tower transitions, and any task where anchor points change all day. Both legs run to one shock absorber at the dorsal D-ring, and the unused leg stows on the harness lanyard keeper, never on the harness webbing itself per the manual.
Features
Manufactured from durable, 1” nylon webbing
Manufactured from durable, 1” nylon webbing
Clear cover around shock pack to protect against
Clear cover around shock pack to protect against the elements and allow for easy inspection
All hooks manufactured with 3,600 lb. gates
All hooks manufactured with 3,600 lb. gates
Single and dual leg options available
Single and dual leg options available
Jobsite-grade construction
Built with the materials and finish quality Guardian applies across its height safety line.
Documented compliance
Full manufacturer documentation is linked on this page for submittal packages.
Technical Specifications
| SKU | 01230 |
|---|---|
| Worker capacity | 130-310 lbs. including all clothing, tools, and equipment |
| Tensile strength | 5,000 lbs |
| Materials | Polyester, nylon, steel |
| Product weight | 3.2 lbs |
| Dimensions | 8 in L x 3 in W x 4 in H |
| Standards | OSHA 1910.140, OSHA 1926.502, ANSI Z359.13-13 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Account for the full system in your clearance. Total fall distance includes lanyard length, energy absorber deployment, harness stretch, and worker height below the D-ring. The anchorage must withstand 5,000 lbs or maintain a 2:1 safety factor. Never work with the harness D-ring above the anchor unless the application specifically permits it.
Compliance Standards
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.502
This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.
ANSI Z359.13-13
This product is compliant with ANSI Z359.13-13 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Use Overview
Use must follow the Guardian lanyard instruction manual. The sequence below is an overview only.
- Inspect first. Check webbing, stitching, energy absorber, and hooks before every use.
- Connect the absorber end. Attach the energy absorbing end to the dorsal D-ring of the full body harness.
- Connect the anchor end. Attach the free end to a compliant anchorage connector rated 5,000 lbs or engineered with a 2:1 safety factor.
- Verify the gates. Confirm every hook gate is fully closed and locked, with no side loading.
- Check clearance. Verify fall clearance below the work surface including free fall, deployment, and harness stretch.
- Limit free fall. Position the anchor to keep free fall at 6 ft or less and minimize swing fall hazards.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the lanyard from service for any of the conditions below.
- Webbing: cuts, fraying, abrasion, burns, chemical damage, or UV fading.
- Stitching: broken, pulled, or abraded threads.
- Energy absorber: any deployment, torn cover, or elongation.
- Hooks: cracks, corrosion, deformation, or gates that do not close and lock automatically.
- Labels: missing or illegible.
Retirement triggers: any fall arrest event, any absorber deployment, or any condition where the inspector cannot positively verify the lanyard is fit for service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Guardian 01230 Double Leg Shock Absorbing Lanyard 6 ft Submittals and Documentation
Guardian External Shock Lanyard Manual 2 (PDF)Installation, use rules, and inspection criteria from the manufacturer.Guardian External Shock Lanyard Test Report 2 (PDF)ISO 17025 accredited laboratory test results.Guardian External Shock Lanyard Doc Of Conformity 2 (PDF)Manufacturer declaration of conformity.Guardian 01205X Inspection Form (PDF)Printable competent-person inspection checklist.Compatible and Related Products
- Guardian External Shock Absorbing Lanyard 2-Pack. The standard single leg family in 3 to 6 ft.
- Guardian 00455 Temper Roof Anchor 4-Pack. Reusable anchors for these connecting devices.
- Guardian 10733 Suspension Trauma Strap 4-Pack. Post-fall relief for every harness on the crew.
Outfitting a Crew with Connecting Devices?
Length, legs, and hook style follow from your anchors and clearance. Confirm your setup with us and we will make sure the right equipment ships together, based on the delivery location.
Call 863-703-4522 to talk to a fall protection specialist.
Guardian Fall Protection Manufacturer Warranty
Guardian warrants to the purchaser that all products are free from defects in material, workmanship, and design (when the design is Guardian's responsibility). This warranty does not cover conditions resulting from normal wear and tear, neglect, abuse, accident, or otherwise. Guardian's obligations under this warranty apply for the lifetime of the product and are limited to the replacement of the product only.
This warranty is not transferable and does not apply to product that is resold after having been put into service. The warranty is void if the product is changed or altered in any way, or if the product is used in a manner other than for which it is intended. No other person, firm, or entity is authorized to assume or assign for Guardian any other liability in connection with the sale or use of Guardian products. There are no implied warranties of merchantability or fitness for a particular purpose.
Source: Guardian Standard Terms and Conditions of Sale, Doc. 102 v3.0. Contact Guardian customer service at +1 (800) 466-6385 or through guardianfall.com for warranty claims and product support.
