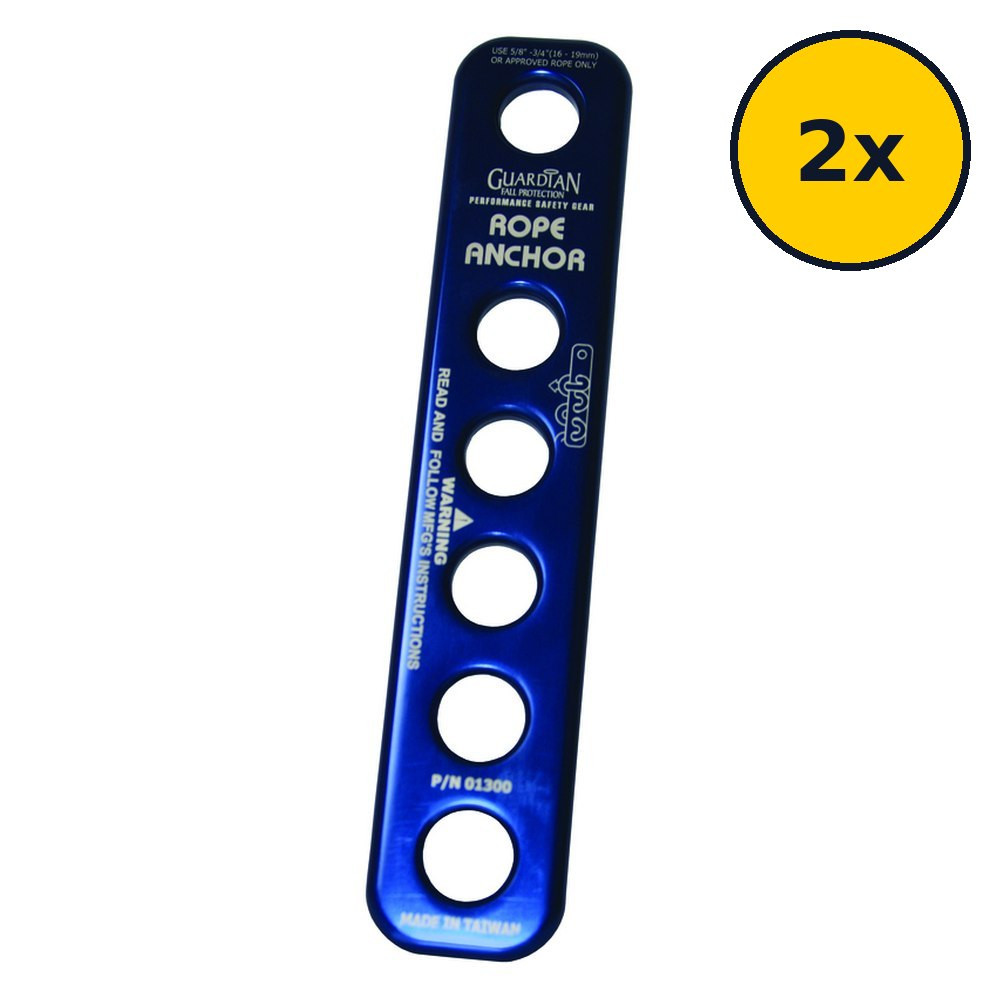

Rope Anchor Device, 2-Pack
The Guardian 01300 rope anchor device creates a compliant anchorage from the rope system itself, giving rope-rigged jobs a rated termination point per the configurations in the manual. This 2-pack covers both ends of a typical rigging layout.
Used within the manual configurations, it serves one worker under OSHA 1926.502 and 1910.140, with documentation linked below.
Who Needs This Product
Rope-access and roofing crews use the 01300 to close the loop on rope-built systems: a rated device where the rope meets the structure, instead of improvised knots and girth hitches around unrated members. It pairs naturally with Guardian VL58 ropes and the vertical lifeline family, and the 2-pack covers paired terminations. Configuration limits live in the manual; a competent person verifies the layout.
Features
Installs to rope without the need for special to
Installs to rope without the need for special tools or equipment
Manufactured from lightweight and durable powder
Manufactured from lightweight and durable powder-coated aluminum for excellent resistance to the elements
Attachment method keeps anchor tight and secure
Attachment method keeps anchor tight and secure to rope while remaining simple to untie
Two use applications
1) Attach to end of vertical lifeline and use system as a form of anchor extension, and 2) Wrap rope around structural anchor and secure with Rope Anchor, then use standard Rope Grab/connecting device assembly
Jobsite-grade construction
Built with the materials and finish quality Guardian applies across its height safety line.
Documented compliance
Full manufacturer documentation is linked on this page for submittal packages.
Technical Specifications
| SKU | 01300-2PK |
|---|---|
| Product weight | 0.62 lbs |
| Dimensions | 13 in L x 2 in W x 0.375 in H |
| Standards | OSHA 1910.140, OSHA 1926.502 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Anchorage strength is the foundation of the system. The structure and anchor must withstand 5,000 lbs per attached worker or maintain a 2:1 safety factor under qualified-person supervision. Verify substrate, fastener, and orientation requirements against the instruction manual before every installation.
Compliance Standards
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.502
This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Installation Overview
Installation must follow the Guardian instruction manual for this anchor. The sequence below is an overview only.
- Inspect first. Check the anchor body, connection point, and hardware before every installation.
- Verify the structure. The supporting structure must meet the strength requirements in the instruction manual.
- Install per the manual. Follow the substrate, fastener, and orientation requirements exactly; fill every required fastener position.
- Verify the connection. Confirm the anchor is fully seated and the connection point is accessible and undamaged.
- Connect the system. Attach a compatible connecting device and verify the complete personal fall arrest system with a competent person.
- Check clearance. Confirm fall clearance below the work area and minimize swing fall hazards before work begins.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the anchor from service for any of the conditions below.
- Cracks, corrosion, or deformation of the body, connection point, or welds.
- Loose, missing, damaged, or worn hardware and fasteners.
- Elongation or wear at the D-ring or connection eye.
- Missing or illegible labels.
- Any evidence the anchor has arrested a fall.
Retirement triggers: any fall event on the anchor, or any condition where the inspector cannot positively verify it is fit for service.
