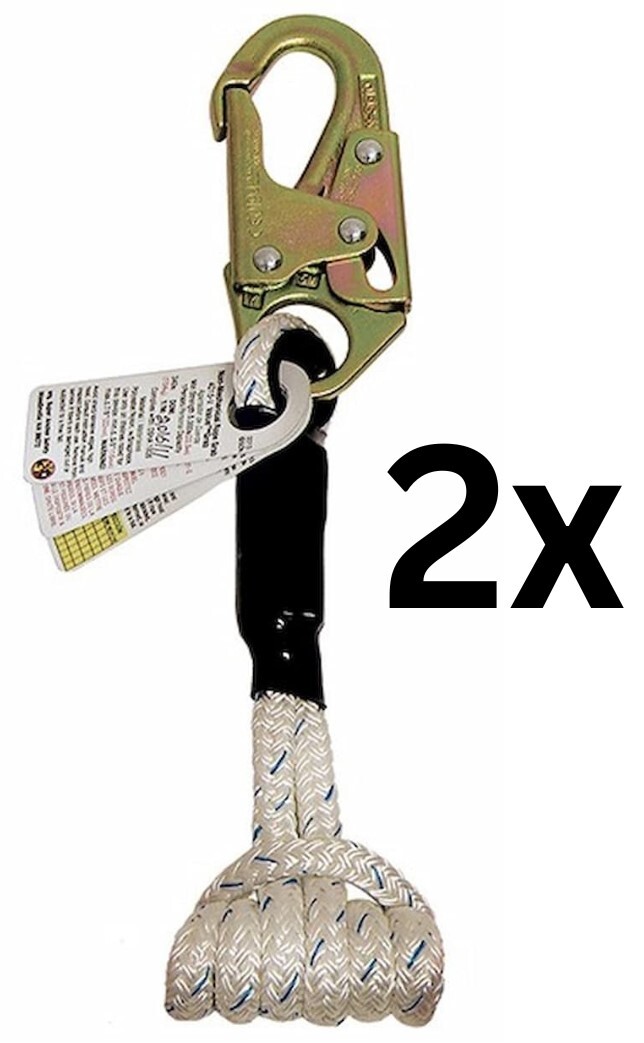

ValueGrab 4015-V Rope Grab with Snaphook, 2-Pack

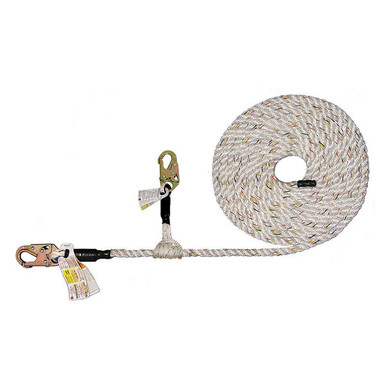

The Super Anchor 4015-V ValueGrab is a prussic style rope grab for SAS 5/8 inch synthetic lifelines with a factory swaged Z359 snaphook, so the connecting device is permanently part of the grab. The 7/16 inch nylon and polyester prussic carries a 7,400 lb tensile strength, locks in both directions, and decelerates a fall in a maximum of 12 inches when used with a personal energy absorber.
What is included: 2 ValueGrab 4015-V rope grabs, each with a factory attached 3,600 lb gate strength snaphook. The aluminum swage and eye thimble act as the fall indicator, deforming when subjected to a free fall. Like the SuperGrab, the ValueGrab is approved for reverse rigging and is compliant with OSHA 1926.502.
Who Needs This Product
Crews that want a prussic rope grab with the connector already built in. The swaged snaphook removes a separate carabiner purchase and a potential compatibility mistake, which makes the ValueGrab the simple choice for residential roofers, punch-out crews, and companies outfitting multiple workers. Each grab connects through a personal energy absorber to a full body harness on a 5/8 inch SAS lifeline, and the ValueGrab is one of the two SAS grabs rated for reverse rigging with the grab at the anchorage point. Not a standalone device; always use as part of a complete personal fall arrest system.
Features
Factory swaged snaphook
A Z359 snaphook with 3,600 lb gate strength is professionally swaged onto the grab, providing a permanent, always-compatible connecting device.
Prussic knot grip
Maintains its hold on the lifeline even when wet or frozen and stays flexible as it expands and contracts with the rope.
Dual direction locking
Force in either direction initiates the lock with only a few inches of slip under extreme force.
Fall indicator thimble
The eye thimble and aluminum swage deform when subjected to a free fall, flagging the grab for removal from service.
Reverse rigging approved
Attach the ValueGrab to the anchorage point and the lifeline end to the harness to eliminate trailing rope.
Metal roof friendly
The soft prussic resists snagging and will not scratch standing seam or painted metal panels.
Technical Specifications
| Model | 4015-V ValueGrab |
|---|---|
| Package | 2-pack |
| Type | Prussic (non-mechanical) rope grab, captive |
| Prussic Cord | 7/16 inch nylon and polyester |
| Tensile Strength | 7,400 lb average |
| Locking | Dual direction |
| Maximum Deceleration | 12 inches, requires a personal energy absorber |
| Connector | Factory swaged class 1 snaphook, 3,600 lb gate strength, ANSI Z359.12-2009 and CSA Z259.12-11 |
| Swage | Aluminum swage with clear PVC cover; eye thimble deforms in a free fall |
| Lifeline Compatibility | SAS 5/8 inch lifelines: Value 3-strand, Maxima, Deluxe 12-strand, X-Line |
| Grab Knot | 6 wraps required, adjusted snug around the lifeline |
| Limiter Knot | Required, tied approximately 12 inches from the lifeline end |
| Compliance | OSHA 1926.502; Department of Labor compliance letter |
Never grab the lifeline above the rope grab, or the rope grab itself, during a fall. Connect the snaphook to a personal energy absorber, never directly to the harness dorsal or side D-ring. Do not apply lubricants, and always tie a limiter knot near the lifeline end so the grab cannot slide off the rope.
Compliance Standards
OSHA 1926.502
Meets federal construction fall protection criteria for personal fall arrest system components.
Dept. of Labor Letter
SuperGrab and ValueGrab prussic rope grabs are supported by a Department of Labor compliance letter.
ANSI Z359.12-2009
The factory swaged snaphook is a class 1 connector with 3,600 lb gate strength, also meeting CSA Z259.12-11.
CSA Certified Lifelines
Pairs with SAS 3-strand, 12-strand, X-Line, and Maxima lifelines carrying CSA RMRP and XLI certifications.
Typical Applications
Installation Overview
Full rigging figures, function tests, and the reverse rigging addendum are in the manuals linked below. The basics:
- Attach the lifeline A-end to an OSHA or ANSI compliant anchorage device with a class 1 connector.
- Confirm the ValueGrab has 6 full wraps around the lifeline, adjusted snug.
- Clip the factory snaphook to your personal energy absorber, and connect the absorber to the harness dorsal D-ring.
- Tie a limiter knot approximately 12 inches from the lifeline B-end to prevent unintentional disengagement.
- Adjust working position by holding the wraps and pulling the lifeline in the opposite direction.
- Perform the lock test before each use: the grab knot must not move when loaded from the A-end, and must move easily when held open.
Inspection and Retirement
Inspect before installation and each use, with documented annual inspections. Remove the equipment from service when any of the following apply:
- The eye thimble is deformed or missing, or the swage is cracked or loose.
- Prussic strands are cut, hocked, or heat damaged.
- Fewer than 6 rope wraps are present; add wraps as needed before use.
- The snaphook fails the gate lock, gate open, or gate close function tests, or rivets are missing.
- PID or inspection labels are missing.
- The grab was subjected to a free fall.
Tag equipment removed from service to prevent further use until inspected by a qualified or competent person.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Super Anchor 4015-V Submittals and Documentation
Rope Grabs Instruction/Specification Manual (PDF)Rope grab types, performance specifications, function tests, and inspection requirements for SAS 5/8 inch lifelines. SAS Synthetic Lifelines Manual 05-2024 (PDF)Lifeline model specifications, rope grab compatibility, limiter knot requirements, lock tests, and length of fall calculations. Lifelines Compatibility with Rope Grabs (PDF)Standard and reverse rigging diagrams, lifeline material specifications, and rope grab pairing table. Lifeline Reverse Rigging Manual 2015 (PDF)Reverse rigging instructions, PPE requirements, and compatibility table for SuperGrab and ValueGrab rope grabs. Super Anchor Warranty and Compliance Statement (PDF)Manufacturer warranty terms and compliance statement for Super Anchor Safety products.Compatible and Related Products
- Super Anchor 4020 3-Strand Value Lifeline. 5/8 inch lifeline ready for the ValueGrab in 25 to 100 ft lengths.
- Super Anchor 4021-50V Lifeline + ValueGrab Combo. 50 ft Value lifeline with this grab factory supplied.
- Super Anchor SuperGrab 4015 Rope Grabs. Prussic grab with hand grab cover for your own carabiner.
- Super Anchor 3013-D Hinge-2 Anchors. Reusable roof anchors for the lifeline A-end.
Outfitting a Crew with Rope Grabs?
Tell us how many workers you are equipping and which lifelines they run and we will quote ValueGrab packs, lifelines, and absorbers in one order with accurate freight, based on the delivery location.
Call 863-703-4522 to talk to a fall protection specialist.
Super Anchor Safety Manufacturer Warranty
Super Anchor Safety (SAS) warrants to the purchaser that all products are free from defect in material and workmanship at the time of shipment. This warranty is limited to product replacement for a period of one (1) year from the date of installation or use by the owner, provided that this period shall not exceed two (2) years from the date of shipment. This warranty only covers defects in material and workmanship. It does not cover conditions resulting from normal wear, neglect, abuse, or accident. This product warranty does not cover oxidation of zinc, dacromet, or powder coatings used on permanent and temporary anchors that results from connector abrasion unless the coating can be shown to be defective at the time of purchase. This warranty is non-transferable. Any unused defective product will be replaced at no charge by returning the product to Super Anchor Safety or to the distributor the product was purchased from.
Permanent Anchor Warranty
Super Anchor Safety warrants to the purchaser that all anchors sold as a permanent fixture with Hot Dip Galvanizing, Stainless Steel, and Thermo-Plastic finishes are fully warranted against failure due to defects in materials or workmanship for a period of five (5) years from the date of initial installation. SAS does not warranty the installation or flashing system used to waterproof the anchors. The SAS factory warranty is void if the product has been modified or has not been used in accordance with SAS specifications and instructions for that product. Anchors that have been removed from service due to re-roofing or remodel of the structure they were originally attached to must be inspected by an SAS factory representative or a competent person before being reinstalled.
See the Super Anchor Warranty and Compliance Statement (PDF) for the full manufacturer document.
