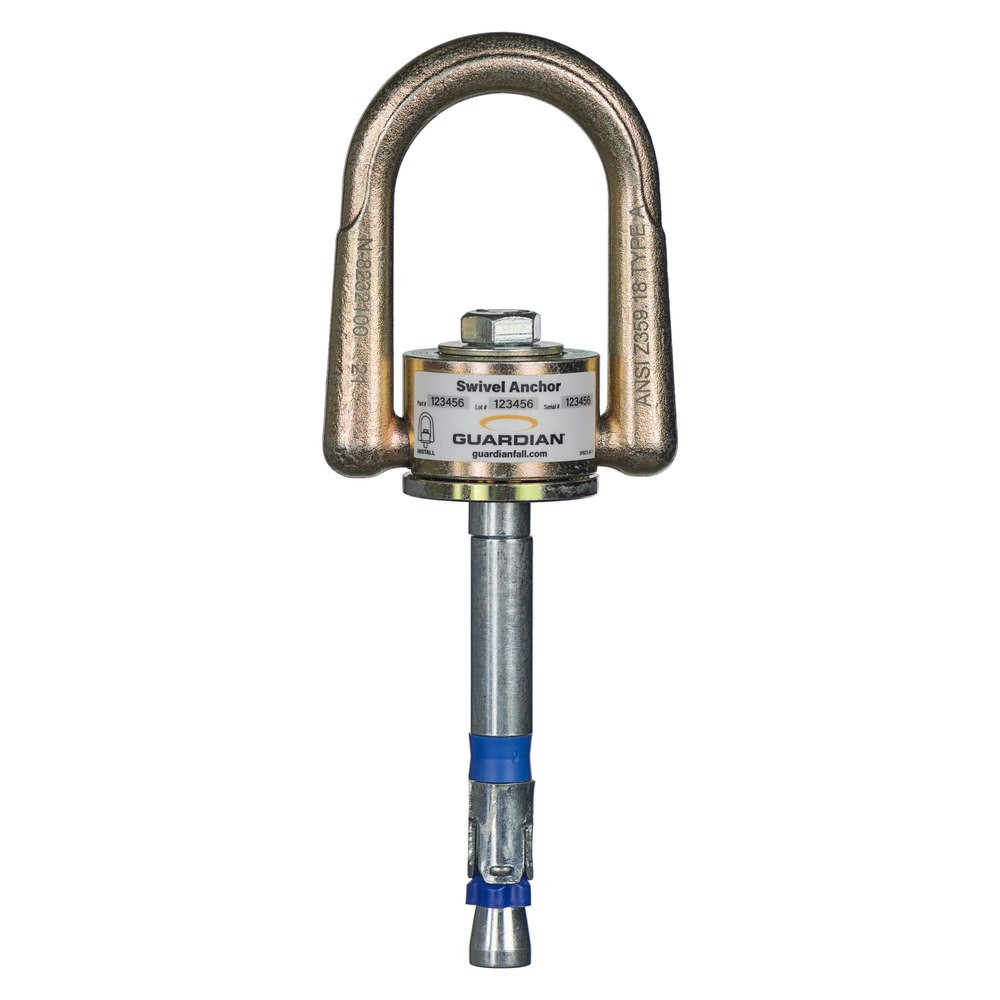

Swivel Anchor, 10,000 lbs, Concrete and Threaded Models
The Guardian 10K swivel anchor puts a 10,000 lbs rotating tie-off point on concrete and threaded connections: the 10010 sets in concrete with a 5/8 x 6 in embedment, and the 10011 threads onto 5/8-11 connections at 4 in length. The swivel head follows the worker, keeping the load aligned instead of side-loading the connector.
Each anchor serves one worker under OSHA 1926.502 and 1910.140, installed per the substrate and torque requirements in the manual.
Who Needs This Product
Swivel anchors solve the alignment problem on fixed anchorage: as the worker moves around the anchor, the head rotates so the D-ring always faces the load. At 10,000 lbs rated strength, the Guardian swivel doubles the standard anchorage number, which engineered systems and two-stage rescue plans appreciate. Choose the model by connection: cast-in or drilled concrete for the 10010, threaded steel bosses for the 10011.
Features
For temporary and permanent applications
For temporary and permanent applications
Single anchor for installations 10k and below
Single anchor for installations 10k and below
360 degrees of movement
360 degrees of movement
Easy and quick installation
Easy and quick installation
For single anchoring point applications and temp
For single anchoring point applications and temporary horizontal lifeline systems
Jobsite-grade construction
Built with the materials and finish quality Guardian applies across its height safety line.
Options in This Family
| SKU | Description | Price |
|---|---|---|
| 10010 | Guardian 10K Swivel Anchor, 5/8 x 6 in, concrete | $115.99 |
| 10011 | Guardian 10K Swivel Anchor, 5/8-11 x 4, threaded | $104.36 |
Technical Specifications
| SKU | 10010 / 10011 |
|---|---|
| Materials | Steel |
| Product weight | 0 lbs |
| Dimensions | 0 in L x 0 in W x 0 in H |
| Standards | ANSI Z359.18-2017, OSHA 1910.140, OSHA 1926.502 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Anchorage strength is the foundation of the system. The structure and anchor must withstand 5,000 lbs per attached worker or maintain a 2:1 safety factor under qualified-person supervision. Verify substrate, fastener, and orientation requirements against the instruction manual before every installation.
Compliance Standards
ANSI Z359.18-2017
This product is compliant with ANSI Z359.18-2017 when used as part of a complete, competent-person verified system.
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.502
This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Installation Overview
Installation must follow the Guardian instruction manual for this anchor. The sequence below is an overview only.
- Inspect first. Check the anchor body, connection point, and hardware before every installation.
- Verify the structure. The supporting structure must meet the strength requirements in the instruction manual.
- Install per the manual. Follow the substrate, fastener, and orientation requirements exactly; fill every required fastener position.
- Verify the connection. Confirm the anchor is fully seated and the connection point is accessible and undamaged.
- Connect the system. Attach a compatible connecting device and verify the complete personal fall arrest system with a competent person.
- Check clearance. Confirm fall clearance below the work area and minimize swing fall hazards before work begins.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the anchor from service for any of the conditions below.
- Cracks, corrosion, or deformation of the body, connection point, or welds.
- Loose, missing, damaged, or worn hardware and fasteners.
- Elongation or wear at the D-ring or connection eye.
- Missing or illegible labels.
- Any evidence the anchor has arrested a fall.
Retirement triggers: any fall event on the anchor, or any condition where the inspector cannot positively verify it is fit for service.
