Polydac Rope Vertical Lifeline Assembly, 30 ft

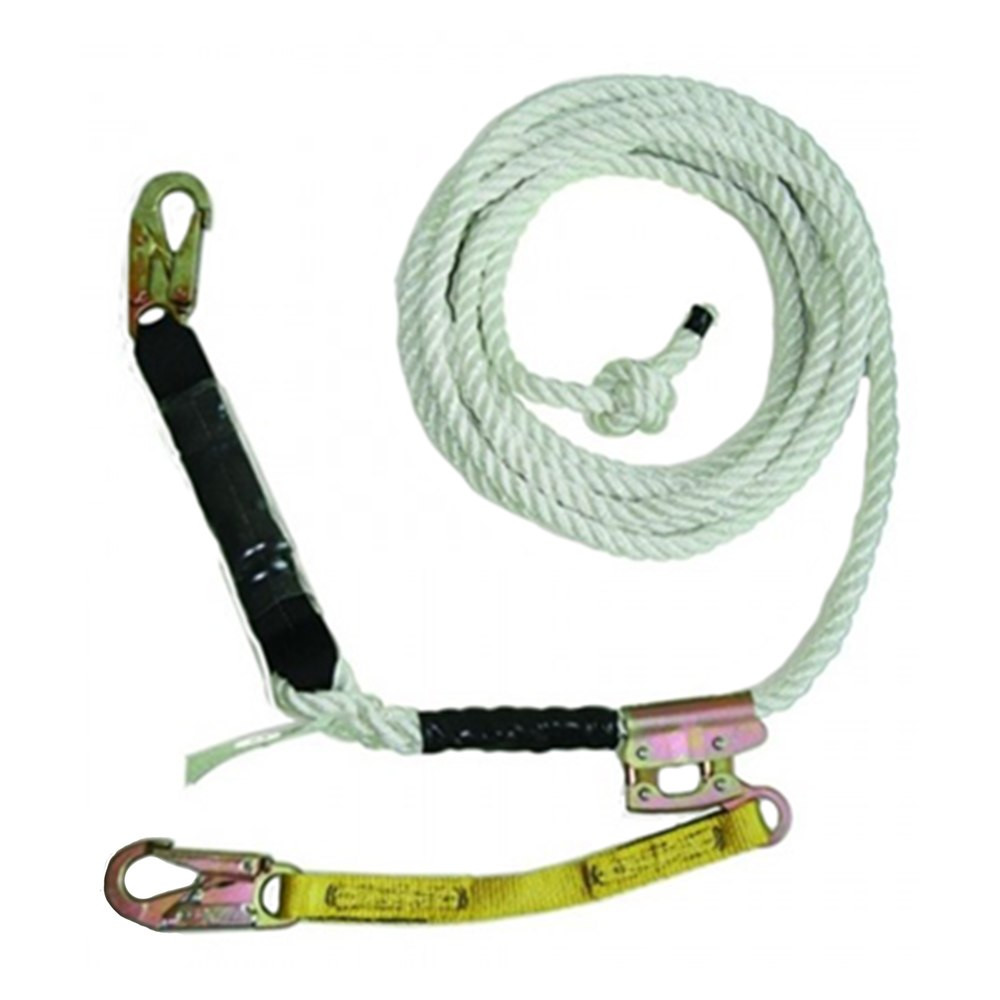

The Guardian 11322 is a 30 ft vertical lifeline assembly built on 3-strand Polydac co-polymer rope: softer in the hand and easier to coil than steel-core lines, while still meeting the same OSHA fall arrest requirements. The assembly arrives complete with a shock pack, a rope positioning device installed on the line, and an 18 in lanyard extension.
Polydac rope combines polyester wear resistance with a supple 3-strand lay that runs smoothly through the grab. The assembly supports workers from 130 to 310 lbs including tools, with a 5,000 lbs tensile strength and a 6 ft maximum free fall.
Who Needs This Product
Crews that handle lifelines all day notice rope construction: the 3-strand Polydac lay coils cleanly, stays flexible in cool weather, and runs smoothly through the positioning device as the worker moves. Like every VLA, the 11322 is the connection between a compliant roof anchor and a full body harness, with the grab traveling the line for slope-wide mobility. If your crews drag lines across abrasive shingle day after day, the poly steel VLA family trades some hand feel for maximum cut resistance.
Features
3-strand Polydac rope
Co-polymer construction is supple, easy to coil, and runs smoothly through the rope grab.
Complete ready-to-use assembly
Shock pack, positioning device, and 18 in lanyard extension arrive installed on the 30 ft line.
Integral shock pack
Limits arrest forces transmitted to the worker during a fall.
Installed positioning device
Travels the line for hands-free repositioning and locks instantly during a fall.
Locking snap hook end
Connects directly to compliant anchor D-rings.
Weather-resistant materials
Polydac rope and galvanized steel hardware stand up to sun and moisture exposure.
Technical Specifications
| SKU | 11322 |
|---|---|
| Length | 30 ft |
| Rope | 5/8 in diameter 3-strand Polydac co-polymer |
| Includes | Snap hook end, shock pack, rope positioning device, 18 in lanyard extension |
| Worker capacity | 130-310 lbs including all clothing, tools, and equipment |
| Tensile strength | 5,000 lbs |
| Maximum free fall | 6 ft |
| Maximum connection length | 36 in combined D-ring, fall arrester, and lanyard extension |
| Materials | Polydac 3-strand rope and galvanized steel |
| Standards | OSHA 1926.502; OSHA 1910.140 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Keep the grab high and the slack out. Position the rope grab as high on the lifeline as practical and remove slack before moving. Maximum free fall is 6 ft, and the combined length of D-ring, fall arrester, and lanyard extension must not exceed 36 in. The anchorage must withstand 5,000 lbs in the permitted loading directions.
Compliance Standards
OSHA 1926.502
Meets construction personal fall arrest system requirements for vertical lifelines.
OSHA 1910.140
Meets general industry personal fall protection system requirements.
ISO 17025 lab tested
Guardian lifelines are tested in an ISO 17025 accredited laboratory.
System compatibility
Use with compliant Type A roof anchors and full body harnesses; a competent person must verify the complete system.
Typical Applications
Use Overview
Use must follow the Guardian VLA instruction manual (1600204). The sequence below is an overview only.
- Inspect first. Check the rope, snap hook, shock pack, rope grab, and extension before every use.
- Connect to the anchor. Attach the snap hook to a compliant roof anchor D-ring and confirm the gate is closed and locked.
- Drape the line. Run the lifeline down the slope past the work area, clear of edges and sharp transitions.
- Connect the worker. Attach the 18 in lanyard extension to the dorsal D-ring of the full body harness.
- Position the grab. Slide the rope grab as high on the line as practical and remove slack.
- Verify clearance. Confirm fall clearance below the work area and minimize swing fall by working in line with the anchor.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the assembly from service for any of the conditions below.
- Rope: cuts, abrasion, glazing, hockling or unlaid strands, chemical damage, or discoloration.
- Shock pack: any evidence of deployment or elongation.
- Rope grab: cracks, corrosion, or a cam that does not lock the rope positively.
- Snap hook: cracks, deformation, or a gate that does not close and lock automatically.
- Extension lanyard and stitching: cuts, fraying, or pulled threads.
Retirement triggers: any fall arrest event, shock pack deployment, rope damage, or any condition where the inspector cannot positively verify the assembly is fit for service.
