Malta X525 Floor-Mounted Overhead Anchor: 25 ft Reach for a Single Worker

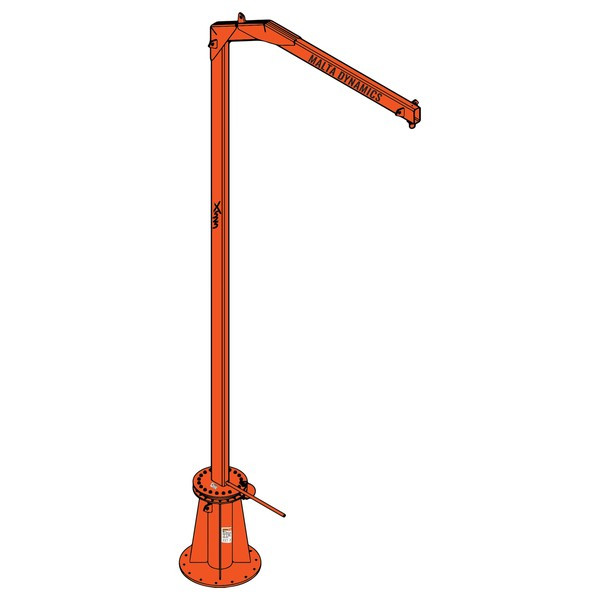

The Malta Dynamics X525 is a floor-mounted overhead anchor that bolts to a concrete floor and delivers a fixed single-worker tie-off point 25 ft overhead, with 9 ft 7 in of horizontal reach. It is the permanent, space-saving choice where a free-standing or towable grabber is not needed, giving a worker reliable overhead anchorage at a fixed bay, station, or maintenance pit.
One worker, a 25 ft overhead anchor with 9 ft 7 in of reach, bolted to a concrete floor in a compact footprint.
$Configure Your X525: Instant Quote
Build your X525 below and see your price update instantly. All prices are FOB Malta, OH. Delivery is available and is quoted separately once you share a delivery address.
Base unit, floor-mounted bolt-down overhead anchor, 25 ft reach, single worker. FOB Malta, OH.
Adds bi-directional winching so an attendant can raise or lower a worker to a safe level, satisfying the OSHA confined space rescue and retrieval requirement. Includes a 3-Way Recovery SRL.
A certified instructor trains your crew on setup, deployment, tie-off, and inspection at your site. Flat rate anywhere in the continental US, instructor travel included.
This is a quote-request item. Build your configuration above, then request your quote, and our team will confirm pricing and lead time. Payment is made by ACH or wire transfer. If delivery is required, provide a ship-to address, and we will quote truck freight, typically ranging from $1,500 to over $10,000, depending on the unit, distance, and current fuel costs. Sales tax is calculated based on your delivery location unless a valid resale certificate is on file.
Who Needs the X525
The X525 is built for single-worker overhead tie-off at a fixed location where the anchor can be permanently bolted to a concrete floor: maintenance bays, wash and service stations, manufacturing cells, and inspection pits. It saves floor space and removes the need to reposition a free-standing unit, while still keeping the tie-off point directly overhead.
Watch: Malta X525 Overhead AnchorSee how a Malta XSeries overhead anchor positions a single tie-off point above the work, with no fixed building anchor overhead.
Features
Floor-mounted bolt-down base
Anchors permanently to a concrete floor for a fixed, space-saving overhead tie-off point.
25 ft overhead height
Sets the anchor high overhead for vehicles, equipment, and tall work at a fixed station.
9 ft 7 in reach
Positions the tie-off point out over the work area from the floor-mounted base.
Single worker rated
One overhead anchor point rated to 310 lbs, including tools and equipment.
Permanent and compact
Frees the floor space a free-standing unit would occupy while keeping the anchor overhead.
USA-made and tested
Built in a USA-based ISO 9001 certified facility and tested to meet and exceed OSHA anchorage requirements.
Bolt the base to a sound concrete floor in accordance with the instruction manual and confirm the anchor is secure before any worker ties off. Complete a daily visual inspection of the base, mast, and anchor point, and pair the X525 with a compatible self-retracting lifeline; SRLs are not included with the unit.
Typical Applications
Maintenance and service bays
A fixed overhead anchor for a worker servicing vehicles or equipment in a dedicated bay.
Manufacturing cells
Permanent overhead tie-off at a workstation or assembly cell.
Inspection pits
Overhead anchorage above a pit or below-grade work area.
Wash and detail stations
A floor-mounted anchor where workers reach over and around large vehicles.
Technical Specifications
| Product | Malta Dynamics XSeries X525 Floor-Mounted Overhead Anchor |
|---|---|
| SKU | X525 |
| Maximum working height | 25 ft (7.62 m) |
| Reach | 9 ft 7 in (2.92 m) |
| Maximum anchor point capacity | 310 lbs |
| Maximum allowable users | 1 |
| Unit weight | Approximately 1,784 lbs |
| Mounting | Floor-mounted, bolts to a concrete floor |
| Self-retracting lifeline | Not included; pair with a compatible SRL |
| Compliance | OSHA fall arrest anchorage; tested in accordance with the ISO 17025 protocol; Declaration of Conformity MDL1PO350 |
| Origin | Made in the USA, ISO 9001 certified facility |
| Warranty | 1 year limited plus 5 year structural warranty (Malta Dynamics) |
Tested and Compliant Anchorage
The X525 is documented to meet OSHA fall-arrest anchorage requirements, supported by a Malta Dynamics Declaration of Conformity (MDL1PO350), with testing performed in accordance with the ISO 17025 protocol. Each unit is manufactured in a USA-based ISO 9001-certified facility. Download the spec sheet, declaration of conformity, instruction manual, and annual inspection form below, and keep the inspection form on file as part of your documented fleet maintenance program.
Product Documents and Submittals
X525 Spec Sheet (PDF)Dimensions, height, reach, capacity, and weight ratings.X525 Declaration of Conformity (PDF)OSHA compliance and ISO 17025 testing statement.XSeries Instruction Manual (PDF)Installation, setup, and safe use.XSeries Annual Inspection Form (PDF)Documented inspection record for fleet maintenance.XSeries Brochure (PDF)Full XSeries mobile grabber lineup and add-on options.Frequently Asked Questions
Compare the Malta X-Series Mobile Grabbers
The X525 is the floor-mounted, single-worker overhead anchor. For a free-standing or towable unit, compare the rest of the Malta XSeries line.
Ready to Configure Your X525?
Build your unit in the instant quote tool above, add the rescue kit or on-site training, then request a delivered quote, and our team will price freight to your address. Floor-mounted overhead protection, made in the USA.
