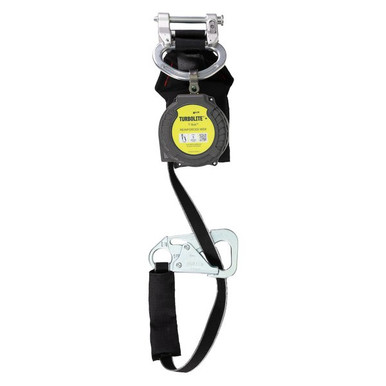

TurboLite+ Single Tie-Back Personal Fall Limiter, Miller 5K locking snap hook, zinc-plated steel
The TurboLite+ single tie-back PFL brings the PLUS family platform to tie-back work: Miller 5K hooks rated for hooking back onto the lifeline itself, so the structure becomes the anchor.
Certified to ANSI Z359.14-2021 Class 1 and rated to 420 lb per OSHA, with no annual factory recertification required. This configuration carries a miller 5k locking snap hook, zinc-plated steel on the lifeline end.
Who Needs This Product
The tie-back rated Miller 5K hooks let the worker wrap the lifeline around a structure and hook back onto the line itself, turning any suitable member into an anchor without a separate strap. This MTL-OTB1-64/9FT configuration (Vectran core web with tie-back rated 5K hook) keeps arrest distances in inches, with no annual factory recertification.
Features
Miller 5K Tie-Back Hooks
The zinc-plated steel Miller 5K locking snap hook carries a 5,000 lb gate load rating, certified for tying back onto the lifeline itself.
Miller 5K locking snap hook, zinc-plated steel
The lifeline end carries a miller 5k locking snap hook, zinc-plated steel, matched to the anchors your crew actually uses.
Quick-Activating Brake
The stainless steel braking mechanism engages immediately, arresting the fall in inches and keeping arrest forces low.
Integral Swivel
The built-in swivel keeps the lifeline from twisting as the worker moves.
Visual Load Indicator
A deployed indicator means the unit has arrested a fall and comes out of service, visible in a two-second check.
Technical Specifications
| SKU | MTL-OTB1-64/9FT |
|---|---|
| Product | TurboLite+ Single Tie-Back Personal Fall Limiter |
| Working length | 9 ft |
| Lifeline connector | Miller 5K locking snap hook, zinc-plated steel |
| Tie-back rating | Miller 5K hooks, 5,000 lb gate load, rated for tie-back use |
| Lifeline | Abrasion-resistant Vectran core webbing |
| Housing | High-impact nylon with integral swivel |
| Capacity | 420 lb per OSHA including all clothing, tools, and equipment |
| Recertification | None required; competent person inspection per manual |
| Packaging | Boxed |
| Country of origin | Mexico |
| Standards | ANSI Z359.14-2021 Class 1; OSHA 1926.502; OSHA 1910.140; CSA |
| Warranty | Miller Limited Lifetime Warranty against defects in workmanship and materials |
Anchor at or above the D-ring. This is a Class 1 device: free fall is limited to 2 ft, and foot-level tie-off is not permitted. Check the load indicator before every use and remove the unit from service after any arrest.
Compliance Standards
ANSI Z359.14-2021 Class 1
Certified as a Class 1 self-retracting device: anchor at or above the dorsal D-ring, maximum 2 ft free fall. Class 1 devices are not rated for foot-level tie-off.
OSHA 1926.502 and 1910.140
Meets OSHA connecting device requirements for personal fall arrest systems in construction and general industry, rated to 420 lb per OSHA.
CSA Z259.2.2
Listed by the manufacturer as meeting CSA self-retracting device standards for Canadian jobsites.
No Annual Recertification
The PLUS family requires no factory recertification; documented competent person inspections per the manual keep the unit in service.
Typical Applications
Setup Overview
- Inspect the housing, lifeline, load indicator, and both connectors before use.
- Connect the unit to the harness dorsal D-ring or to the anchorage, whichever the configuration is designed for.
- Connect the other end to the anchorage connector or dorsal ring and verify both gates lock.
- Check retraction: the lifeline should pay out and retract smoothly with no hesitation.
- Verify the anchor is at or above the dorsal D-ring and fall clearance is adequate before working.
Full use instructions ship with the unit; the specification sheet is linked in the documentation section below.
Inspection and Retirement
Inspect the unit before each use, and have a competent person inspect it on a documented schedule per ANSI Z359.14 and the manual.
- Housing: cracks, distortion, loose fasteners, or a seized swivel.
- Lifeline: pay the web out fully and check for cuts, frays, burns, and abrasion.
- Load indicator: any deployment means immediate removal from service.
- Connectors: gates close and lock; no cracks, corrosion, or distortion.
- Retraction: each lifeline retracts smoothly under light tension with no hesitation.
Retirement triggers: any fall arrest event, deployed load indicator, failed retraction or brake check, or any failed inspection.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Miller MTL-OTB1-64/9FT TurboLite+ Submittals and Documentation
MTL-OTB1-64/9FT Specification Sheet (PDF)Technical data, connectors, and SKU-level UPC information. Miller Fall Protection Catalog (PDF)The full Miller line: body wear, connecting devices, anchors, and rescue. MTL-OTB1-64/9FT SRL Inspection Form (PDF)Printable pass/fail checklist for documented SRL inspections.Compatible and Related Products
- Miller TurboLite+ PFL, Carabiner and Snap Hook. The single-leg 6 and 11 ft workhorse of the line.
- Miller T4500 Titan II Non-Stretch Harness. The harness the PFL rides on.
- Guardian CR5 Class 1 Dual Leg Web SRL, 6 ft. The Guardian alternative twin web SRL.
Choosing PFLs for Your Crew?
Tie-off policy, anchor hardware, and working length decide the right TurboLite+. Confirm your setup with us and we will make sure the right equipment ships together, based on the delivery location.
Call 863-703-4522 to talk to a fall protection specialist.
Miller Limited Lifetime Warranty
Miller Fall Protection products are covered by the Miller Limited Lifetime Warranty. In the manufacturer's words: "We sincerely believe that our fall protection equipment is the best in the world. Our products endure rigorous tests to ensure that the fall protection equipment you trust is manufactured to the highest standards. Miller fall protection products are tested to withstand normal wear and tear, but are not indestructible and can be damaged by misuse."
In the unlikely event that you should discover defects in either workmanship or materials, under the Limited Lifetime Warranty, Miller will repair or replace the product at the manufacturer's expense. If a replacement is necessary and your product is no longer available, a comparable product will be substituted. The Limited Lifetime Warranty does not apply to normal wear and tear or abusive treatment of the product.
Miller is a brand of Protective Industrial Products, Inc. (PIP). Should a product issue surface, contact Fall Protection Distributors, LLC and we will coordinate the warranty claim with the manufacturer.
