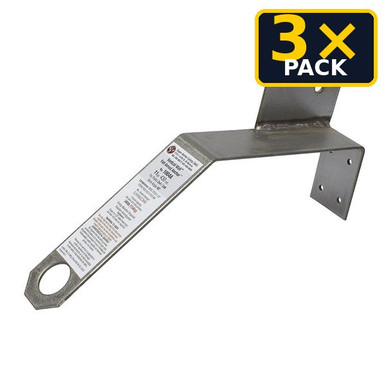

Super Anchor ARS Vertical Wall Permanent Overhead Anchor for Wall Trades
The Super Anchor ARS Vertical Wall anchor is a permanent overhead anchorage for exterior wall trades that is nearly invisible from the ground. Fabricated from 11 gauge 430 stainless steel, it installs at the wall plate and top chord junction with a single bolt and four 16d vinyl sinkers that are supplied with each anchor. It gives siders, window installers, and painters a fall arrest point without needing access to the roof.
Two models cover common roof slopes. The 1004 fits roof pitch up to 7/12, and the 1004-A fits pitch from 7/12 up to 12/12. Both meet ANSI Z359.18-17 Type D with a 5,000 pound minimum breaking strength, are rated for one worker, and can be painted for minimum visual effect.
This product is sold as a 3-pack.
Who Needs This Product
The ARS Vertical Wall anchor is a permanent fall arrest anchor for siders, window installers, and painters who work on exterior walls and need an overhead tie-off without roof access. Choose the model that matches the roof pitch. Complete the system with a full-body harness, a connecting device, and a competent-person layout.
Features
Overhead wall anchor
Provides fall arrest while working on the wall, with no access to the roof required.
Nearly invisible
The low profile design is nearly invisible from the ground and can be painted for minimum visual effect.
Two pitch models
The 1004 fits pitch up to 7/12; the 1004-A fits 7/12 up to 12/12.
Single bolt install
Installs at the wall plate and top chord junction with one bolt and four supplied 16d sinkers.
11 gauge 430 stainless
Corrosion resistant construction rated to a 5,000 lb minimum breaking strength.
Built for wall trades
Ideal for siders, window installers, and painters.
This anchor is a fall arrest anchorage, not a complete system. Match the model to your roof pitch, install onto framing capable of 5,000 lb, use a full-body harness with a connecting device, and confirm fall clearance. Run the Fall Protection Calculator below before you tie off.
Compliance Standards
ANSI Z359.18-17 Type D
American National Standard for anchorage connectors, Type D.
OSHA 29 CFR 1910.140
Federal fall arrest system requirements.
Typical Applications
How to Install the ARS Vertical Wall Anchor
Follow the Super Anchor Safety instruction manual. The sequence below is an overview only.
- Select the model. Use the 1004 for pitch up to 7/12 or the 1004-A for pitch 7/12 up to 12/12.
- Locate the junction. Position at the wall plate and top chord junction per a competent-person layout.
- Fasten. Install the single bolt and drive the four supplied 16d vinyl sinkers.
- Finish. Paint the anchor if a minimum visual effect is desired.
- Verify. Confirm the connection point is accessible, connect your PPE, and confirm fall clearance.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least annually. Remove the product from service for any condition below.
- Anchor body: cracks, deformation, corrosion, or elongated holes.
- Coating: worn or damaged galvanizing, dacromet, or powder coat at the connection point.
- Fasteners and flashing: loose, missing, backed-out, or leaking hardware.
- D-ring or connection point: burrs, sharp edges, or excessive wear.
- Labels: illegible or missing product identification.
Retire the anchor immediately after any fall-arrest event, or if any inspection point fails.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| SKU | 1004 (up to 7/12), 1004-A (7/12 to 12/12) |
|---|---|
| Manufacturer Part Number | 1004 / 1004-A |
| Type | Permanent overhead wall anchor |
| Material | 2 in width, 11 gauge 430 stainless steel |
| Capacity | 1 person |
| Min breaking strength | 5,000 lb (22 kN) |
| Max arrest force | 3,600 lb (16 kN) |
| Max user weight | 310 lb (140 kg) including tools and equipment |
| Fasteners | Single bolt plus four 16d vinyl sinkers, included |
| Standards | ANSI Z359.18-17 Type D; OSHA 1910.140 |
| Warranty | Super Anchor 5-year permanent anchor warranty; see Warranty tab |
Frequently Asked Questions
Super Anchor ARS Vertical Wall Anchor Submittals and Documentation
Vertical Wall Anchor Manual 2025 (PDF)Use, installation, capacity, and inspection. Warranty and Compliance Statement (PDF)Manufacturer warranty and standards compliance.Related Super Anchor Products
Protecting Wall Trades at Height?
Roof pitch and worker position determine the right overhead anchor and fall clearance. Confirm your application with us and we will help match the correct Vertical Wall model and PPE.
Call 863-703-4522 to talk to a fall protection specialist.
Super Anchor Safety Manufacturer Warranty
Super Anchor Safety (SAS) warrants to the purchaser that all products are free from defect in material and workmanship at the time of shipment. This warranty is limited to product replacement for a period of one (1) year from the date of installation or use by the owner, provided that this period shall not exceed two (2) years from the date of shipment. This warranty only covers defects in material and workmanship. It does not cover conditions resulting from normal wear, neglect, abuse, or accident. This product warranty does not cover oxidation of zinc, dacromet, or powder coatings used on permanent and temporary anchors that results from connector abrasion unless the coating can be shown to be defective at the time of purchase. This warranty is non-transferable. Any unused defective product will be replaced at no charge by returning the product to Super Anchor Safety or to the distributor the product was purchased from.
Permanent Anchor Warranty
Super Anchor Safety warrants to the purchaser that all anchors sold as a permanent fixture with Hot Dip Galvanizing, Stainless Steel, and Thermo-Plastic finishes are fully warranted against failure due to defects in materials or workmanship for a period of five (5) years from the date of initial installation. SAS does not warranty the installation or flashing system used to waterproof the anchors. The SAS factory warranty is void if the product has been modified or has not been used in accordance with SAS specifications and instructions for that product. Anchors that have been removed from service due to re-roofing or remodel of the structure they were originally attached to must be inspected by an SAS factory representative or a competent person before being reinstalled.
See the Super Anchor Warranty and Compliance Statement (PDF) for the full manufacturer document.
