Super Anchor 1050-G HLL Rigging Kit, Galvanized: Complete Horizontal Lifeline Termination Hardware
The Super Anchor 1050-G is the factory-engineered rigging package for CRA horizontal lifeline systems built on No. 1090 or 1090-S loop top anchors. One kit terminates a complete HLL run: the turnbuckle and spring energy absorber rig the A-end, a factory or field swaged eye thimble rigs the B-end, and stainless couplers, O-rings, thimbles, and cable clamps tie the whole line together. Add No. 1055-X wire rope cut to your span and the run is ready to tension.

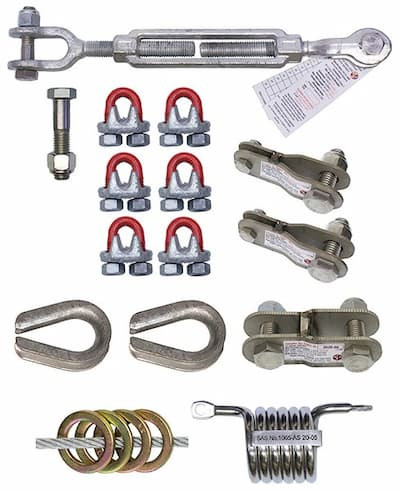

What is included: 4ea No. 5010-SM O-Rings, 1ea No. 1058 Turnbuckle with 2ea 5/8"x3.0" bolts, 2ea No. 1087-SC Absorber Couplers with 2ea 3/8"x1.0" bolts and 1ea 5/8"x2.0" bolt, 1ea No. 1065-AS Spring Energy Absorber, 1ea No. 1081-S Coupler with 1ea 5/8"x2.0" bolt and 1ea 5/8"x2-1/4" bolt, 2ea No. 1057 3/8" Eye Thimbles, 6ea No. 1056 3/8" Cable Clamps, and 1ea 4-Way Top 9/16"x3.0" bolt. Wire rope is ordered separately as No. 1055-X.
Who Needs This Product
Commercial roofing contractors, plant maintenance teams, and installers building permanent horizontal lifelines on CRA anchor posts with loop tops. The 1050-G removes the guesswork of sourcing turnbuckles, absorbers, couplers, thimbles, and clamps individually: every component is specified, sized, and bolted together per the CRA HLL Rigging Manual, so the crew in the field rigs the A-end and B-end exactly the way the engineering assumes. For CRO anchors with No. 1093 loop tops, order the 1050-GC version instead.
Features
Complete A-End and B-End Termination
The kit rigs the A-end with the No. 1058 turnbuckle and No. 1065-AS spring energy absorber, and the B-end with an eye thimble termination, exactly as specified in the SAS rigging manual.
304 Stainless Spring Energy Absorber
The No. 1065-AS limits forces on the system in a fall, with a tension indicator gauge for setting approximately 250 to 300 lb of line tension and a maximum deployment length of 52".
Heavy Duty Galvanized Turnbuckle
The No. 1058 has a 3/4"x14" frame that opens to 32.0" and closes to 21.0", providing 11.0" of cable tension adjustment during installation and annual service.
Stainless Coupler Links
The No. 1081-S couples the eye thimble to loop tops and 4-way tops, and two No. 1087-SC couplers connect the absorber to the turnbuckle and thimble, all in 11ga 304 stainless with supplied bolts and lock nuts.
Field Swage Hardware Included
Two No. 1057 eye thimbles and six No. 1056 cable clamps make both field swages: 3 clamps per swage, saddles on the live side, torqued to 45 ft-lb with a 10.0" dead side tail.
Pass-Thru Compatible O-Rings
Four No. 5010-SM O-Rings install on the cable before clamping so travelers pass CRA-PT intermediate anchors without disconnecting.
Technical Specifications
| Part Number | 1050-G (for CRA anchors with No. 1090/1090-S loop tops) |
|---|---|
| Turnbuckle | No. 1058 galvanized, 3/4"x14" frame, 32.0" max open, 21.0" closed, 11.0" max adjustment |
| Energy Absorber | No. 1065-AS spring type, 304SST, 52.0" max deployment, tension gauge for 250-300 lb set-up tension |
| Couplers | 1ea No. 1081-S and 2ea No. 1087-SC, 11ga 304SST with sst bolts and lock nuts |
| Eye Thimbles | 2ea No. 1057 3/8" galvanized |
| Cable Clamps | 6ea No. 1056 3/8" galvanized (3 per swage, 45 ft-lb torque) |
| O-Rings | 4ea No. 5010-SM for pass-thru intermediate anchors |
| HLL Cable (sold separately) | No. 1055-X 3/8" 7x19 galvanized wire rope, 14,000 lb tensile, cut to length |
| System Capacity | Fall arrest 2 persons per run; fall restraint 4 persons per run; 310 lb user weight |
| System Performance | 6 ft max free fall, 1,200 lb average peak force, 5,000 lb minimum tensile strength |
| Run Length | 120 ft typical maximum with intermediate anchors spaced 20 to 30 ft |
| Kit Weight | 13.5 lb |
| Compliance | ANSI Z359.1-07, OSHA 1926.502 |
HLL systems must be installed per the SAS CRA HLL Rigging Manual and specified by a qualified or competent person. Cable clamp saddles must sit on the live side only, torqued to 45 ft-lb, and turnbuckle and coupler bolt threads must penetrate lock nuts a minimum of 1/8". Workers attached to an HLL are required to wear a personal energy absorber or use an SRL with an internal energy absorbing function. If the HLL is subjected to a free fall, remove it from service and tag it DO NOT USE.
Compliance Standards
OSHA 1926.502
Horizontal lifelines must be designed, installed, and used under the supervision of a qualified person as part of a complete personal fall arrest system.
ANSI Z359.1-07
All components specified in the CRA HLL Rigging Manual comply with ANSI Z359.1-07 requirements.
OSHA 1910.140
General industry anchorage criteria of 5,000 lb or 2x intended load, met by CRA anchor structures this kit terminates to.
Qualified Person Design
SAS third-party engineering specifies HLL run lengths up to 130 ft where PT anchor spacing does not exceed 30 ft; 120 ft runs are typical.
Typical Applications
Installation Overview
Summary of the SAS rigging sequence; the CRA HLL Rigging Manual (02-2021) governs installation.
- Rig the B-end first: bolt the No. 1081-S coupler narrow end to the CRA loop top or 4-way, attach the factory swaged eye thimble to the wide end, and torque lock nuts with 1/8" minimum thread penetration.
- Slide the 4 No. 5010-SM O-Rings onto the cable before clamping if the run uses pass-thru intermediates.
- Feed the cable through all PT intermediate anchor tops toward the A-end.
- Build the A-end field swage: pass the cable through an eye thimble, set 3 No. 1056 clamps with saddles on the live side at the specified spacing, and torque each nut to 45 ft-lb.
- Assemble the A-end chain: loop top to turnbuckle (5/8"x3.0" bolts), turnbuckle to No. 1087-SC coupler, coupler to the No. 1065-AS spring absorber, absorber to the second 1087-SC, then to the eye thimble.
- Measure a 10.0" dead side tail, cut surplus cable, and wrap or shrink-tube the cut end.
- Tension the line with the turnbuckle until the absorber tension gauge deploys fully per Fig. 13 of the manual, then re-check all clamps.
- Field swage a second time after tensioning and record the installation for annual inspection.
Inspection and Retirement
Inspect before installation and each use, with documented annual inspections. Remove the anchor from service when any of the following apply:
- Spring absorber shows deployment beyond the set-up gauge reading or visible stretch
- Cable clamp nuts under 45 ft-lb torque or saddles installed on the dead side
- Turnbuckle bent, corroded, or without 1/8" bolt thread penetration through lock nuts
- Wire rope shows broken wires, kinks, birdcaging, or corrosion
- Couplers or O-rings deformed, cracked, or missing
- Eye thimbles collapsed or cable pulled from the swage
- Anchor posts loose, bent, or with damaged loop tops
- The system arrested a fall or was struck by falling material
Tag anchors removed from service to prevent further use until inspected by a qualified or competent person.
