1126-6A CRZ-6A Z-Purlin Loop Top Anchor

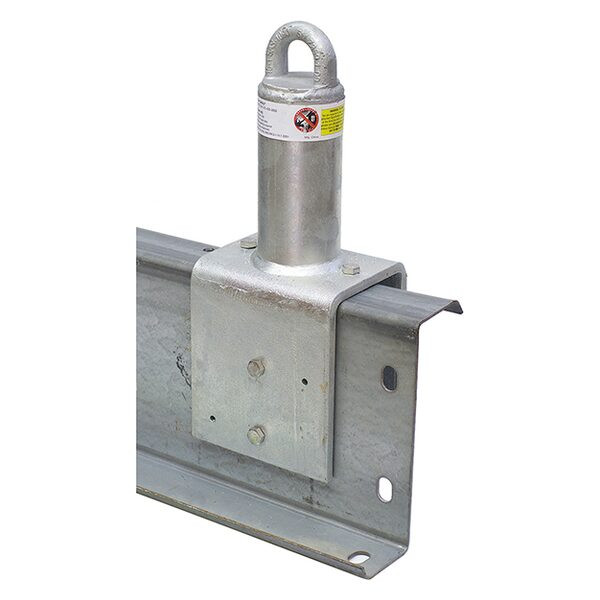

The Super Anchor 1126-6A, part name CRZ-6A, is a permanent bolt-thru roof anchor built for the standard Z-purlins used in steel and commercial building structures. A No. 1090 cast steel loop top rated at 10,000 lb tensile strength sits on a 6 inch, foam-filled, hot-dip galvanized 3.0 inch Schedule 40 riser, and two 3/8 inch steel legs straddle the purlin so stainless steel bolts pass through the purlin web. The anchor carries a 5,000 lb minimum strength in any direction of applied load, and the loop top sits parallel with the ridge, which is the A orientation.
Let us provide a free custom quote for your Permanent Horizontal Lifeline project. HLL Quote Request Form
What is included: one CRZ-6A anchor with the factory stainless steel bolt pack and lock nuts. The Z-purlin, wood purlin blocking, Master Flash roof flashing, and lifeline rigging shown in photos are sold separately, and the roofing contractor supplies flashing fasteners and caulking. Use it as a single-person tie-off point, a Super Anchor horizontal lifeline end or intermediate anchor, or a window washing anchor. Compliant with OSHA 1926.502 and ANSI Z359.18-17 Type A/T, with third-party engineering by DH Glabe and Associates.
Who Needs This Product
The CRZ-6A is for metal building contractors, roofers, facility owners, and safety engineers who need a permanent anchorage on a purlin-framed roof where there is no deck or slab to bolt a base plate to. Pre-engineered steel buildings, warehouses, and agricultural and industrial structures frame their roofs with Z-purlins, and the CRZ legs clamp that purlin with a bolt-thru connection instead of relying on the roof panel. One anchor serves one worker at up to 310 lb, including tools and equipment, for fall arrest or fall restraint. The same loop top accepts Super Anchor horizontal lifeline end hardware and serves as a window washing anchor. Every worker wears a full-body harness with an energy-absorbing lanyard or self-retracting lifeline that meets current OSHA and ANSI standards.
Features
Bolt-thru purlin attachment
Two 3/8 inch steel legs straddle the Z-purlin, and 3/8 inch stainless steel bolts pass through both legs, the purlin web, and the blocking for a very strong connection point.
10,000 lb cast steel loop top
The No. 1090 Q235 cast loop top has a 1-3/8 inch inside diameter and accepts snaphooks, carabiners, and SAS HLL end anchor components.
Fits standard Z-purlins
Standard models fit a maximum top flange width of 3-3/4 inches with a minimum purlin web depth of 6 inches. The leg inside dimension is 4 inches and the nominal leg width is 6 inches.
Foam-filled galvanized riser
Polyurethane foam filling, a stainless threaded vent hole plug, and an ASTM 123 hot-dip galvanized finish protect the Schedule 40 riser, rated for -30 to +130 degrees F.
Parallel loop top for HLL layouts
The A orientation sets the loop top parallel with the ridge. Super Anchor offers A and B orientations so the loop lines up with the direction of the horizontal lifeline.
Stock part with bolt pack
The 1126-6A is the stock model in the CRZ family and ships with the stainless steel attachment bolts and lock nuts, plus a PID specification label on the riser.
The purlin is the anchorage, so the structure must be approved first. The supporting structure must hold 5,000 lb or 2 times the intended fall protection load, and anchor locations are specified by the project architect, engineer, or a qualified person. Use only the factory-supplied stainless steel attachment bolts and lock nuts. Wood purlin blocking and Master Flash are not supplied with the anchor, and the maximum on-site proof load is 2,500 lb. Never attach two connectors to one loop top.
Compliance Standards
OSHA 1926.502 / 1910.66
Construction anchorage criteria and building maintenance requirements, as listed on the CRZ installation guide.
ANSI Z359.18-17 Type A/T
Anchorage connector standard listed for CRZ loop top anchors; the Intertek CRA lab report is available from the manufacturer upon request.
CSA Z259.15:22 Type A/T
Canadian anchorage connector standard listed on the 2024 Super Anchor commercial catalog page for CRZ loop top anchors.
ANSI/IWCA I-14.1
Window washing anchor requirements, including engineering analysis of the supporting member, annual inspection, and 10 year recertification.
Typical Applications
How to Use
The full procedure with figures is in the CRZ Z-Purlin Anchor Installation Guide linked below. The essentials:
- Confirm the structure. The project architect, engineer, or a qualified person approves the purlin and the anchor location for the intended fall protection load.
- Attach to the top flange. Set the anchor over the purlin and attach it to the purlin top flange with the 3/8 x 1-1/4 inch stainless steel bolt and lock nut.
- Insert the blocking. Place the No. 2049 pre-drilled wood block between the anchor legs and align it with the factory pre-drilled holes; re-drill if the holes do not line up.
- Secure the blocking. Fasten the block to the B-side leg with two 1-1/2 inch WS screws. If the block does not fit tightly against the purlin web, install backer material to fill the margin.
- Drill the purlin. Drill 3/8 inch attachment bolt holes through the purlin, using the A-side leg bolt holes as a template.
- Bolt through. Insert the 3/8 x 5 inch stainless steel bolts through the legs, purlin, and blocking, and secure them with the lock nuts.
- Flash the riser. Seal the roof penetration with the No. 2050 Master Flash 10 x 10 inch EPDM boot, and secure the collar with a stainless steel hose clamp.
- Inspect before use. A qualified or competent person inspects and certifies the installation before anyone connects to the loop top.
Inspection and Retirement
Inspect the anchor before installation and before each use, and keep documented annual inspections as part of the building owner's fall protection maintenance plan. Remove the anchor from service when any of the following conditions apply:
- The riser or legs are bent or deformed.
- Weld cracks are present.
- Rust does not clean up with a cold zinc coating.
- Attachment bolts or lock nuts are missing or loose; do not use the anchor until the installation is corrected.
- The PID label or vent hole plug is missing and cannot be replaced.
- The anchor was subjected to a free fall, or the supporting purlin or structure is damaged.
Tag any anchor removed from service to prevent further use until a qualified or competent person inspects it. Window washing anchors require annual inspection by a qualified person and recertification at least every 10 years by a registered professional engineer.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | Permanent bolt-thru Z-purlin roof anchor, loop top, parallel (A) orientation |
|---|---|
| SKU | 1126-6A, part name CRZ-6A, stock part |
| Loop Top | No. 1090 Q235 cast steel, 1-3/8 inch inside diameter, 10,000 lb tensile strength rating |
| Riser | 6 inch height, 3.0 inch O.D. Schedule 40 pipe with 0.203 inch wall, polyurethane foam filled, stainless threaded vent hole plug |
| Legs | 3/8 inch A-36 or Q235 steel, 4 inch leg inside dimension, 6 inch nominal leg width |
| Finish | Hot-dip galvanized, ASTM 123 |
| Attachment Bolts | 3/8 inch 18-8 stainless steel bolts and lock nuts, supplied: 3/8 x 1-1/4 inch flange bolt and 3/8 x 5 inch through bolts |
| Purlin Fit | Standard Z-purlins with a maximum top flange width of 3-3/4 inches and a minimum web depth of 6 inches |
| Minimum Strength | 5,000 lb minimum in any direction of applied load |
| Proof Load | 2,500 lb maximum |
| Design Load | 1,250 lb at a 4 to 1 design factor |
| User Capacity | 1 person at 310 lb maximum, including tools and equipment; fall arrest and fall restraint |
| Service Radius | 360 degrees |
| Temperature Rating | -30 to +130 degrees F |
| Product Weight | 15 lb |
| Compliance | OSHA 1926.502 and 1910.66; ANSI Z359.18-17 Type A/T and Z359.1-07; CSA Z259.15:22 Type A/T; ANSI/IWCA I-14.1 window washing; third-party engineering by DH Glabe and Associates |
| Not Included | No. 2049 wood purlin blocking, No. 2050 Master Flash, flashing fasteners, and caulking |
| UPC | 786158112603 |
| Warranty | Super Anchor 5 year Permanent Anchor Warranty for hot-dip galvanized anchors; see the Warranty tab |
