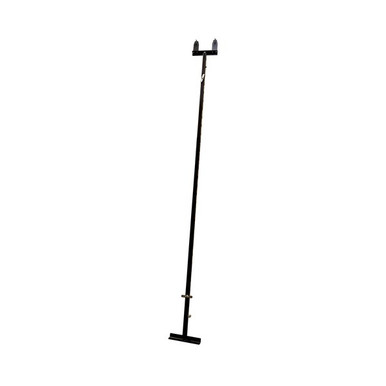

Tie Down Telescoping Brace for TranzPorter Ladder Hoist Track over 28 ft
The 60005 telescoping brace is the support Tie Down requires on any TranzPorter track assembly longer than 28 ft. It cross ties to the track rungs at the locations in the manual's track section chart and stiffens the run so the carriage tracks straight up to the 44 ft maximum.
Order it with any extra 8 ft track sections (10091) when you take a 28 ft kit to 36 ft or 44 ft. It is part of the 44 ft TranzPorter kit configurations.
PayPal Pay Later availability and terms are set by PayPal at checkout. Ordering this with a machine or hoist kit? APPROVE business financing can cover the whole order; the sample payment is shown on that product page.
Who Needs This Product
Any TranzPorter owner running more than 28 ft of track. Three story residential, commercial eaves and supply yard delivery hoists all need the brace once they go past the kit height.
Features
Required equipment above 28 ft
The TranzPorter manual requires the telescoping brace on track assemblies over 28 ft.
Telescoping adjustment
Adjusts to the chart distance between the building and the track for each height.
Rung cross tie
Ties to the track rungs the chart calls out (for example the 11th and 13th rungs at 32 ft).
Supports 44 ft runs
Rated for the 44 ft maximum track height.
Pairs with extra track
Order with 8 ft sections (10091) to extend a 28 ft kit.
Made in the USA
Built by Tie Down in Georgia.
Follow the track section chart. The brace location changes with track length: the manual lists the base to building distance and the rungs to cross tie for every height from 28 ft to 44 ft. Never run track over 28 ft without the brace and never exceed 44 ft.
Compliance Standards
OSHA 29 CFR 1926.552
Material hoists; use only manufacturer parts and follow the Tie Down manual.
OSHA 29 CFR 1926.416
Keep hoist track 10 ft from overhead power lines.
Tie Down OEM part
Genuine Tie Down Engineering component for the TranzPorter and TranzVolt hoist lines.
Made in the USA
Built by Tie Down in Georgia; 90 day limited warranty (6 months on TranzVolt G2 equipment).
Typical Applications
How to Use
Follow the Tie Down instruction manual. The sequence below is an overview only.
- Assemble the full track on the ground with the extra sections pinned.
- Find the row in the chart for your building height.
- Attach the brace at the rungs listed and extend it to the base distance shown.
- Raise the track with two people and set the brace against the building.
- Tie the top bracket to the roof before running the carriage.
Inspection and Retirement
Inspect before each use, with a documented competent person inspection at least annually. Remove the system from service for any of the conditions below.
- Brace tubes: bends, cracks or corrosion.
- Telescoping lock: pins or hardware that will not hold.
- Cross tie hardware: missing or worn.
- Contact pads: damage that would mar the wall or slip.
- Labels: missing warnings.
Remove the system from service immediately after any fall arrest event and have it inspected by a competent person before it returns to use.
Product Videos
Tall track setup and bracing.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Part number | 60005 (Tie Down Engineering, USA) |
|---|---|
| Type | Telescoping brace for TranzPorter hoist track |
| Required | Track assemblies over 28 ft |
| Maximum track | 44 ft |
| Mounting | Cross tie to track rungs per the manual chart |
| Fits | TranzPorter TP250 and TP400 |
| Warranty | Tie Down 90 day limited warranty |
Frequently Asked Questions
Tie Down 60005 Submittals and Documentation
TranzPorter Owner's Manual, Part 1 (PDF)Track section chart with brace locations by height. TranzPorter Sell Sheet (PDF)Kit and extension overview.Compare the Tie Down Ladder Hoist Line
Every Tie Down hoist kit ships with the 4 ft base track and three 8 ft track sections for a 28 ft reach, and extends to 44 ft with extra track. Pick by capacity, power source and platform.
