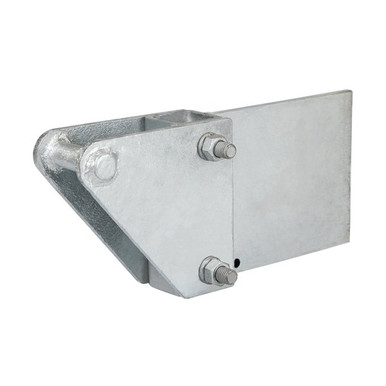

FallTech 6160512W 12 in weld-on ladder anchor bracket in galvanized structural steel
FallTech

FallTech 6160512W 12 in Weld-On Ladder Anchor Bracket

(No reviews yet) Write a Review
$349.00
Brand:
FallTech
SKU:
6160512W
Availability:
Usually ships in 1 business day
Shipping:
Calculated at Checkout
Adding to cart… The item has been added
American Express Icon American Express Icon Discover Icon Discover Icon Mastercard Icon Mastercard Icon PayPal Icon PayPal Icon Visa Icon Visa Icon
FallTech Ladder Anchorage

FallTech 6160512W 12 in Weld-On Ladder Anchor Bracket

Fully galvanized structural steel anchor bracket that welds onto steel structures above fixed ladders, providing a permanent overhead tie-off point for personal fall arrest systems.

The 12 in overhead offset positions the anchor eye out over the climbing path, optimal for harness dorsal D-ring attachment with an SRL, and the bracket plate can be modified to attach to various structure shapes.

FallTech 6160512W 12 in weld-on ladder anchor bracket in galvanized structural steel
12 inOverhead Offset
3,600 lbStatic Strength
310 lbANSI Capacity
425 lbOSHA Allowable
Weld-OnPermanent Install
GalvanizedStructural Steel
1 WorkerRated Users
OSHA1926.502 / 1910.140

A Permanent Anchor Where the Ladder Meets the Roof

The most dangerous moves on a fixed ladder are the first and last ones, where the climber transitions on and off the structure. A welded anchor bracket above the ladder gives the climber a compliant overhead tie-off point for an SRL before the transition starts.

Per the FallTech documentation, the anchor provides 3,600 lb minimum static strength, supports one user up to 310 lb under ANSI and up to 425 lb allowable under OSHA, and meets OSHA 1926.502 and 1910.140 regulations, documented in Declaration of Conformity S0220035.

Key Features

Weld-On Installation

Quickly and easily welds onto steel structure for permanent installation by a qualified welder.

12 in Overhead Offset

Positions the anchor eye over the climb path, optimal for dorsal D-ring attachment with an SRL.

Galvanized Steel

Fully galvanized and powder-coated structural steel for durable outdoor performance.

Modifiable Plate

The bracket plate can be modified to attach to various structure shapes per the manual.

Personal Fall Arrest Rated

For use in personal fall arrest applications with 3,600 lb minimum static strength.

Documented Conformity

Covered by FallTech Declaration of Conformity S0220035 and the ladder stanchion anchor manual.

⚠

Welded anchors are only as good as the weld and the structure. Installation must be performed by a qualified welder on structure verified by a qualified person, following the FallTech manual. Inspect the weld and galvanizing before each use.

Compliance Standards

OSHA 1926.502

Meets construction fall protection anchorage requirements per the FallTech DoC S0220035.

OSHA 1910.140

Meets general industry personal fall protection requirements for fixed ladder tie-off.

ANSI Capacity

One user up to 310 lb combined weight under ANSI; up to 425 lb allowable under OSHA.

Not CSA Listed

FallTech does not list CSA certification for this anchor; specify a CSA-certified anchor for Canadian jurisdictions.

Typical Applications

Fixed ladder topsOverhead tie-off for the transition at the top of fixed ladders.
Tanks and silosPermanent anchor points on welded steel vessels.
Structural steelTie-off points above platforms, walkways, and roof access points.
SRL programsOverhead anchorage that keeps an SRL at or above the D-ring.

How to Use

Follow the FallTech MANC29 instruction manual. The sequence below is an overview only.

  1. Verify the structure. A qualified person confirms the steel can support the anchorage loads at the installation point.
  2. Weld the bracket. A qualified welder installs the bracket per the manual, then the weld is inspected and the coating repaired.
  3. Connect and climb. Attach an SRL or other connecting device to the anchor eye and connect to the dorsal D-ring before the transition.

Inspection and Retirement

Inspect before each use following the MANC29 manual. A competent person must inspect the anchor at least annually.

  • Weld: cracking, undercut, or corrosion at the joint.
  • Bracket: bends, cracks, and elongation of the anchor eye.
  • Coating: galvanizing intact; treat any rust immediately.
  • Marking: anchor identification legible.

Retirement triggers: any arrested fall, weld defects, deformation, or section loss from corrosion. Remove the anchor from service and replace it before further climbs.

Fall Protection Distributors logo Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

Type12 in weld-on ladder anchor bracket
SKU6160512W
Overhead offset12 in
Static strength3,600 lb min.
Capacity (ANSI)One user up to 310 lb
Capacity (OSHA)Allowable up to 425 lb
MaterialGalvanized and powder-coated structural steel
InstallationWeld-on, permanent
StandardsOSHA 1926.502 and 1910.140, DoC S0220035
WarrantyFallTech 2-year limited warranty against defects in materials and workmanship

Frequently Asked Questions

What is the 12 in offset for?
The 12 in overhead offset positions the anchor eye out over the ladder climbing path, which FallTech notes is optimal for harness dorsal D-ring attachment, keeping an SRL aligned above the climber instead of against the structure.
What are the strength and capacity ratings?
The anchor provides 3,600 lb minimum static strength and supports one user up to 310 lb under ANSI or up to 425 lb allowable under OSHA, per the FallTech specifications and Declaration of Conformity S0220035.
Who can install a weld-on anchor?
A qualified welder must perform the installation on structure verified by a qualified person, following the FallTech MANC29 manual. After welding, inspect the joint and repair the protective coating before use.
Can the bracket be adapted to my structure?
Yes. FallTech states the bracket plate can be modified to attach to various structure shapes. Any modification must follow the manual and be approved by a qualified person.
Is there a bolt-on alternative?
Yes. FallTech offers bolt-on ladder stanchion anchors that clamp to ladder rungs without welding, available in 5 in and 12 in offsets, which we carry as the bolt-on ladder stanchion anchor product.
Is this anchor CSA certified?
No. FallTech documents OSHA 1926.502 and 1910.140 conformity for this anchor under declaration S0220035 but does not list CSA certification, so specify a CSA-certified anchor for Canadian jurisdictions.
What connecting device should I use with it?
An overhead anchor with a 12 in offset is well suited to a self-retracting lifeline connected to the dorsal D-ring, and it also accepts lanyards and vertical lifeline systems rated for single-user personal fall arrest.

FallTech 6160512W Submittals and Documentation

MANC29 Ladder Anchor Instruction Manual (PDF)Installation, use, and inspection procedures for ladder stanchion anchors, covering the 6160512 family. 6160512W Declaration of Conformity (PDF)OSHA 1926.502 and 1910.140 conformity certification, declaration S0220035. Ladder Stanchions Spec Sheet (PDF)FallTech ladder stanchion anchor family specifications and ordering guide.
