FallTech welded-eye post anchor for wood, concrete, and steel
FallTech

FallTech Post Anchor, Welded Eye, Wood/Concrete/Steel

(No reviews yet) Write a Review
$463.50 - $526.00
Brand:
FallTech
SKU:
780PA
Availability:
Usually ships in 1 business day
Shipping:
$150.00 (Fixed Shipping Cost)
Adding to cart… The item has been added
American Express Icon American Express Icon Discover Icon Discover Icon Mastercard Icon Mastercard Icon PayPal Icon PayPal Icon Visa Icon Visa Icon
FallTech Anchorage Connectors

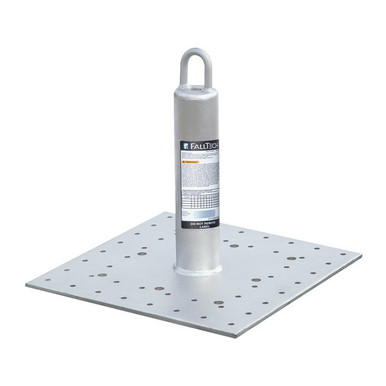

FallTech Post Anchor with Welded Eye for Wood, Concrete, and Steel

The FallTech Welded-Eye Post Anchor mounts to wood, concrete, or steel to raise the tie-off point above the working surface, reducing free fall and keeping the lifeline clear of the deck. Its versatile base suits multiple substrates. Choose the 12 in or 18 in post height.

It is certified to ANSI Z359.18-2017, rated for 5,000 lb (22.2 kN), for one worker up to 310 lb (ANSI) or 425 lb (OSHA).

FallTech welded-eye post anchor for wood, concrete, and steel
5,000 lbsAnchorage Strength (22.2 kN)
Type AANSI Z359.18-2017
1 Worker310 lb ANSI / 425 lb OSHA
12 in or 18 inPost Height
Welded EyeConnection Point
Wood/Concrete/SteelVersatile Mount
Reduces Free FallElevated Anchor
SteelDurable Post

Who Needs This Product

This product is a versatile post anchor, the anchorage component of a personal fall arrest system. Crews mount it to wood, concrete, or steel to raise the tie-off above the deck, then connect an SRL or lanyard to the welded eye. Choose the post height for your clearance. You still need a certified full-body harness and a compatible connecting device.

Features

Versatile base

Mounts to wood, concrete, or steel to suit the structure.

Raised tie-off

The post lifts the anchor above the deck to reduce free fall.

Two heights

Choose a 12 in or 18 in post for the clearance you need.

Welded eye

A strong, fixed connection point for an SRL or lanyard.

Durable steel post

Built to stay installed for ongoing access.

ANSI Z359.18-2017

Certified anchorage rated for 5,000 lb (22.2 kN).

⚠

Mount to a sound rated substrate per the manual. Use the correct fasteners for wood, concrete, or steel, set to the specified torque, in a substrate rated to support the post anchor, and confirm it is tight and plumb. Confirm fall clearance and swing-fall with the Fall Protection Calculator below.

Compliance Standards

ANSI Z359.18-2017

American National Standard for anchorage connectors. Rated 5,000 lb (22.2 kN).

OSHA 29 CFR 1926.502

Federal construction fall protection anchorage requirements.

OSHA 29 CFR 1910

General industry personal fall protection requirements.

Rated 5,000 lb (22.2 kN)

Anchorage strength for personal fall arrest.

Typical Applications

Rooftop unitsRaised anchor near HVAC and equipment.
Mixed substratesOne anchor for wood, concrete, or steel.
Decks and slabsElevated tie-off on concrete.
Steel structuresPost anchor on structural steel.
Maintenance platformsRaised anchor for service work.
IndustrialFixed post tie-off.

How to Install

Follow the FallTech instruction manual. The sequence below is an overview only.

  1. Inspect. Check the anchor body, connection point, and hardware for damage before each use.
  2. Prepare the structure. Confirm the mounting surface is sound and rated to support the anchor per the manual.
  3. Install and secure. Mount the anchor as specified and set all fasteners to the required torque.
  4. Connect. Attach your SRL or energy-absorbing lanyard to the connection point.
  5. Check clearance. Confirm fall clearance and swing-fall with the calculator below.

Inspection and Retirement

Inspect before each use, with a documented competent-person inspection at least annually. Remove the anchor from service for any of the conditions below.

  • Anchor body and welds: cracks, bending, deformation, or corrosion.
  • D-ring or connection point: deformation, sharp edges, cracks, or corrosion.
  • Fasteners and hardware: damaged threads, loose or missing fasteners.
  • Labels: illegible or missing markings.

Remove the anchor from service immediately after any fall-arrest event, and destroy retired equipment so it cannot return to service.

Fall Protection Distributors logo Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

TypePost anchor with welded eye for wood, concrete, and steel
Height options12 in (78012WCSWE), 18 in (78218WCSWE)
SubstrateWood, concrete, or steel
Anchorage classificationANSI Z359.18-2017
ConnectionWelded eye
Anchorage strength5,000 lb (22.2 kN)
Capacity (ANSI)One worker, 130 to 310 lb combined
Capacity (OSHA)One worker, up to 425 lb combined
StandardsANSI Z359.18-2017; OSHA 1926.502 and 1910
WarrantyFallTech 2-year limited warranty against defects in materials and workmanship

Frequently Asked Questions

What substrates does it mount to?
Wood, concrete, or steel, using the fasteners specified in the manual for each substrate.
What post heights are available?
A 12 in (78012WCSWE) and an 18 in (78218WCSWE) height; choose based on the clearance you need.
Why use a raised post anchor?
Elevating the tie-off reduces free-fall distance and helps keep the lifeline clear of the working surface.
What is the rated strength and capacity?
Certified to ANSI Z359.18-2017 with 5,000 lb (22.2 kN) strength, for one worker up to 310 lb (ANSI) or 425 lb (OSHA).
How is this different from the concrete/steel-only version?
This version adds wood mounting to the concrete and steel options for more flexibility.
What do I connect to it?
Connect a compatible SRL or energy-absorbing lanyard to the connection point, used with a certified full-body harness.
Can it be reused after a fall?
No. Remove the anchor from service immediately after any fall-arrest event and destroy it so it cannot be reused.

FallTech 780PA Submittals and Documentation

78012WCSWE Instruction Manual (PDF)Installation, capacity, and inspection. 78012WCSWE Declaration of Conformity (PDF)Certification to ANSI Z359.18-2017 (FallTech test lab). 78012WCSWE Spec Sheet (PDF)One-page specifications summary.
