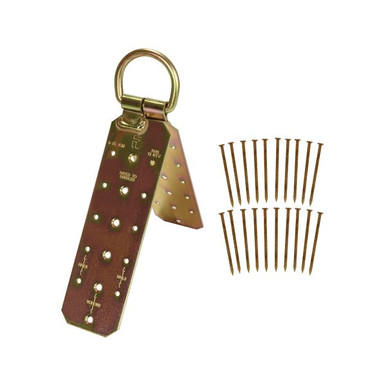

FallTech 7410 hinged reusable roof anchor for wood with fold-flat D-ring
FallTech

FallTech 7410 Hinged Reusable Roof Anchor for Wood

(No reviews yet) Write a Review
$46.00
Brand:
FallTech
SKU:
7410
Availability:
Usually ships in 1 business day
Shipping:
Calculated at Checkout
Adding to cart… The item has been added
American Express Icon American Express Icon Discover Icon Discover Icon Mastercard Icon Mastercard Icon PayPal Icon PayPal Icon Visa Icon Visa Icon
FallTech Anchorage Connectors

FallTech 7410 Hinged Reusable Roof Anchor for Wood

The FallTech 7410 is a hinged, reusable roof anchor that screws to a wood roof structure to create a temporary tie-off point. The hinged D-ring folds flat so roofing material can lay over it, and the anchor can be removed and reused on the next job.

It is certified to ANSI Z359.1-2007, for one worker up to 310 lb (ANSI) or 425 lb (OSHA), and is a staple of residential and light-commercial roofing.

FallTech 7410 hinged reusable roof anchor for wood with fold-flat D-ring
ReusableHinged Roof Anchor
Z359.1ANSI 2007 Certified
1 Worker310 lb ANSI / 425 lb OSHA
Wood StructureScrew-Down
Hinged D-RingFolds Flat
TemporaryRemovable
RoofingResidential / Light Commercial
5,000 lbsAnchorage Requirement

Who Needs This Product

This product is a hinged reusable roof anchor, the anchorage component of a personal fall arrest system for wood roofs. Roofers screw it to the roof structure for a temporary tie-off point, then connect an SRL or lanyard. It is removed and reused between jobs. You still need a certified full-body harness and a compatible connecting device.

Features

Reusable

Screw it down, use it, remove it, and reuse it on the next roof.

Hinged D-ring

Folds flat so roofing material can lay over the anchor.

Wood roof mount

Fastens to rafters or trusses with the specified screws.

Fast to install

Quick temporary anchor for roofing crews.

Durable steel

Stands up to repeated jobs.

ANSI Z359.1-2007

Certified for one worker up to 310 lb.

⚠

Fasten to sound wood framing with the specified screws. Drive all required fasteners into solid rafters or trusses per the manual, not just sheathing. Patch the fastener holes when you remove the anchor. Confirm fall clearance and swing-fall with the Fall Protection Calculator below.

Compliance Standards

ANSI Z359.1-2007

American National Standard for fall arrest components. Rated 5,000 lb (22.2 kN).

OSHA 29 CFR 1926.502

Federal construction fall protection anchorage requirements.

OSHA 29 CFR 1910

General industry personal fall protection requirements.

Rated 5,000 lb (22.2 kN)

Anchorage strength for personal fall arrest.

Typical Applications

Residential roofingTemporary tie-off on wood roofs.
Re-roofingReusable anchor across jobs.
Light commercialWood-framed roof work.
Solar installRoof anchor for panel work.
FramingTie-off during roof framing.
InspectionQuick temporary roof anchor.

How to Install

Follow the FallTech instruction manual. The sequence below is an overview only.

  1. Inspect. Check the anchor body, connection point, and hardware for damage before each use.
  2. Prepare the structure. Confirm the mounting surface is sound and rated to support the anchor per the manual.
  3. Install and secure. Mount the anchor as specified and set all fasteners to the required torque.
  4. Connect. Attach your SRL or energy-absorbing lanyard to the connection point.
  5. Check clearance. Confirm fall clearance and swing-fall with the calculator below.

Inspection and Retirement

Inspect before each use, with a documented competent-person inspection at least annually. Remove the anchor from service for any of the conditions below.

  • Anchor body and welds: cracks, bending, deformation, or corrosion.
  • D-ring or connection point: deformation, sharp edges, cracks, or corrosion.
  • Fasteners and hardware: damaged threads, loose or missing fasteners.
  • Labels: illegible or missing markings.

Remove the anchor from service immediately after any fall-arrest event, and destroy retired equipment so it cannot return to service.

Fall Protection Distributors logo Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

TypeHinged reusable roof anchor for wood
MountingScrew-down to wood framing
Anchorage classificationANSI Z359.1-2007
D-ringHinged, folds flat
Anchorage strength5,000 lb (22.2 kN)
Capacity (ANSI)One worker, 130 to 310 lb combined
Capacity (OSHA)One worker, up to 425 lb combined
StandardsANSI Z359.1-2007; OSHA 1926.502 and 1910
WarrantyFallTech 2-year limited warranty against defects in materials and workmanship

Frequently Asked Questions

Is the 7410 reusable?
Yes. It screws down for the job and is removed and reused on the next roof; patch the fastener holes when you take it off.
What does the hinge do?
The D-ring hinges flat so shingles or roofing material can lay over the anchor during work.
What does it fasten to?
Sound wood framing, such as rafters or trusses, with the screws specified in the manual, not just sheathing.
What standard is it certified to?
It is certified to ANSI Z359.1-2007 for one worker up to 310 lb (ANSI) or 425 lb (OSHA).
Is there a version for metal roofs?
Yes. The FallTech 7410M is the hinged reusable anchor for steel deck and metal roofing.
What do I connect to it?
Connect a compatible SRL or energy-absorbing lanyard to the connection point, used with a certified full-body harness.
Can it be reused after a fall?
No. Remove the anchor from service immediately after any fall-arrest event and destroy it so it cannot be reused.

FallTech 7410 Submittals and Documentation

7410 Instruction Manual (PDF)Installation, capacity, and inspection. 7410 Declaration of Conformity (PDF)Certification to ANSI Z359.1-2007 (FallTech test lab). 7410 Spec Sheet (PDF)One-page specifications summary.
