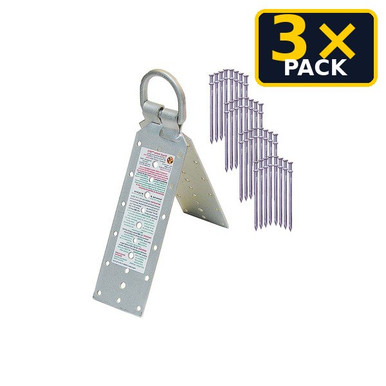

Super Anchor Hinge-2 Temporary and Reusable Roof Anchor
The Super Anchor Hinge-2 is a heavy duty 11 gauge steel reusable anchor that installs with nails or screws for fall arrest or fall restraint. It installs at the peak up to a 24/12 pitch, on the surface of the roof deck, or on the floor deck, and it can be installed vertically onto a wall system when fastened with Super Anchor WS series screws.
The 3013-D ships with 36 duplex nails and has dual size fastener holes for more fastening options. It has a durable Dacromet finish and adjusts from flat to a 20/12 pitch. It meets OSHA 1926.502 and ANSI Z359.18-17 Type A with a 5,000 pound minimum tensile strength for one person personal fall arrest.
This product is sold as a 3-pack.
Who Needs This Product
The Hinge-2 is a reusable roof anchor for roofers and framers who need an adjustable tie-off for fall arrest or fall restraint on the roof deck, floor deck, or wall. Its pitch adjustment and dual fastener holes suit a wide range of installs. Complete the system with a full-body harness and an energy-absorbing connecting device.
Features
Adjustable pitch
Adjusts from flat to a 20/12 pitch and installs at the peak up to 24/12.
Reusable with WS screws
Reusable when fastened with Super Anchor WS series wood screws.
Heavy duty 11 gauge steel
Durable Dacromet finished steel construction.
Dual fastener holes
Two fastener hole sizes give more installation options.
Deck, floor, or wall
Installs on the roof deck, floor deck, or vertically onto a wall system.
Ships with fasteners
Comes with 36 duplex nails for immediate install.
This is a temporary anchor, not a complete system. Attach one person per anchor, use an OSHA, ANSI, or CSA compliant harness and energy absorber, install onto framing capable of the load, and confirm fall clearance. Run the Fall Protection Calculator below before you tie off.
Compliance Standards
OSHA 29 CFR 1926.502
Federal construction fall protection anchorage requirements.
ANSI Z359.18-17 Type A
American National Standard for anchorage connectors, Type A.
Typical Applications
How to Install the Hinge-2 Anchor
Follow the Super Anchor Safety instruction manual. The sequence below is an overview only.
- Position the anchor. Set the Hinge-2 at the peak, on the roof deck, floor deck, or wall per a competent-person layout.
- Adjust the hinge. Set the anchor to the roof pitch, flat up to 20/12.
- Fasten. Install with the supplied duplex nails or with WS series screws for reusable installs.
- Connect. Attach a harness and energy-absorbing device; keep the fall arrest angle within 30 degrees off vertical.
- Verify. Confirm one person per anchor and confirm fall clearance before use.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least annually. Remove the product from service for any condition below.
- Anchor body: cracks, deformation, corrosion, or elongated holes.
- Coating: worn or damaged galvanizing, dacromet, or powder coat at the connection point.
- Fasteners and flashing: loose, missing, backed-out, or leaking hardware.
- D-ring or connection point: burrs, sharp edges, or excessive wear.
- Labels: illegible or missing product identification.
Retire the anchor immediately after any fall-arrest event, or if any inspection point fails.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| SKU | 3013-D |
|---|---|
| Manufacturer Part Number | 3013-D |
| Type | Temporary and reusable roof anchor |
| Material | 11 gauge Dacromet coated steel |
| Pitch | Adjustable flat to 20/12, installs up to 24/12 |
| Fasteners | 36 duplex nails included; dual size fastener holes |
| Capacity | 1 person personal fall arrest |
| Min tensile strength | 5,000 lb (22.5 kN) |
| Connector gate strength | 3,600 lb |
| Max user weight | 310 lb (140 kg) including tools and equipment |
| Service angle | Fall arrest max 30 degrees off vertical center |
| Standards | OSHA 1926.502; ANSI Z359.18-17 Type A |
| Warranty | Super Anchor Safety manufacturer warranty; see Warranty tab |
Frequently Asked Questions
Super Anchor Hinge-2 Reusable Roof Anchor Submittals and Documentation
Hinge-2 3013 Manual 2025 (PDF)Use, installation, capacity, and inspection. Hinge-2 Metal Decking Install (PDF)Metal decking perpendicular install guide. Hinge-2 RS-20 Metal Decking Install (PDF)Metal decking install addendum. Horizontal Lifeline Manual (PDF)HLL system rigging, spans, and clearances. Warranty and Compliance Statement (PDF)Manufacturer warranty and standards compliance.Related Super Anchor Products
Need an Adjustable Reusable Anchor?
Roof pitch, install surface, and fastener choice all affect a safe tie-off. Confirm your application with us and we will help match the Hinge-2 with the right fasteners and PPE.
Call 863-703-4522 to talk to a fall protection specialist.
Super Anchor Safety Manufacturer Warranty
Super Anchor Safety (SAS) warrants to the purchaser that all products are free from defect in material and workmanship at the time of shipment. This warranty is limited to product replacement for a period of one (1) year from the date of installation or use by the owner, provided that this period shall not exceed two (2) years from the date of shipment. This warranty only covers defects in material and workmanship. It does not cover conditions resulting from normal wear, neglect, abuse, or accident. This product warranty does not cover oxidation of zinc, dacromet, or powder coatings used on permanent and temporary anchors that results from connector abrasion unless the coating can be shown to be defective at the time of purchase. This warranty is non-transferable. Any unused defective product will be replaced at no charge by returning the product to Super Anchor Safety or to the distributor the product was purchased from.
Permanent Anchor Warranty
Super Anchor Safety warrants to the purchaser that all anchors sold as a permanent fixture with Hot Dip Galvanizing, Stainless Steel, and Thermo-Plastic finishes are fully warranted against failure due to defects in materials or workmanship for a period of five (5) years from the date of initial installation. SAS does not warranty the installation or flashing system used to waterproof the anchors. The SAS factory warranty is void if the product has been modified or has not been used in accordance with SAS specifications and instructions for that product. Anchors that have been removed from service due to re-roofing or remodel of the structure they were originally attached to must be inspected by an SAS factory representative or a competent person before being reinstalled.
See the Super Anchor Warranty and Compliance Statement (PDF) for the full manufacturer document.
