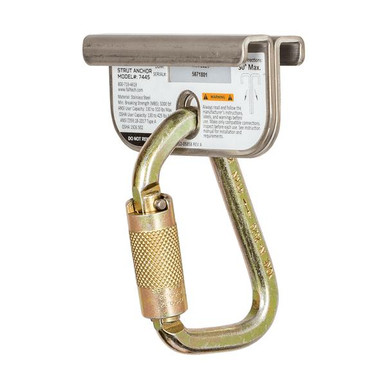

FallTech 7445 Strut Anchor
The FallTech 7445 Strut Anchor mounts into strut channel (framing channel) to create a tie-off point along a strut run. It slides into the channel and locks in place, giving a fast anchor for mechanical, electrical, and industrial work built on strut.
It is certified to ANSI Z359.18-2017, rated for 5,000 lb (22.2 kN), for one worker up to 310 lb. Sold in multi-packs.
Who Needs This Product
This product is a strut anchor, the anchorage component of a personal fall arrest system for work on strut channel. Trades mount it into a strut run for a tie-off point, then connect an SRL or lanyard. It repositions along the channel. You still need a certified full-body harness and a compatible connecting device.
Features
Strut-channel mount
Slides into framing channel and locks for a fast anchor point.
Repositionable
Move it along the strut run as the work moves.
For strut-built systems
Ideal for mechanical, electrical, and industrial strut installations.
Strong connection
A durable tie-off point for an SRL or lanyard.
Durable steel
Built for repeated jobsite use.
ANSI Z359.18-2017
Certified anchorage rated for 5,000 lb (22.2 kN).
Install into sound, rated strut per the manual. Confirm the strut channel and its supports are rated to hold a fall-arrest load, seat the anchor fully, and lock it in place. Confirm fall clearance and swing-fall with the Fall Protection Calculator below.
Compliance Standards
ANSI Z359.18-2017
American National Standard for anchorage connectors. Rated 5,000 lb (22.2 kN).
OSHA 29 CFR 1926.502
Federal construction fall protection anchorage requirements.
OSHA 29 CFR 1910
General industry personal fall protection requirements.
Rated 5,000 lb (22.2 kN)
Anchorage strength for personal fall arrest.
Typical Applications
How to Install
Follow the FallTech instruction manual. The sequence below is an overview only.
- Inspect. Check the anchor body, connection point, and hardware for damage before each use.
- Prepare the structure. Confirm the mounting surface is sound and rated to support the anchor per the manual.
- Install and secure. Mount the anchor as specified and set all fasteners to the required torque.
- Connect. Attach your SRL or energy-absorbing lanyard to the connection point.
- Check clearance. Confirm fall clearance and swing-fall with the calculator below.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least annually. Remove the anchor from service for any of the conditions below.
- Anchor body and welds: cracks, bending, deformation, or corrosion.
- D-ring or connection point: deformation, sharp edges, cracks, or corrosion.
- Fasteners and hardware: damaged threads, loose or missing fasteners.
- Labels: illegible or missing markings.
Remove the anchor from service immediately after any fall-arrest event, and destroy retired equipment so it cannot return to service.
Product Video
See the Frontline davit arm system set up for confined-space entry and non-entry rescue retrieval.
Who Needs This Product
This product is a confined space davit system - the rotating retrieval point that lowers and recovers workers and material over an opening. Confined space teams, utilities, and tank crews build their entry and non-entry rescue around it. It requires a rated winch or 3-way SRL, a full body harness, and a written rescue plan to form a complete system.
Features
360-degree boom
Swing the load over the opening and away to the landing zone.
Two integrated pulleys
Run a fall arrest SRL and a retrieval winch line simultaneously.
Permanent base options
Mount to steel, concrete, or a truck bed for mobile rescue.
Made in the USA
Patriot-line build for Buy American specs.
Removable boom
Lift the boom out when the entry point is not in use.
Tank and edge ready
Reaches over tank rims and leading edges.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | Strut (framing channel) anchor |
|---|---|
| Mounting | Slides into strut channel and locks |
| Anchorage classification | ANSI Z359.18-2017 |
| Reusable | Yes |
| Anchorage strength | 5,000 lb (22.2 kN) |
| Capacity (ANSI) | One worker, 130 to 310 lb combined |
| Capacity (OSHA) | One worker, up to 425 lb combined |
| Standards | ANSI Z359.18-2017; OSHA 1926.502 and 1910 |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 7445 Submittals and Documentation
7445 Instruction Manual (PDF)Installation, capacity, and inspection. 7445 Declaration of Conformity (PDF)Certification to ANSI Z359.18-2017 (FallTech test lab). 7445 Spec Sheet (PDF)One-page specifications summary.Related Anchors
- FallTech steel and beam anchors. See the full beam clamp and steel anchor line.
- FallTech fall protection equipment. Harnesses, SRLs, lanyards, and anchors.
Specifying Anchors for Your Crew?
The anchor, the connecting device, and the harness all have to match the structure and the fall clearance below. Confirm your application with us and we will help you choose the right anchor.
Call 863-703-4522 to talk to a fall protection specialist.
