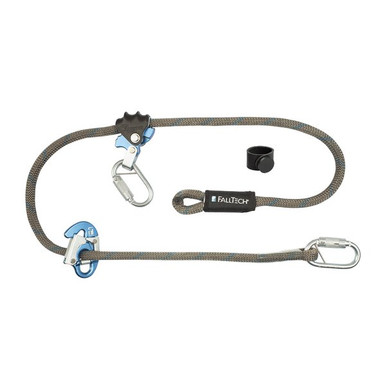

FallTech APEX Pro WPFRD Replacement Rope Assembly
Designed for exceptional performance and ease of operation in all conditions (dry, wet, or icy). Purpose built, proprietary compact snap hook makes connection quick and easy with as few as two fingers.
Horizontal Rope Adjuster designed for ultimate ergonomics, even with a gloved hand. Horizontal Adjuster features thumb release lever for effortless and infinite adjustment.
Who Needs This Product
Utilities that standardize on the APEX Pro keep factory rope assemblies and keepers in the stockroom because the rope is the wear item on a wood pole device. Swapping a factory rope assembly returns the device to service in minutes and keeps the certification intact.
Features
Designed for exceptional performance and
Designed for exceptional performance and ease of operation in all conditions (dry, wet, or icy).
Purpose built
Purpose built, proprietary compact snap hook makes connection quick and easy with as few as two fingers.
Horizontal Rope Adjuster designed for
Horizontal Rope Adjuster designed for ultimate ergonomics, even with a gloved hand.
Horizontal Adjuster features thumb release
Horizontal Adjuster features thumb release lever for effortless and infinite adjustment.
Extra large diameter rope improves
Extra large diameter rope improves ergonomics and durability to traditional 10mm ropes.
Included neodymium magnetic tail keeper
Included neodymium magnetic tail keeper mitigates trips and snags caused by the tail end of the rope or traditional tail keepers.
Factory assemblies keep the certification. The APEX Pro's CSA and ASTM Type AB certification assumes the factory rope, hook, and keeper. Replace wear items with factory assemblies only, and retire any rope after fall loading.
Compliance Standards
CSA Z259.14-12(R2021) Type AB
Applicable requirement for this equipment: CSA Z259.14-12(R2021) Type AB.
ASTM F887
Standard specification for personal climbing equipment used by line workers, including wood pole fall restrict devices and body belts.
Typical Applications
How to Use
Follow the FallTech instruction manual. The sequence below is an overview only.
- Match the part. Confirm fit against your APEX Pro device model.
- Swap per the manual. Replace the rope or keeper following the FallTech instructions.
- Function check. Run the adjuster through its travel and verify lock before climbing.
- Log it. Record the replacement in the device inspection record.
Inspection and Retirement
Inspect on the device's schedule, before each use and annually by a competent person.
- Rope: cuts, abrasion, glazing, and diameter loss.
- Hardware: snap hook gate and lock function.
- Magnets: keeper holds the tail firmly.
Replace any component that fails inspection; retire rope assemblies after any fall loading.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | Wood Pole Fall Restrict Device |
|---|---|
| SKU | 8180R |
| Fits Pole Size: | 4" to 30" pole diameter |
| OSHA User Capacity | 425 lb max. |
| CSA User Capacity | 425 lb max. |
| ASTM User Capacity | 425 lb max. |
| Rope | 18 mm Technora Kernmantle Rope; 5,000 min. static strength |
| Mini Snap Hook | Aluminum Alloy and Plated Alloy Steel; 5,000 lb min. static strength with 3,600 lb gate strength |
| Body Belt Carabiners | Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength |
| Adjusters | Aluminum Alloy and Plated Alloy Steel |
| Standards | CSA Z259.14-12(R2021) Type AB; ASTM F887-20 Type AB; OSHA 1926.502 and 1910.67 |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 8180R Submittals and Documentation
8180R Declaration of Conformity (PDF)Manufacturer conformity certification for compliance files and submittal packages. 8180R Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 8180R Sell Sheet / Brochure (PDF)Specifications, dimensions, and feature summary.Complete Your Climbing System
- FallTech APEX Pro Wood Pole Fall Restrict Device. The complete APEX Pro climbing device.
- FallTech FT-Lineman Pro Body Belt with Waist Pad. The ergonomic lineman positioning belt.
- FallTech APEX Pro WPFRD Secondary Rope Assembly. Second rope for 100 percent transitions.
- FallTech APEX Pro Magnetic Tail Keeper, 2-Pack. Stops rope tail snags.
