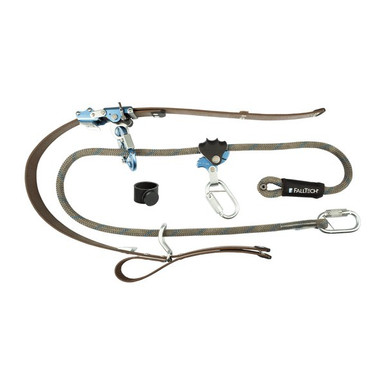

FallTech APEX Pro Wood Pole Fall Restrict Device
Designed for exceptional performance and ease of operation in all conditions (dry, wet, or icy). Articulating strap adjuster conforms to any shape or size pole while maintaining proper orientation while climbing or falling. Climb faster, smoother, and more confidently.
Purpose built, proprietary compact snap hook makes connection quick and easy with as few as two fingers. Horizontal Rope Adjuster designed for ultimate ergonomics, even with a gloved hand.
Who Needs This Product
Line workers climbing wood poles use the APEX Pro wood pole fall restrict device as the positioning and fall restrict system that stays engaged through every step of the climb. The articulating strap adjuster conforms to any pole shape while maintaining contact, and the horizontal rope adjuster works with a gloved hand, wet, dry, or iced. It is built for distribution and transmission climbing all day, every day.
Features
Designed for exceptional performance and
Designed for exceptional performance and ease of operation in all conditions (dry, wet, or icy).
Articulating strap adjuster conforms to
Articulating strap adjuster conforms to any shape or size pole while maintaining proper orientation while climbing or falling. Climb faster, smoother, and more confidently.
Purpose built
Purpose built, proprietary compact snap hook makes connection quick and easy with as few as two fingers.
Horizontal Rope Adjuster designed for
Horizontal Rope Adjuster designed for ultimate ergonomics, even with a gloved hand.
Articulating Strap Adjuster and Horizontal
Articulating Strap Adjuster and Horizontal Rope Adjuster both feature thumb release levers for effortless and infinite adjustment.
Extra large diameter rope improves
Extra large diameter rope improves ergonomics and durability to traditional 10mm ropes.
Fall restrict is not fall arrest. A wood pole fall restrict device keeps a gaffed climber on the pole; it is not an arrest system for free fall. Use it with a compliant lineman body belt per ASTM F887 and your utility's work rules, and keep it engaged through the whole climb.
Compliance Standards
CSA Z259.14-12(R2021) Type AB
Applicable requirement for this equipment: CSA Z259.14-12(R2021) Type AB.
ASTM F887
Standard specification for personal climbing equipment used by line workers, including wood pole fall restrict devices and body belts.
Typical Applications
How to Use
Follow the FallTech instruction manual. The sequence below is an overview only.
- Rig to the belt. Connect the device to both D-rings of a lineman body belt per the manual.
- Set the strap. Wrap the pole; the articulating strap adjuster conforms to the pole and holds position.
- Climb with contact. Advance the device up the pole as you climb, keeping it engaged through each gaff step.
- Adjust one-handed. The thumb release levers on both adjusters give infinite adjustment with a gloved hand.
- Position and work. Lean back into the system; the device restricts a fall along the pole while both hands work.
Inspection and Retirement
Inspect before each use, with a documented competent person inspection at least annually per ASTM F887 practice.
- Rope: cuts, abrasion, glazing, and diameter loss.
- Strap: cuts, fraying, and adjuster teeth condition.
- Adjusters: thumb releases operate and lock; no cracks.
- Snap hook: gate and lock function; no deformation.
- Magnetic tail keeper: present and holding the tail.
Retirement triggers: any fall loading, rope or strap damage, or adjuster malfunction.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | Wood Pole Fall Restrict Device |
|---|---|
| SKU | 8180X |
| Fits Pole Size: | 4" to 18" pole diameter |
| OSHA User Capacity | 425 lb max. |
| CSA User Capacity | 425 lb max. |
| ASTM User Capacity | 425 lb max. |
| Strap | Abrasion/Cut Resistant Nylon; 5,000 lb min. static strength |
| Rope | 15 mm Technora Kernmantle Rope; 5,000 min. static strength |
| Mini Snap Hook | Aluminum Alloy and Plated Alloy Steel; 5,000 lb min. static strength with 3,600 lb gate strength |
| Body Belt Carabiners | Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength |
| Available Configurations | 8180D (Distribution, 4 to 18 in), 8180T (Transmission, 4 to 30 in) |
| Standards | CSA Z259.14-12(R2021) Type AB; ASTM F887-20 Type AB; OSHA 1926.502 and 1910.66 |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 8180D Submittals and Documentation
8180X Declaration of Conformity (8180D) (PDF)Manufacturer conformity certification for compliance files and submittal packages. 8180X Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 8180X Sell Sheet / Brochure (PDF)Specifications, dimensions, and feature summary. 8180X Declaration of Conformity (8180T) (PDF)Manufacturer conformity certification for compliance files and submittal packages.Complete Your Climbing System
- FallTech FT-Lineman Pro Body Belt with Waist Pad. The ergonomic lineman positioning belt.
- FallTech APEX Pro WPFRD Replacement Rope Assembly. The factory replacement wear item.
- FallTech APEX Pro WPFRD Secondary Rope Assembly. Second rope for 100 percent transitions.
- FallTech APEX Pro Magnetic Tail Keeper, 2-Pack. Stops rope tail snags.
Outfitting a Line Crew?
Belt sizing, pole classes, and rope spares: call us and we will spec the full climbing system before it ships. Confirm your application with us and we will make sure every component matches before it ships.
Call 863-703-4522 to talk to a fall protection specialist.
