Derrick 6D Bosun Harness
Engineered for derrick operations and elevated work, the Frontline 150DHTW Derrick 6D Bosun harness combines fall arrest, work positioning, and suspension in one chassis. High-strength materials and six D-ring attachment points support derrick-specific tie-off configurations. An integrated, removable Bosun chair sling seat and a padded work-positioning belt deliver comfort for extended seated work, while grommeted leg straps allow a custom, secure fit.
Polyester with alloy steel hardware. Rated to a 310 lb capacity and 5,000 lb breaking strength. Compliant with ANSI Z359.11-2021 and OSHA 29 CFR 1910 and 1926.
Who Needs This Product
This product is a personal fall protection full body harness. It is used as the wearer-side component of a personal fall arrest system (PFAS), a work positioning system, or a fall restraint system. Pair it with a compatible energy-absorbing lanyard or self-retracting lifeline (SRL) and a certified anchor rated to 5,000 lb. The harness is not a complete fall arrest system on its own.

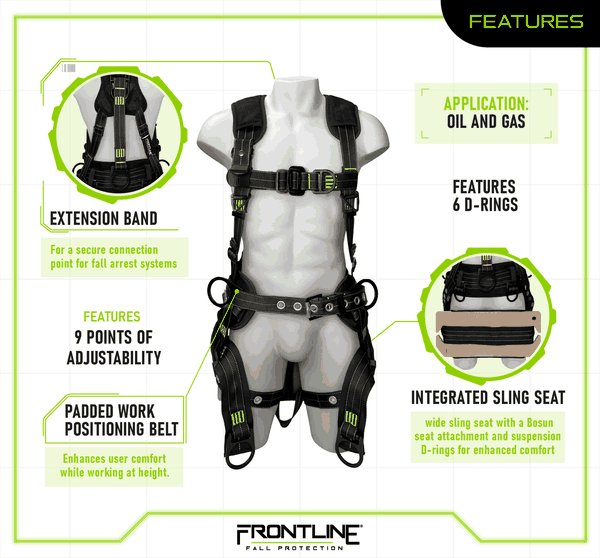

Features
Removable Bosun chair sling seat
Integrated 2.75 in sling seat with Bosun attachment supports the worker for extended seated derrick tasks; removes when not needed.
Six D-rings for arrest, positioning, and suspension
The 6D layout covers fall arrest at the dorsal, positioning at the hips, and suspension at the sling seat.
Padded work-positioning belt
Padded belt adds comfort and support for long shifts at the derrick or monkey board.
Grommeted leg straps, nine positions
Adjustable grommeted leg straps lock in a custom, secure fit across nine positions.
Lanyard keepers
Built-in keepers stow connecting hardware so lanyards stay out of the way until needed.
Galvanized hardware and high-strength webbing
Alloy steel hardware and high-strength polyester webbing built for demanding derrick environments.
Configurations
| Size | SKU | Price |
|---|---|---|
| S | 150DHTW-S | $603.99 |
| M/L | 150DHTW-ML | $603.99 |
| XL/2XL | 150DHTW-XL/2X | $603.99 |
Technical Specifications
| Series | Derrick |
|---|---|
| SKU | 150DHTW |
| Rated user capacity | 310 lb (worker, clothing, tools, and harness combined) |
| Breaking strength | 5,000 lb |
| Webbing material | Polyester |
| Webbing width | 1.7 in |
| Stitching | High-tenacity polyester |
| Hardware | Alloy steel |
| D-rings | Dorsal (primary fall arrest anchor between the shoulder blades); Sternal (front) (chest d-ring); Hip (lifting) (two hip lifting d-rings for derrick and monkey-board positioning); Bosun seat sling (two suspension d-rings on the integrated sling seat for prolonged suspension) |
| Weight | 10.9 lbs |
| Available sizes | S, M/L, XL/2XL |
| ANSI standard | Z359.11-2021 |
| OSHA alignment | 29 CFR 1910 Subpart I; 29 CFR 1926 Subpart M |
Capacity and free fall. The 310 lb capacity includes the worker plus clothing, tools, and harness combined. Maximum free fall for a personal fall arrest system is 6 ft per OSHA 1926.502 when anchored at the dorsal D-ring. Calculate fall clearance for every setup before tying off.
Compliance Standards
ANSI Z359.11-2021
American National Standards Institute fall protection standard for this product class.
OSHA 29 CFR 1926
Subpart M construction industry fall protection (1926.500-503).
OSHA 29 CFR 1910
Subpart I general industry walking-working surfaces and PPE.
Typical Applications
Donning Overview
Single-operator donning per the Frontline user manual. Always refer to the manual for the full procedure.
- Inspect. Run the harness through a pre-use inspection: webbing, hardware, stitching, labels, fall indicators.
- Orient. Hold the harness up by the dorsal D-ring. Shake the leg straps free so they hang clean.
- Shoulders. Slip both arms through the shoulder straps with the dorsal D-ring centered between the shoulder blades.
- Chest. Connect the chest buckle. Adjust so the strap sits 6 to 8 inches below the collarbone.
- Legs. Pass each leg strap under the thigh and connect at the leg buckle. Tighten until two fingers fit between strap and thigh.
- Tighten. Adjust shoulders, chest, and legs evenly. The dorsal D-ring should rest between the shoulder blades, not riding up the neck or down the lower back.
Inspection and Retirement
Inspect every component before each use. A competent person inspects formally on a documented interval, typically every 6 months under ANSI Z359.2. Pull the equipment out of service for any of the conditions below.
- Webbing: cuts, burns, abrasion, chemical attack, broken threads, loose stitching.
- Hardware: cracks, deformation, sharp edges, corrosion, improper function of buckles and D-rings.
- Stitching: cut, broken, or loose stitches; pulled threads at any load point.
- Labels: legible and intact. Date of first use recorded.
- Fall indicators: any deployed or stretched indicator pulls the equipment out of service immediately.
- Connectors and hooks: gates close fully under spring tension; latches lock; no rollout exposure.
Retirement triggers: any deployed fall indicator, any equipment involved in a fall event, any chemical exposure outside the manufacturer-published list, or any condition where the inspector cannot positively verify the equipment is fit for service.
