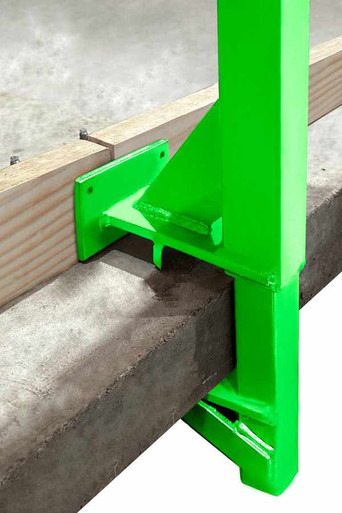

GUC2X4 Slab Grabber System for Concrete Substrates
The Frontline GUC2X4 clamps guardrail to a concrete slab edge with zero penetrations - no drilling, no embedded hardware, no patching afterward. The slab grabber adjusts to fit slabs from 4 in up to 28 in thick and tightens down with a torque wrench drill in minutes.
Each grabber carries slots for top rails, mid rails, and toe boards, so a 2x4 guardrail system drops straight in. Built from high strength rated steel, hot-dip galvanized and powder coated safety green for visibility, at 20 lbs each. Grabbers are sold by the each and come bulk packaged. Meets OSHA 1910 and 1926 guardrail requirements.
Who Needs This Product
This product is passive fall protection - a guardrail system that stops a fall at the edge without the worker wearing or doing anything. GCs and safety managers choose guardrail for leading edges, slab perimeters, and parapets where many workers pass and personal fall arrest would be impractical. No harness, anchor, or clearance calculation required.
Features
Completely non-penetrating
Clamps the slab edge - no drilling, no embeds, no patching when you strike it.
Fits 4 to 28 in slabs
One grabber covers thin decks through thick transfer slabs.
Rail and toe board slots
Top rail, mid rail, and toe board drop into the integrated slots.
Minutes to install
A torque wrench drill sets each grabber fast.
Galvanized and powder coated
Hot-dip galvanized under safety green powder coat for weather and visibility.
Reusable across pours
Move the grabbers down the building as floors complete.
Technical Specifications
| SKU | GUC2X4 |
|---|---|
| Type | Non-penetrating slab-edge guardrail grabber (concrete substrates) |
| Slab range | Fits concrete slabs 4 in to 28 in thick |
| Slots | Top rail, mid rail, and toe board (2x4) |
| Material | High strength rated steel |
| Finish | Hot-dip galvanized, powder coated safety green |
| Weight | 20 lbs each |
| Packaging | Sold by the each, bulk packaged |
| Max dimensions | Approx. 44 in x 28 in x 77-11/16 in deployed (per spec sheet) |
| Standards | OSHA 1910; OSHA 1926 |
Passive protection, installed right. A guardrail only protects if every post is clamped and every rail and toe board is seated per the Frontline manual, on a substrate that meets the spec. Have a competent person verify the installed system before it is relied upon, and re-inspect after any impact.
Compliance Standards
OSHA 29 CFR 1926.502
Guardrail system criteria for construction: 200 lb top-rail load, heights, and toe boards.
OSHA 29 CFR 1910.29
Walking-working surface guardrail requirements for general industry.
ANSI / engineered design
Components are engineered to meet the applicable OSHA guardrail load criteria per the spec sheet.
Typical Applications
How to Install the GUC2X4
Follow the manufacturer's manual. The sequence below is an overview only.
- Inspect. Check the grabber body, clamp mechanism, and slots before each use.
- Position on the edge. Set the grabber over the slab edge where the rail line runs.
- Clamp. Tighten the grabber to the slab thickness (4-28 in) with a torque wrench drill per the manual.
- Set the spacing. Place grabbers at the manual's maximum post spacing along the edge.
- Drop in rails and toe board. Seat top rail, mid rail, and toe board into the slots.
- Verify. Have a competent person confirm the system before relying on it.
Inspection and Retirement
Inspect before each use and after any impact. Pull any component from service for the conditions below.
- Posts and bases: bending, cracks, corrosion, or coating breakdown.
- Clamping / grabbing mechanism: full travel, secure clamp, no slipping under hand load.
- Rails and toe boards: secure seating in the post slots, no damage.
- Fasteners and adjusters: present, functional, torqued per the manual.
- Markings: labels must be present and legible.
Remove any component from service that fails inspection. After any impact or load event, inspect the full system before reuse. Guardrail is passive protection - a damaged system gives false confidence.
Frequently Asked Questions
Frontline GUC2X4 Submittals and Documentation
Frontline GUC2X4 Spec Sheet (PDF)Slab range, slots, materials, dimensions, and standards. Frontline GUC2X4 User Manual (PDF)Installation, spacing, inspection, and OSHA guardrail compliance. Frontline GUC2X4 Test Report (PDF)Third-party test results for the slab grabber system. Frontline Catalog (PDF)The full Frontline Fall Protection product catalog.Compatible and Related Products
- Frontline GUP2X4 Parapet Wall Guardrail. The parapet-wall clamp version of the same family.
- Frontline COSL Concrete Embed Strap. Cast-in tie-off anchorage for the same concrete decks.
- Frontline COS04L Concrete Embed Strap. A 4 ft cast-in-place embed anchor.
Railing Off a Slab Edge or Parapet?
Guardrail layouts depend on your edge, substrate, and span. Confirm your jobsite conditions with us and we will walk through the guardrail lineup so the right bases, posts, and rails ship together.
Call 863-703-4522 to talk to a fall protection specialist.
