GUP2X4 Parapet Wall and Universal Guardrail System
The Frontline GUP2X4 grabs a parapet wall and turns it into a guardrail line: a universal clamping post that adjusts from 2 in up to 14 in of wall width and stands 30 in to 42 in tall, shipping pre-installed for added edge protection and compliance the moment it lands on site.
The tubular design enables fast placement and removal, and the high-visibility finish keeps every worker aware of the edge. Built from ASTM rated steel in powder coated safety green or hot-dip galvanized, 25 lbs per system, meeting OSHA 1910 and 1926 guardrail requirements - for parapets and, with the universal base, conventional edges too.
Who Needs This Product
This product is passive fall protection - a guardrail system that stops a fall at the edge without the worker wearing or doing anything. GCs and safety managers choose guardrail for leading edges, slab perimeters, and parapets where many workers pass and personal fall arrest would be impractical. No harness, anchor, or clearance calculation required.

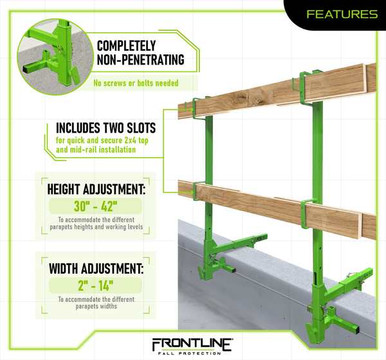

Features
Clamps the parapet
Adjusts from 2 in to 14 in of wall width - no drilling into the wall or roof.
Height adjustable
30 in to 42 in covers OSHA top-rail height with margin.
Ships pre-installed
Arrives assembled for added edge protection and immediate compliance.
Universal capability
Works on parapets and, with the base, conventional edges.
Tubular fast-set
Quick to place and remove without compromising durability.
High-visibility finish
Safety green keeps the edge obvious to every worker.
Technical Specifications
| SKU | GUP2X4GRN (Green) / GUP2X4HDG (HDG) |
|---|---|
| Type | Parapet wall and universal guardrail system |
| Application | Parapet walls; universal edges with base |
| Wall width clamp range | 2 in to 14 in |
| Height adjustment | 30 in to 42 in |
| Material | ASTM rated steel |
| Finishes | Powder coated safety green or hot-dip galvanized |
| System weight | 25 lbs |
| Overall height | Approx. 52.4 in (per spec sheet) |
| Standards | OSHA 1910; OSHA 1926 |
Passive protection, installed right. A guardrail only protects if every post is clamped and every rail and toe board is seated per the Frontline manual, on a substrate that meets the spec. Have a competent person verify the installed system before it is relied upon, and re-inspect after any impact.
Compliance Standards
OSHA 29 CFR 1926.502
Guardrail system criteria for construction: 200 lb top-rail load, heights, and toe boards.
OSHA 29 CFR 1910.29
Walking-working surface guardrail requirements for general industry.
ANSI / engineered design
Components are engineered to meet the applicable OSHA guardrail load criteria per the spec sheet.
Typical Applications
How to Install the GUP2X4
Follow the manufacturer's manual. The sequence below is an overview only.
- Inspect. Check posts, clamp mechanism, and adjusters before each use.
- Set on the parapet. Place the clamp over the parapet wall (2-14 in width) where the rail line runs.
- Clamp and set height. Tighten to the wall and adjust post height (30-42 in) per the manual.
- Space the posts. Place posts at the manual's maximum spacing along the edge.
- Install rails. Seat top rails and mid rails into the posts.
- Verify. Have a competent person confirm the system before relying on it.
Inspection and Retirement
Inspect before each use and after any impact. Pull any component from service for the conditions below.
- Posts and bases: bending, cracks, corrosion, or coating breakdown.
- Clamping / grabbing mechanism: full travel, secure clamp, no slipping under hand load.
- Rails and toe boards: secure seating in the post slots, no damage.
- Fasteners and adjusters: present, functional, torqued per the manual.
- Markings: labels must be present and legible.
Remove any component from service that fails inspection. After any impact or load event, inspect the full system before reuse. Guardrail is passive protection - a damaged system gives false confidence.
Frequently Asked Questions
Frontline GUP2X4 Submittals and Documentation
Frontline GUP2X4 Spec Sheet (PDF)Clamp range, height, materials, finishes, and standards. Frontline GUP2X4 User Manual (PDF)Installation, spacing, inspection, and OSHA guardrail compliance. Frontline GUP2X4 Test Report (PDF)Third-party test results for the parapet guardrail system. Frontline Catalog (PDF)The full Frontline Fall Protection product catalog.Compatible and Related Products
