GUS-FXD Guardrail System for Concrete or Steel Substrates
The Frontline GUS-FXD is the fixed-install version of the Frontline guardrail line: where a non-penetrating weighted base is not wanted, this system drills onto concrete or bolts onto steel for a permanent 42 in guardrail that does not move.
Available in 5 ft, 7.5 ft, and 10 ft lengths, the ASTM steel rails slide into two fittings and lock with grub screws; the electrostatic safety green finish keeps the edge visible. The galvanized fittings and painted rails meet the OSHA guardrail criteria of 1926 and 1910 - permanent edge protection installed in minutes.
Product Video
See the Frontline non-penetrating guardrail system protect roof edges and openings as passive fall protection.
Who Needs This Product
This product is a fixed (permanent-install) passive guardrail for concrete or steel substrates - the choice where the edge protection stays put. Facilities and GCs install it at permanent roof edges, mezzanines, and pits where a weighted base is not wanted.

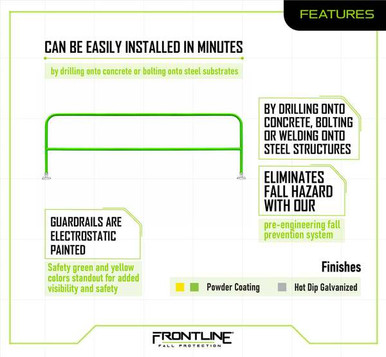

Features
Permanent edge protection
Drills to concrete or bolts to steel where the rail should stay.
Three lengths
5, 7.5, and 10 ft sections fit your run.
Fast install
Rails slide into two fittings and lock with grub screws.
OSHA-height
42 in guardrail meeting the load criteria.
Galvanized fittings
Corrosion-resistant mounting hardware.
High-visibility rails
Electrostatic safety green finish.
Technical Specifications
| SKU | GUS05 / GUS75 / GUS10-FXD (GRN or YLW) |
|---|---|
| Type | Fixed-install guardrail system for concrete or steel |
| Lengths | 5 ft, 7.5 ft, 10 ft |
| Guardrail height | 42 in |
| Material | ASTM rated steel |
| Guardrail finish | Electrostatic paint, safety green |
| Fittings | Galvanized; includes two fittings |
| Installation | Drill onto concrete or bolt onto steel; rails secured with grub screws |
| Standards | OSHA 1926; OSHA 1910 |
Passive protection, installed right. A guardrail only protects if every base, post, rail, and toe board is set per the Frontline manual on a suitable surface. Have a competent person verify the installed system before it is relied upon, and re-inspect after any impact.
Compliance Standards
OSHA 29 CFR 1926.502
Guardrail system criteria for construction: 200 lb top-rail load, heights, and toe boards.
OSHA 29 CFR 1910.29
Walking-working surface guardrail requirements for general industry.
Engineered design
Components are engineered to meet the applicable OSHA guardrail load criteria per the spec sheet.
Typical Applications
How to Set Up the GUS05-FXD
Follow the manufacturer's manual. The sequence below is an overview only.
- Inspect. Check bases, posts, rails, and fittings before each use.
- Plan the run. Lay out base/post positions per the manual maximum spacing for your edge.
- Set the bases. Place the non-penetrating bases (or clamp/anchor per the system) along the edge.
- Install posts and rails. Slide posts into the base fittings and seat top rails, mid rails, and toe boards.
- Secure. Tighten grub screws and connections per the manual.
- Verify. Have a competent person confirm the system before relying on it.
Inspection and Retirement
Inspect before each use and after any impact. Pull any component from service for the conditions below.
- Posts and bases: bending, cracks, corrosion, or coating breakdown.
- Clamping / counterweight: secure, no slipping under hand load.
- Rails and toe boards: secure seating in the fittings, no damage.
- Fasteners and grub screws: present, functional, tightened per the manual.
- Markings: labels must be present and legible.
Remove any component from service that fails inspection. After any impact or load event, inspect the full system before reuse. Guardrail is passive protection: a damaged system gives false confidence.
Frequently Asked Questions
Frontline GUS05-FXDGRN Submittals and Documentation
Frontline GUS Guardrail User Manual (PDF)Installation, spacing, inspection, and OSHA compliance. Frontline Guardrail System Brochure (PDF)Overview of the Frontline non-penetrating guardrail system line. Frontline Catalog (PDF)The full Frontline Fall Protection product catalog.Compatible and Related Products
- Frontline GUS05 Complete Guardrail Kit. A complete bases-plus-rails kit.
- Frontline GUC2X4 Slab Grabber. A clamp-on guardrail for concrete slab edges.
- Frontline GUP2X4 Parapet Guardrail. A parapet-wall clamp guardrail.
Railing Off an Edge or Opening?
Guardrail layouts depend on your edge, substrate, and span. Confirm your jobsite conditions with us and we will walk through the guardrail lineup so the right bases, posts, and rails ship together.
Call 863-703-4522 to talk to a fall protection specialist.
