GUTO 10 ft Guardrail Toe Board
The Frontline GUTO is a 10 ft guardrail toe board that completes a guardrail run: it drops into the toe board slots on the Frontline guardrail posts to form a continuous barrier at deck level, stopping tools, fasteners, and debris from being kicked off the edge onto anyone below.
Required by OSHA wherever workers or equipment can pass below a railed edge, the ASTM steel toe board comes in safety green, safety yellow, or hot-dip galvanized to match your system. Built to OSHA 1926.502 and 1910.29 - the falling-object half of a complete guardrail.
Product Video
See the Frontline non-penetrating guardrail system protect roof edges and openings as passive fall protection.
Who Needs This Product
This product is a guardrail toe board - the low barrier at deck level that stops tools, materials, and debris from being kicked off a railed edge onto workers below, and satisfies the OSHA toe board requirement on a guardrail system.

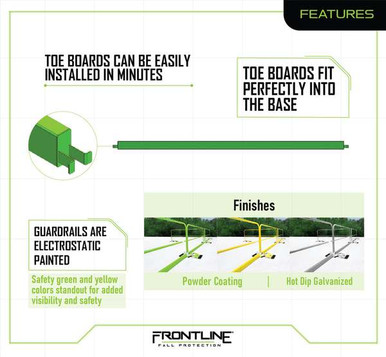

Features
Stops falling objects
A deck-level barrier that keeps tools and debris on the work side.
Drop-in install
Seats directly into the guardrail post toe board slots.
Meets OSHA
Satisfies the toe board requirement on a guardrail where workers pass below.
10 ft length
Spans a full guardrail bay.
Finish to match
Safety green, yellow, or hot-dip galvanized.
Completes the rail
The falling-object protection half of a guardrail system.
Technical Specifications
| SKU | GUTO10GRN / GUTO10YLW / GUTO10HDG |
|---|---|
| Type | Guardrail toe board |
| Length | 10 ft |
| Mount | Drops into the guardrail post toe board slots |
| Material | ASTM rated steel |
| Finishes | Safety green, safety yellow, or hot-dip galvanized |
| Standards | OSHA 1926.502; OSHA 1910.29 |
Passive protection, installed right. A guardrail only protects if every base, post, rail, and toe board is set per the Frontline manual on a suitable surface. Have a competent person verify the installed system before it is relied upon, and re-inspect after any impact.
Compliance Standards
OSHA 29 CFR 1926.502
Guardrail system criteria for construction: 200 lb top-rail load, heights, and toe boards.
OSHA 29 CFR 1910.29
Walking-working surface guardrail requirements for general industry.
Engineered design
Components are engineered to meet the applicable OSHA guardrail load criteria per the spec sheet.
Typical Applications
How to Set Up the GUTO10
Follow the manufacturer's manual. The sequence below is an overview only.
- Inspect. Check bases, posts, rails, and fittings before each use.
- Plan the run. Lay out base/post positions per the manual maximum spacing for your edge.
- Set the bases. Place the non-penetrating bases (or clamp/anchor per the system) along the edge.
- Install posts and rails. Slide posts into the base fittings and seat top rails, mid rails, and toe boards.
- Secure. Tighten grub screws and connections per the manual.
- Verify. Have a competent person confirm the system before relying on it.
Inspection and Retirement
Inspect before each use and after any impact. Pull any component from service for the conditions below.
- Posts and bases: bending, cracks, corrosion, or coating breakdown.
- Clamping / counterweight: secure, no slipping under hand load.
- Rails and toe boards: secure seating in the fittings, no damage.
- Fasteners and grub screws: present, functional, tightened per the manual.
- Markings: labels must be present and legible.
Remove any component from service that fails inspection. After any impact or load event, inspect the full system before reuse. Guardrail is passive protection: a damaged system gives false confidence.
Frequently Asked Questions
Frontline GUTO10GRN Submittals and Documentation
Frontline GUS Guardrail User Manual (PDF)Installation, inspection, and OSHA compliance. Frontline Guardrail System Brochure (PDF)Overview of the Frontline non-penetrating guardrail system line. Frontline Catalog (PDF)The full Frontline Fall Protection product catalog.Compatible and Related Products
- Frontline GUB56 Guardrail Base. The 56 lb non-penetrating base for the system.
- Frontline GUS05 Complete Guardrail Kit. A complete bases-plus-rails kit.
- Frontline GUC2X4 Slab Grabber. A clamp-on guardrail for slab edges.
Railing Off an Edge or Opening?
Guardrail layouts depend on your edge, substrate, and span. Confirm your jobsite conditions with us and we will walk through the guardrail lineup so the right bases, posts, and rails ship together.
