Fall Protection For Champion Standing Seam Roofs

See the Roof Anchor Compatibility Chart for Champion Metal Standing Seam Panels.

Who Is Champion Metal?

Champion Metal, a proud division of Taylor Metal Company, has been a dominant force in the metal roofing and siding industry since 1978. Champion Metal's journey took a pivotal turn in 1985 when it joined forces with Taylor Metal, allowing the company to expand its offerings and resources. Now headquartered in Auburn, Washington, Champion Metal operates across western Washington, serving contractors, architects, and homeowners in the Pacific Northwest.

Champion Metal's product range spans metal roofing systems, siding, and custom fabrication, providing versatile solutions for commercial, residential, and agricultural applications. Known for its innovative manufacturing capabilities, Champion Metal creates high-quality, ENERGY STAR-certified metal roofing and siding products at its Auburn facility, featuring energy-efficient coatings to reduce cooling costs. Each product is crafted with durability and aesthetics, offering exceptional resistance to harsh weather conditions, high winds, and intense UV exposure. Champion Metal's standing seam panels, available in various profiles, are known for their sleek design, longevity, and low maintenance. Champion Metal's approach emphasizes aesthetic appeal and practical benefits, making its metal roofing an ideal choice for projects that demand durability and modern design.

Why Are Non-Penetrating Anchors Critical For Champion Metal Roofs?

The SSRA1 Seam Anchor provides a patented, non-penetrating tie-off solution for worker safety. This high-strength aluminum anchor clamps directly to the standing seam, providing a certified 5,000-lb tie-off point without using screws or nails that puncture the roof surface. It fits approximately 95% of today's standing seam profiles, making it the primary foundation for Champion Metal installations.

Proper Attachment: Set Screws and Torque Requirements

The safety of the SSRA1 system relies on precise installation. We offer two types of set screws based on the roof gauge and project requirements:

• Stainless Steel Cup Point Screws: For use on 22-gauge steel panels. These require a torque setting of 90 inch-pounds.
• Nylon-Tipped Screws: Our testing confirms these are the most effective for locking onto 24-gauge seams. These require a torque setting of 180-200 inch-pounds.

CRITICAL WARNING: Never use an impact gun to install SSRA1 set screws. Over-torquing with an impact driver can crush the standing seam, damage the anchor hardware, and potentially void the roof warranty. Always use a calibrated torque wrench.

The SSRA Component System & Expansion Tools

The SSRA component system serves as a professional-grade modular platform, allowing the SSRA1 to adapt to various job site needs:

SSRA2 Adjustable Roof Jack Adapter: These adapters mount directly to the SSRA1 to support 10-foot walkboards. They are fully adjustable for both roof pitch and seam height, providing a level, stable work surface without penetrating the panels.

SSRA3 Anchor Plates: These serve as the heavy-duty anchor points for horizontal lifeline systems. They provide the standing-seam mounting interface needed to support multiple users on large roof areas.

The Ridge Pro Steep Assist: For projects on slopes between 6:12 and 12:12, the Ridge Pro hooks over the peak to provide a secure tie-off point. It offers an essential, non-penetrating solution for roof inspections and maintenance on lighter 26-gauge panels or alternative substrates where seam clamping is not recommended.

Fall Protection Kits

We provide targeted kits for projects requiring extended mobility and permanent safety:

100-Foot SSRA HLL Kit: Includes the components needed to set up a 100-foot non-penetrating temporary horizontal lifeline using SSRA1 anchors and SSRA3 plates.

120-Foot Super Anchor Permanent HLL Kit: A heavy-duty solution for permanent horizontal safety installations.

---

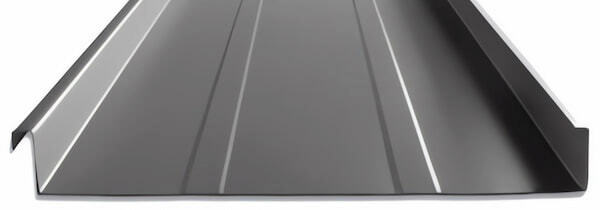

MS-100 Mechanical Panel (SSRA Compatible 22/24-Gauge Steel)

The Champion Metal MS-100 panel offers versatile coverage options in 13-, 17-, and 21-inch widths and can be customized for larger widths upon request. Champion Metal crafts this panel from a range of premium materials, including 26-, 24-, and 22-gauge Tru-Gauge steel, aluminum, and copper. It features a 1-inch vertical rib and a floating clip system to accommodate panel expansion and contraction, ensuring durability and resilience across different climates and temperature fluctuations. Designed for low-slope roofs with a minimum pitch of 1:12, the MS-100 panel is built to withstand severe weather conditions and meets certifications for wind uplift, fire, and impact resistance. Additional options include factory-applied butyl sealant for enhanced weatherproofing, various panel styles, such as striations and accent ribs, and on-site roll-forming capability. With its hidden fasteners and Kynar 500 finish in a wide color selection, the MS-100 panel delivers both durability and aesthetic appeal, making it a dependable choice for roofing projects that prioritize low maintenance and long-lasting color retention. See the Roof Anchor Compatibility Chart for Champion Metal 22 Gauge and 24 Gauge MS-100 Mechanical Standing Seam Panels.

Fall Protection for MS-100 Panel: For 22 and 24-gauge steel MS-100 panels, the SSRA1 Seam Anchor, SSRA2 Adjustable Roof Jack Adapter, and SSRA3 Anchor Plate provide a complete non-penetrating safety solution. These panels support the installation of the 100-Foot SSRA HLL Kit and the 120-Foot Super Anchor Permanent HLL Kit. The SSRA1 clamps securely onto the standing seam without requiring fasteners that might puncture the panel. For projects requiring additional support, the SSRA2 Adjustable Roof Jack Adapter mounts directly onto the SSRA1 Seam Anchor, enabling secure placement of 10-foot walk boards across the roof to provide workers with a stable footing. The SSRA3 Anchor Plate connects two SSRA1 Seam Anchors to support the 100-foot temporary horizontal lifeline. For MS-100 panels made from alternative materials or 26-gauge steel, the Ridge Pro Steep Assist provides an effective solution on roof slopes between 6:12 and 12:12.

MS-150 Mechanical Panel (SSRA Compatible 22/24-Gauge Steel)

The MS-150 panel from Champion Metal is a fully crimped, standing-seam design that offers protection against severe weather while maintaining a sleek aesthetic suitable for residential and commercial projects. Available in 12-, 16-, and 20-inch widths and 26-, 24-, and 22-gauge Tru-Gauge steel, aluminum, and copper. Featuring a 1-½-inch vertical rib and a floating clip system, this panel allows for the natural expansion and contraction of materials, making it an excellent choice for large, continuous roofing surfaces. The MS-150 panel's factory-injected butyl sealant further enhances its water resistance, creating a secure barrier that prevents leaks. Built for low-slope roofs with a minimum pitch of 1:12, the MS-150 has also undergone extensive testing to ensure compliance with high-performance standards, including air and water infiltration, wind uplift, and impact resistance certifications. Available in a range of finishes, the MS-150's Kynar 500 finish offers long-lasting color retention and minimal maintenance. See the Roof Anchor Compatibility Chart for Champion Metal 22 Gauge and 24 Gauge MS-150 Mechanical Standing Seam Panels.

Fall Protection for MS-150 Panel: Steel MS-150 panels in 22 and 24-gauge are fully compatible with the SSRA1, SSRA2, and SSRA3 component systems. This compatibility includes full support for the 100-Foot SSRA HLL Kit and the 120-Foot Super Anchor Permanent HLL Kit. The SSRA1 attaches securely to the standing seam without requiring fasteners that could puncture the panel, preserving the panel's watertight integrity. The SSRA2 Adjustable Roof Jack Adapter allows 10-foot walkboards to be placed across the roof to create a stable work surface. For extensive lateral movement, the SSRA3 Anchor Plate attaches between two SSRA1 Seam Anchors to support the 100-foot temporary horizontal lifeline. For MS-150 panels made from alternative materials, such as aluminum or copper, the Ridge Pro Steep Assist is recommended for roof pitches between 6:12 and 12:12.

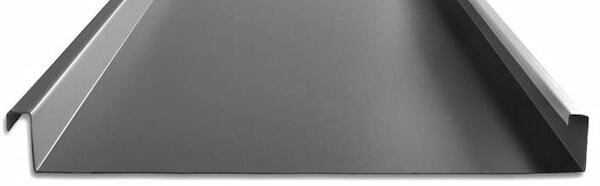

MS-200 Mechanical Panel (SSRA Compatible 22/24-Gauge Steel)

The MS-200 panel by Champion Metal is known for its resilience. The MS-200 features a fully crimped standing seam profile with a 2-inch vertical rib, ideal for long-length roof panels. Champion Metal offers this panel in 12-, 14-, 16-, and 18-inch widths and crafts it from premium Tru-Gauge 24- and 22-gauge steel or aluminum. This panel features a floating clip system that accommodates thermal expansion and contraction, making it reliable for commercial and residential applications with large, continuous roof surfaces. The MS-200 panel is equipped with factory-injected butyl sealant, creating a waterproof seam that prevents leaks. Suitable for roofs with a minimum pitch of ½:12, this panel also offers on-site roll-forming for longer installations. Backed by stringent testing certifications, including UL Class 90 for wind uplift, UL Class A for fire rating, and FM Class 4471 for severe hail and foot traffic resistance, the MS-200 stands up to extreme conditions. See the Roof Anchor Compatibility Chart for Champion Metal 22 Gauge and 24 Gauge MS-200 Mechanical Standing Seam Panels.

Fall Protection for MS-200 Panel: For the MS-200 panel, fabricated from 22- and 24-gauge steel, the SSRA1, SSRA2, and SSRA3 systems provide the recommended non-penetrating setup. These steel panels support both the 100-Foot SSRA HLL Kit and the 120-Foot Super Anchor Permanent HLL Kit. The SSRA1 attaches directly to the standing seam, ensuring the roof's watertight integrity remains intact. The SSRA2 Adjustable Roof Jack Adapter mounts onto the SSRA1 Seam Anchor to allow for the installation of 10-foot walkboards, creating a stable working platform. For expansive roof areas requiring lateral mobility, the SSRA3 Anchor Plate attached between two SSRA1 anchors supports the 100-foot temporary horizontal lifeline. For MS-200 panels made from alternative substrates, such as aluminum or copper, the Ridge Pro Steep Assist provides suitable fall protection for roof pitches ranging from 6:12 to 12:12.

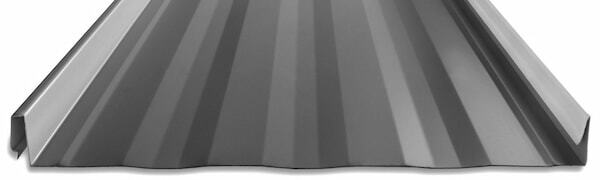

Versa-Span Snaplock Panel (SSRA Compatible 22/24-Gauge Steel)

The Versa-Span panel from Champion Metal provides exceptional strength and versatility, making it an ideal choice for long-length roofing systems. This panel combines steel fluted pans with a lock-action rib design, creating a highly resilient system suitable for low-pitch applications. Champion Metal offers the Versa-Span panel in 12-, 14-, 16-, and 18-inch widths and fabricates the profile from 22- or 24-gauge Tru-Gauge steel or aluminum. It features a 1-3/4-inch vertical rib and a concealed floating clip system that allows for thermal expansion and contraction without compromising the roof's structural integrity. Its minimum pitch requirement is 2:12, with custom on-site roll-forming options for longer panel lengths. See the Roof Anchor Compatibility Chart for Champion Metal 22 Gauge and 24 Gauge Versa-Span Snaplock Standing Seam Panels.

Fall Protection for Versa-Span Panel: For 22 and 24-gauge steel Versa-Span panels, the SSRA1, SSRA2, and SSRA3 systems provide an efficient, non-penetrating solution. These steel panels are compatible with the 100-Foot SSRA HLL Kit and the 120-Foot Super Anchor Permanent HLL Kit. The SSRA1 clamps directly to the standing seam, providing a stable tie-off point while preserving weathertightness. The SSRA2 Adjustable Roof Jack Adapter supports 10-foot walkboards, creating a secure platform for workers. For larger projects, the SSRA3 Anchor Plate spans between two SSRA1 Seam Anchors to support the 100-foot temporary horizontal lifeline. The Ridge Pro Steep Assist is for roof slopes from 6:12 to 12:12 for all other Versa-Span substrates, such as aluminum or copper.

Slim-Lock Snaplock Panel (SSRA Compatible 22/24-Gauge Steel)

The Slim-Lock Standing Seam panel offers a sleek and durable roofing solution with a strong, clean design. Manufactured by Champion Metal, this panel provides a weathertight roof that lasts a lifetime with coverage options of 12-, 16-, and 20-inch in 22- or 24-gauge steel, or aluminum. It utilizes a floating clip system, allowing for expansion and contraction across long panel lengths to maintain integrity in fluctuating temperatures. This panel features a 1-1/2-inch vertical rib, standard factory notching, and concealed fasteners that prevent leaks. Tested to meet UL Class 90 for wind uplift, Class A for fire resistance, and Class 4 for impact resistance, the Slim-Lock panel combines strength and reliability with a Kynar 500 finish for long-lasting color. See the Roof Anchor Compatibility Chart for Champion Metal 22 Gauge and 24 Gauge Versa-Span Snaplock Standing Seam Panels.

Fall Protection for Slim-Lock Panel: For the Slim-Lock panel in 22 and 24-gauge steel, the SSRA1, SSRA2, and SSRA3 products provide a secure, non-penetrating solution. These steel panels are fully compatible with the 100-Foot SSRA HLL Kit and the 120-Foot Super Anchor Permanent HLL Kit. The SSRA1 clamps directly onto the standing seam to establish a stable tie-off point without the need for roof penetrations. The SSRA2 Adjustable Roof Jack Adapter supports 10-foot walk boards to create a safe platform for workers on sloped surfaces. For extended mobility, workers can mount the SSRA3 Anchor Plate atop two SSRA1 seam anchors to support a 100-foot temporary horizontal lifeline. For substrates other than 22 and 24-gauge steel, the Ridge Pro Steep Assist is best for slopes from 6:12 to 12:12.

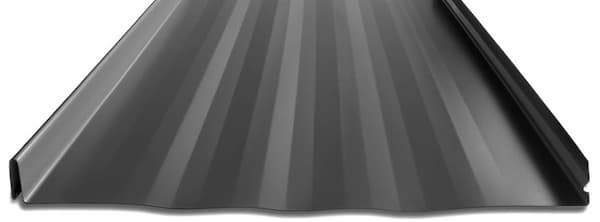

Clip-Lock Snaplock Panel (SSRA Compatible 22/24-Gauge Steel)

Champion Metal offers the Clip-Lock panel with customizable 1-inch or 1.5-inch tall seams. The company fabricates these panels from 22 or 24-gauge Tru-Gauge steel, copper, or aluminum. This snaplock profile requires a minimum roof pitch of 3:12 for proper performance. See the Roof Anchor Compatibility Chart for Champion Metal 22 Gauge and 24 Gauge Versa-Span Snaplock Standing Seam Panels.

Fall Protection for Clip-Lock Panels: For 22 and 24-gauge steel versions, the SSRA1 Seam Anchor, SSRA2 Adjustable Roof Jack Adapter, and SSRA3 Anchor Plate provide a complete non-penetrating safety solution. These panels support the installation of the 100-Foot SSRA HLL Kit and the 120-Foot Super Anchor Permanent HLL Kit. For Clip-Lock panels made from aluminum or copper, the Ridge Pro Steep Assist is the suggested solution for slopes between 6:12 and 12:12.

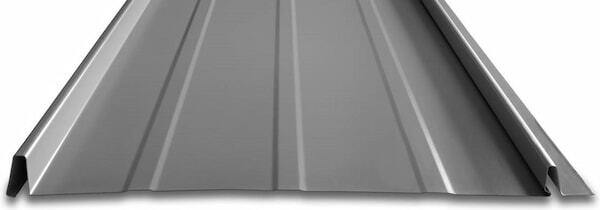

Snap-Loc Nailstrip Panel (Ridge Pro Only)

The Snap-Loc panel from Champion Metal offers a versatile, durable, and sleek roofing solution. Offering 12 inches of coverage per panel, this profile is engineered from 26-gauge Tru-Gauge steel, balancing lightweight construction with exceptional strength. These panels feature a concealed fastener system, eliminating potential leak points. The Snap-Loc design features a 1-inch seam height and allows a minimum slope of 3:12. Designed for simple installation, Snap-Loc provides a cost-effective, low-maintenance solution for long-lasting performance. See the Roof Anchor Compatibility Chart for Champion Metal Snap-Loc Nailstrip Standing Seam Panels.

Fall Protection for Snap-Loc Panel: For the Snap-Loc panel, the Ridge Pro Steep Assist is an excellent option for non-penetrating fall protection on lighter 26-gauge material. The Ridge Pro Steep Assist offers a ridge-mounted, non-penetrating anchor that hooks securely over the roof's peak, providing a stable, OSHA-compliant tie-off point without compromising the Snap-Loc panel's integrity. Ideal for slopes between 6:12 and 12:12, the Ridge Pro Steep Assist is a practical solution that provides workers with reliable fall protection for inspections and maintenance.

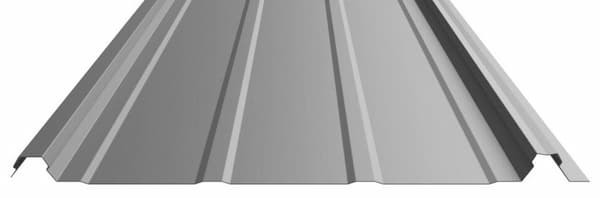

Loc-Rib Nailstrip Panel (Ridge Pro Only)

Champion Metal offers the Loc-Rib concealed fastener panel, which provides 16 inches of coverage and a 7/8-inch seam height. Each panel snaps securely over the adjacent panel, eliminating the need for unsightly exposed fasteners. The exclusive design ensures panels stay locked without the need for seaming tools, washers, or clips, making them a snap to install. Champion Metal produces Loc-Rib in custom cut lengths from 3' to 40' using their exclusive 26-gauge steel, though they offer 24-gauge on special request. This panel requires a minimum roof pitch of 3:12. See the Roof Anchor Compatibility Chart for Champion Metal Loc-Rib Nailstrip Standing Seam Panels.

Fall Protection for Loc-Rib Panels: The Ridge Pro Steep Assist is the required fall protection solution for Loc-Rib panels because it avoids attachment to the profile's unusual seam shape. This ridge-mounted anchor provides 100% tie-off protection for workers on the roof. By securely hooking over the peak, the Ridge Pro ensures OSHA-compliant safety without the need for seam-clamping anchors incompatible with this rib design.

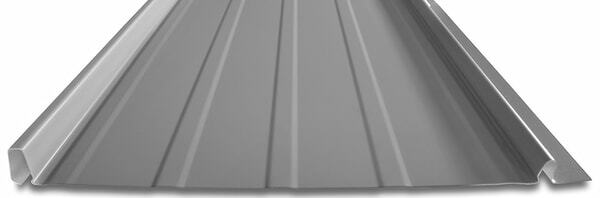

Easy-Lock Nailstrip Panel (Ridge Pro Only)

Champion Metal's Easy-Lock panel is a versatile standing-seam option that delivers robust performance and aesthetic flexibility. This panel has coverage widths of 12 and 16 inches. It is constructed from Tru-Gauge steel in 26, 24, and 22 gauges, with additional options for aluminum and copper. The Easy-Lock panel features a patented no-siphon lock seam, ensuring weathertight performance. The panel features a concealed fastener system and meets rigorous standards, including UL 580 Class 90 for wind uplift and UL 790 Class A for fire resistance. See the Roof Anchor Compatibility Chart for Champion Metal Easy-Lock Nailstrip Standing Seam Panels.

Fall Protection for Easy-Lock Panel: The Ridge Pro Steep Assist is the best option for non-penetrating anchorage on Easy-Lock panels on slopes ranging from 6:12 to 12:12. This ridge-mounted anchor hooks securely over the roof peak, providing a reliable tie-off point without clamping to the seam. The Ridge Pro Steep Assist provides continuous fall protection that meets OSHA standards while preserving the structural integrity of alternative Easy-Lock panel materials.

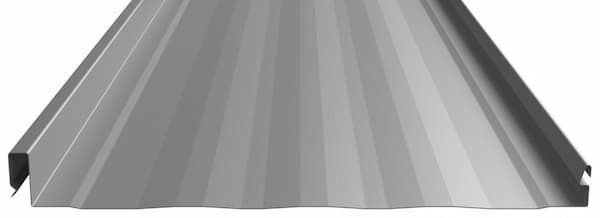

SL-15 Snaplock Panel (Ridge Pro Only)

Champion Metal offers the SL-15 Snaplock panel in 15-inch widths, available in 26- or 24-gauge steel. This profile features a 1.5-inch seam height and provides a clean, durable roofing solution. See the Roof Anchor Compatibility Chart for Champion Metal SL-15 Snaplock Standing Seam Panels.

Fall Protection for SL-15 Panels: The Ridge Pro Steep Assist is the only recommended fall protection solution for the SL-15 panel due to its wide standing seam profile. This ridge-mounted anchor hooks securely over the peak to provide workers with 100% tie-off protection without clamping onto the unique seam shape.

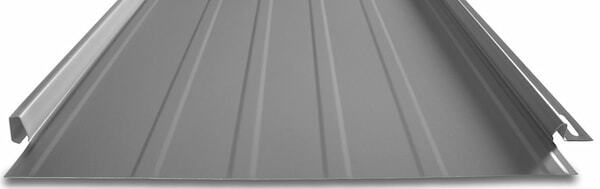

StreamLine Nailstrip Panel (Ridge Pro Only)

Champion Metal's StreamLine 1-inch Standing Seam panel combines performance and design with a patented no-siphon dry lock seam that prevents moisture infiltration. The 16-inch coverage and concealed fasteners provide a streamlined aesthetic and improved structural integrity. The StreamLine panel is manufactured from 26-gauge Tru-Gauge ArmorTech painted steel, delivering lightweight strength and excellent durability. Additional features include a pre-slotted fastener flange for thermal expansion and factory-notched and tabbed panels. See the Roof Anchor Compatibility Chart for Champion Metal StreamLine Nailstrip Standing Seam Panels.

Fall Protection for StreamLine Panel: The Ridge Pro Steep Assist is the best option. This panel's lighter material and seam style are incompatible with SSRA products, making the Ridge Pro Steep Assist an ideal alternative for maintaining structural and aesthetic integrity. The anchor is designed for roof slopes between 6:12 and 12:12 and attaches securely over the roof peak without penetrations, preserving the panel's watertight performance while enhancing safety during inspections or repairs.

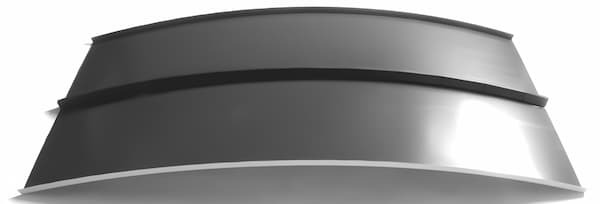

T-Panel Curved Panel (Requires Inspection By Safety Expert)

Champion Metal manufactures the T-Panel in 12- to 20-inch widths and specifically pre-curves them for radius roof applications. This profile blends seamlessly with Easy-Lock panels used for straight roofing areas. Champion Metal fabricates these panels from 22 or 24-gauge steel, aluminum, or copper. It offers both wide and narrow batten cover options to meet various architectural requirements. See the Roof Anchor Compatibility Chart for Champion Metal T-Panel Curved Standing Seam Panels.

Fall Protection for T-Panel Curved Panels: Because of the T-Panel's specialized radius and curved nature, a fall protection specialist must perform an on-site inspection to determine the safest mounting solution. The unique design of radius roofs requires tailored equipment configurations to ensure OSHA compliance and worker safety without compromising the panel's architectural integrity.

---

Standing Seam Roof Anchor Panel Compatibility For 22 Gauge Champion Metal



Standing Seam Roof Anchor Panel Compatibility For 24 Gauge Champion Metal



Standing Seam Roof Anchor Panel Compatibility For Champion Metal Cont.



Contact the Experts in Metal Roof Safety

To select the correct fall protection system for your specific profile, contact our specialists today at 863-703-4522 or visit www.StandingSeamRoofAnchor.com. We are here to help you protect both your workers and your roof's warranty. For more information, you can download OSHA's 48-page Fall Protection Manual and our Anchor Inspection Form.

10 Helpful Fall Protection Tips for Metal Roofs

• Prioritize Non-Penetrating Anchors: Use non-penetrating standing seam anchors, such as the SSRA1, to maintain the weathertight design of your Champion Metal roofing system and avoid voiding structural warranties.
• Verify Metal Gauge Before Clamping: Always confirm the roof is 22-gauge or 24-gauge steel; using seam clamps on lighter gauges can lead to unsafe tie-off points and panel damage.
• Impact Guns Warning: Use a calibrated torque wrench for all installations; impact drivers provide inconsistent torque that can crush standing seams and compromise the anchor hardware.
• Maximize Grip with Nylon-Tipped Screws: For the most secure lock on 24-gauge steel, always use nylon-tipped set screws at 180-200 inch-pounds of torque for superior fall arrest performance.
• Achieve 100% Tie-Off Mobility: Employ the Ridge Pro Steep Assist to ensure OSHA-compliant fall protection while transitioning from the ladder to the roof peak.
• Create Stable Staging Platforms: Integrate SSRA2 Adjustable Roof Jack Adapters to support walkboards, significantly reducing worker fatigue and slip hazards on steep-slope metal roofs.
• Implement Multi-User Horizontal Lifelines: For maximum worker mobility on wide roof areas, deploy the 100-Foot SSRA HLL Kit or the 120-Foot Super Anchor Permanent HLL system.
• Conduct Comprehensive Gear Inspections: Check all full-body harnesses, shock-absorbing lanyards, and seam anchors for signs of wear, deployment, or corrosion before every shift.
• Accommodate Thermal Expansion: Select fall protection anchors that do not impede the floating clip system of panels like the Versa-Span, allowing for natural thermal expansion and contraction.
• Demand Authentic Safety Equipment: Purchase only patented SSRA products from authorized distributors; counterfeit gear lacks the OSHA- and ANSI-certified testing required for jobsite safety.
