Posted by Howie Scarboro - CEO Fall Protection Distributors, LLC on Dec 19th 2023

The Standing Seam Roof Anchor SSRA1 is a groundbreaking innovation in the field of fall protection. It’s state-of-the-art engineering and patented non-penetrating design make it unlike anything else on the market. This revolutionary product is designed to provide a secure anchorage attachment on standing seam roofs without the need for any penetrations, thus minimizing damage to the roof and reducing installation time. With it’s superior performance and unmatched reliability, the SSRA1 offers a new level of safety and peace of mind for workers at height. This product has truly changed the game in fall protection anchorage technology.


The SSRA1 is the foundation of the SSRA HLL 100’ Horizontal Lifeline kit as it provides the non-penetrating attachment to the seams when combined with  SSRA3 Anchor Plates. This provides a rock-solid mounting platform for the Malta Dynamics 100’ Kernmantle horizontal life rope to attach.


SSRA HLL kit for attaching horizontal lifelines to standing seam roof systems.


The SSRA Component System Is A Game-Changer in Fall Protection

The Standing Seam Roof Anchor SSRA1 is a revolutionary fall protection anchorage attachment designed specifically for standing seam roofs. It’s innovative, patented non-penetrating design is a major advancement in roof safety equipment, setting it apart from all other products currently available in the market. The SSRA1 provides unmatched security and peace of mind for workers at height, and it’s engineering has been rigorously tested and approved to meet the highest safety standards. With the SSRA1, companies can ensure the safety of their workers while also benefiting from a product that is easy to install and cost-effective in the long run.

The SSRA3 Anchor Plates are specially designed adapter plates that lock on top of the SSRA1 anchors to provide a strong and durable mounting platform for temporary horizontal lifeline deployment on standing seam roofs. This is a unique ability in the industry as the SSRA HLL kit allows the use of non-scratching kernmantle ropes to be used at foot level on standing seam roofs where steel cable would damage the panel finish.


This brief video explains the benefits of the SSRA3 Roof Plate product.




Ultimate Failure Testing

The SSRA1 was put to the test in a rigorous Ultimate Failure testing at an independent ISO 17025/ANSI Z359.18 certified materials testing facility. The results were nothing short of impressive, as the SSRA1 surpassed all expectations and outperformed its competitors. While the maximum testing protocol for OSHA and ANSI is set at 5,000 lbs, the SSRA1 showcased its remarkable strength by withstanding an astonishing 14,500 lbs of load. In a remarkable display of resilience, the Grade 8 top bolts sheared under the immense pressure, yet the aluminum anchor body remained unscathed. This exceptional performance serves as a testament to the unparalleled strength and durability of the SSRA1.


Patented Structural Design

The patented structural design of the SSRA1 anchor body contributes to its exceptional strength. Crafted from solid 6061-T6 aluminum and featuring 12 stainless steel set screws, it provides unmatched durability in fall protection. The six pairs of opposing set screws surpasses weaker compression designs prone to sliding during impacts. This design ensures stability and prevents movement, enhancing safety during use. This type of load dispersal also requires lower torque on the seam to protect the roof system from damage.

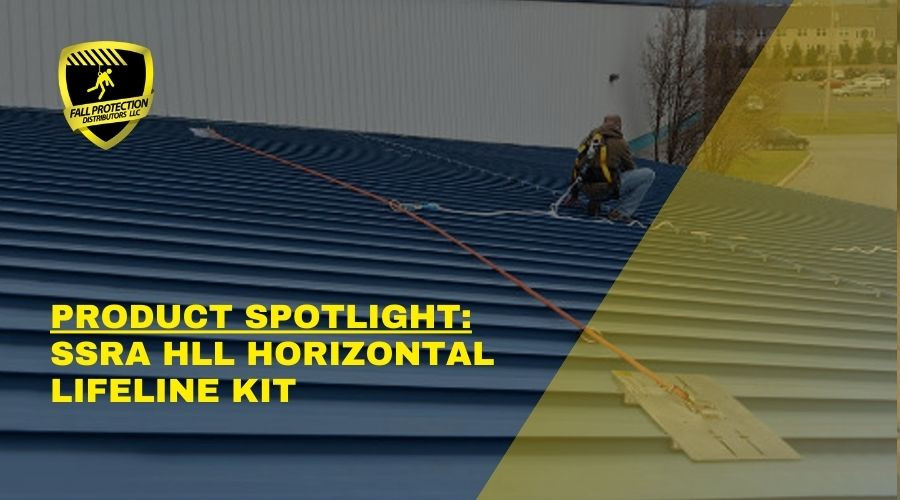

Worker using a SSRA HLL Kit to move freely on a standing seam roof while being anchored.

Panel Compatibility

The SSRA system is designed for steel roof panels, 24 gauge minimum thickness. The SSRA1 is compatible with about 95% of today’s panel profiles:

- For 22 Gauge Panels: Use either the included Cupped Tip or optional Nylon Tip set screws.

- For 24 Gauge Panels: Use Nylon Tip set screws only.


Versatility and Lightness

Weighing only 4.5 lbs, the SSRA1 is the world's lightest OSHA 5,000 lbs certified anchor. It’s universal fit design works on over 500 standing seam panel profiles, making it a versatile solution for different roofing structures.

SSRA1 anchor attached to a standing seam roof without penetrating the metal.

Quick Installation and Lifetime Warranty

The installation process for the SSRA1 and SSRA3 Anchor Plates are incredibly straightforward, requiring only basic hand tools and minimal effort. Whether you need a temporary or permanent attachment, this versatile product has you covered. And with the added assurance of the Lifetime Life Saving Warranty, you can trust that your investment will last for years to come. This warranty provides users with long-term peace of mind, knowing that they are covered in the event of any unforeseen issues. Overall, the SSRA HLL 100’ Horizontal Lifeline kit is not only easy to install and use, but also comes with the added security of a lifetime guarantee.


Corrosion-Resistant and Low-Profile

The SSRA HLL 100’ Horizontal Lifeline kit features non-corrosive aluminum and stainless steel components. It can be powder-coated to match roofs for permanent installations. The low-profile attachment minimizes tripping hazards and is less obtrusive on permanent attachments.


Certified Component System

The SSRA1 is OSHA tested to 5,000 lbs in ALL directions of pull. The SSRA3 Anchor Plate is tested to 10,000 lbs of pull. It allows workers to access both sides of the roof without repositioning the anchor. The ability of this system to adapter to various projects and configurations is the key to it’s value to the contractor, making it a certified component system for mounting anything to a standing seam roof.

SSRA3 Anchor Plate installed on a standing seam metal roof with zero pentrations.

Included in the SSRA 100' Horizontal Lifeline Kit

The SSRA1 anchors are integral to the SSRA 100' Horizontal Lifeline Kit, ensuring a comprehensive solution for fall protection. The kit includes:


Kit Includes:

Conclusion: Unparalleled Safety with SSRA1 Anchors and SSRA 100' Lifeline Kit

The SSRA1 anchors redefine fall protection on standing seam roofs by offering unparalleled strength and a patented design that is compatible with various panel profiles. Four of these anchors are included in the SSRA 100' Horizontal Lifeline Kit, which has been designed to allow the deployment of temporary horizontal lifelines on standing seam roofs without damaging the roof system for the first time in the industry! With the revolutionary design of the SSRA1, individuals can trust in a safer working environment that prioritizes their well-being. The innovative technology and quality construction of this equipment makes it an essential addition to any fall protection system, providing peace of mind and reliable protection for those working at heights on standing seam roofs.

Howie Scarboro, C.E.O. and co-founder of Fall Protection Distributors, L.L.C., recognized the need for continued improvements in roofing safety during the 2010 MetalCon show in Las Vegas. He joined forces with SnoBlox-Snojax, a leader in snow retention and seam clamping technology for metal roofs, to create the SSRA1 prototype. Tested by Gravitec for OSHA/ANSI certifications, the SSRA1 proved to be the industry's lightest, most robust, and most universal-fit anchor point for standing seam roofs. Fall Protection Distributors, L.L.C. was born in 2015, shaping the future of fall protection and instilling confidence in the industry.

!
