3-Way Recovery SRL Bracket
The Malta Dynamics 3-Way Recovery SRL Bracket mounts a confined space rescue and retrieval winch to a standard Malta Dynamics tripod, giving a crew both fall protection and bi-directional winching from a single setup. With the winch bracketed to the tripod, a rescuer can raise or lower a worker to a safe level during a recovery.

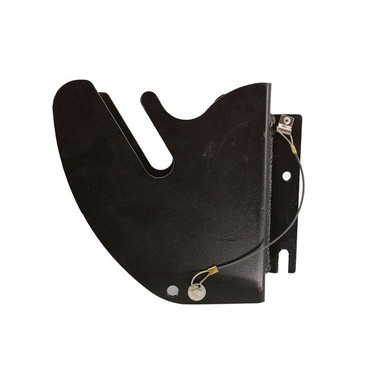

The bracket is built from steel plating in a durable unibody design with a pre-cut slot sized for the rescue and retrieval winch, and it secures to the tripod with an attached, captive locking pin. Engineered for a reliable connection between the tripod and winch, the 3-Way Recovery SRL Bracket is the mounting link in a confined space rescue and retrieval kit.
Who Needs This Product
The 3-Way Recovery SRL Bracket is for crews running confined space rescue and retrieval operations with a tripod-based system. It is the mounting bracket that connects a rescue and retrieval winch to a standard Malta Dynamics tripod so the same setup can provide fall protection and bi-directional winching. This is the bracket only; it is used with a compatible tripod, a rescue and retrieval winch, and the rest of a confined space rescue kit.
Features
Bi-directional winching
Lets a rescuer raise or lower a worker to a safe level during a confined space recovery.
Durable unibody design
A one-piece steel-plated body gives the bracket strength and durability for repeated rescue use.
Captive locking pin
An attached locking pin secures the bracket to the tripod without loose parts to drop or lose.
Pre-cut winch slot
A pre-cut slot is sized to mount the rescue and retrieval winch securely to the tripod.
Tripod compatible
Engineered to mount to a standard Malta Dynamics tripod for confined space use.
Reliable connection
Provides a dependable structural link between the tripod and the winch during retrieval.
Technical Specifications
| SKU | R0008 |
|---|---|
| Type | 3-way recovery self-retracting lifeline bracket for confined space rescue and retrieval |
| Function | Mounts a rescue and retrieval winch to a standard tripod for fall protection and bi-directional winching |
| Material | Steel plating, unibody design |
| Connection | Attached captive locking pin; pre-cut slot for the rescue and retrieval winch |
| Compatibility | Standard Malta Dynamics tripod and a compatible rescue and retrieval winch |
| Weight | 8.6 lb |
| Warranty | 1 year limited (Malta Dynamics) against factory defects in workmanship and materials |
The bracket is one part of a rescue system. The 3-Way Recovery SRL Bracket only mounts a winch to a tripod. It must be used with a compatible tripod, rescue and retrieval winch, and the rest of a confined space rescue kit, set up and operated by trained personnel. Confirm the locking pin is fully engaged and inspect the bracket before each use.
Compliance and Use
Confined space rescue
Supports confined space rescue and retrieval operations as the winch-to-tripod mounting bracket.
OSHA 29 CFR 1910.146
Use within a permit-required confined space program that provides rescue and retrieval capability.
System component
Rated performance belongs to the complete tripod, winch, and rescue kit the bracket is used with.
Manufacturer guidance
Install and use per the Malta Dynamics documentation; the tripod manual is linked in the Submittals section.
Typical Applications
Use Overview
Install and use per the Malta Dynamics tripod and winch documentation. The sequence below is an overview only.
- Inspect. Check the bracket, slot, and locking pin for damage or wear before each use.
- Position. Place the bracket on the tripod leg at the location specified in the manual.
- Lock. Engage the attached captive locking pin and confirm it is fully seated.
- Mount the winch. Seat the rescue and retrieval winch in the pre-cut slot and secure it per the manual.
- Rig the system. Complete the tripod and winch setup, including the worker's connection, with trained personnel.
- Verify. Confirm the full system is rigged correctly before any entry or retrieval.
Inspection and Retirement
Inspect before each use. Remove the bracket from service for any of the conditions below.
- Bracket body: cracks, bends, or deformation in the steel plating.
- Slot: elongation, gouging, or wear that prevents the winch from seating securely.
- Locking pin: a bent, worn, or missing pin, or a pin that will not fully engage.
- Corrosion: rust scale or pitting that compromises the structure.
- Labels: must remain legible and intact.
Retire the bracket after any rescue event that overloads it or any time the steel plating is cracked, bent, or the locking pin will not fully engage. Remove it from service and tag it so it cannot be reused.
