C1004 Dual SRL Connector (2-Pack)

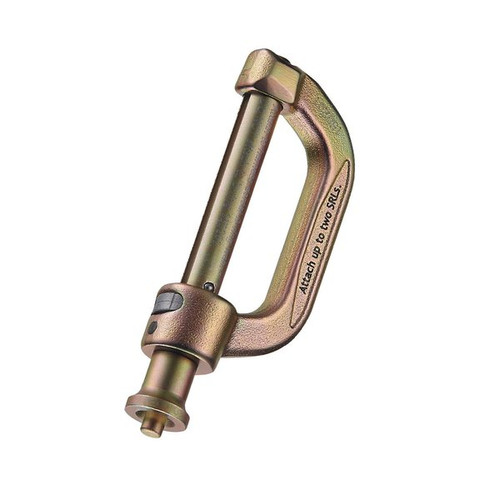

The Malta Dynamics C1004 Dual SRL Connector is a locking dual bracket that attaches up to two self-retracting lifelines directly to the dorsal area of a full body harness for twin-leg, 100 percent tie-off work. It mounts beneath the harness webbing at the dorsal D-ring rather than clipping to the D-ring itself, keeping both SRLs centered and tangle-free.
Forged from zinc-plated alloy steel, the connector has a 5,000 lb minimum breaking strength, a 3,600 lb gate, and a 2.13 inch gate opening. A red lock indicator confirms the bracket is fully closed and locked. It meets ANSI Z359.12-2009 and ANSI A10.32-12 and is OSHA compliant. This listing ships as a 2-pack.
Who Needs This Product
The C1004 is the dorsal attachment hardware for a twin-leg self-retracting lifeline setup, letting a worker keep 100 percent tie-off by clipping one SRL leg to the next anchor before releasing the first. It mounts the SRLs at the harness dorsal location and centers their load. It is a connecting component, not a complete system: each worker still needs an ANSI full body harness, two compatible SRLs, and anchorages rated for the system.
Features
Carries two SRLs
A dual bracket holds up to two self-retracting lifelines for twin-leg, 100 percent tie-off as a worker moves between anchor points.
Mounts at the dorsal webbing
The locking pin installs beneath the harness webbing at the dorsal D-ring, centering both SRLs rather than loading a single D-ring.
Red lock indicator
A red indicator on the sliding pin is fully hidden only when the bracket is closed and locked, giving a clear go or no-go check.

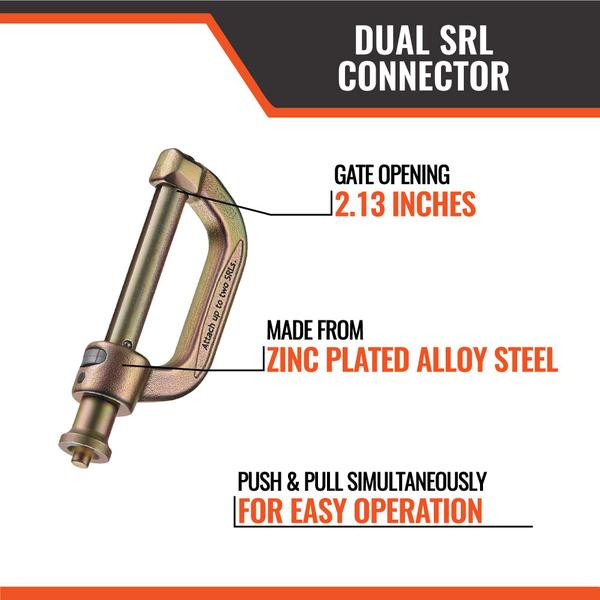

2.13 in gate opening
A wide 2.13 inch opening accepts the integral connection eyes of compatible SRLs without an added carabiner.
5,000 lb breaking strength
A 5,000 lb minimum breaking strength and 3,600 lb gate meet the strength thresholds for fall protection connectors.
Corrosion-resistant build
Zinc-plated alloy steel resists rust and corrosion through repeated reuse in hot and cold jobsite conditions.
Technical Specifications
| SKU | C1004-2PK (single connector part number C1004) |
|---|---|
| Pack quantity | 2 connectors |
| Type | Locking dual bracket SRL connector |
| SRL capacity | Up to 2 self-retracting lifelines per dual bracket |
| Worker capacity | 130 to 310 lb per user, including tools and equipment |
| Minimum breaking strength | 5,000 lb |
| Gate strength | 3,600 lb |
| Gate opening | 2.13 in |
| Material | Zinc-plated alloy steel |
| Lock indicator | Red indicator hidden when locked |
| Operation | One-hand, two-action release |
| Compliance | OSHA 1926; ANSI Z359.12-2009; ANSI A10.32-12 |
| UPC | 852492006950 |
| Warranty | 1 year limited (Malta Dynamics) against factory defects in workmanship and materials |
Install the dual bracket correctly or it will not protect you. Attach SRLs to the fixed forged bracket loop, not the sliding pin side, and never connect SRLs to the dual bracket with carabiners. Install the locking pin beneath the harness webbing, never directly to the harness D-ring. Confirm the red indicator is fully hidden before use, and remove the connector from service after any fall.
Compliance Standards
ANSI Z359.12-2009
American National Standard for connecting components of personal fall arrest systems.
ANSI A10.32-12
ANSI/ASSP standard for fall protection systems in construction and demolition.
OSHA 29 CFR 1926.502
Construction fall protection criteria, including 100 percent tie-off and connector requirements.
OSHA 29 CFR 1910.66
General industry personal fall arrest system component requirements.
Typical Applications
Installation Overview
Install the C1004 per the Malta Dynamics Connectors user instruction manual. The sequence below is an overview only.
- Inspect. Check the bracket, pin, lock indicator, and frame before each use.
- Open the bracket. Simultaneously press the release button at the end of the pin and at the bracket loop.
- Install SRLs. Attach up to two compatible SRLs directly to the fixed forged bracket loop, not the sliding pin side and never with carabiners.
- Mount at the dorsal. Insert the locking pin beneath the harness webbing at the dorsal D-ring location, never to the D-ring itself.
- Lock. Fully close and lock the bracket; confirm the red indicator on the sliding pin is completely hidden.
- Verify clearance. Confirm fall clearance below the work surface for each SRL before work begins.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least every six months. Remove the connector from service for any of the conditions below.
- Bracket: cracks, deformation, deep gouges, or corrosion beyond surface discoloration.
- Locking pin: does not seat, does not lock, or the red indicator remains visible when closed.
- Release buttons: stick, fail to spring back, or operate incorrectly.
- Bracket loop: nicks, burrs, sharp edges, or elongation where SRLs attach.
- Markings: capacity and standard markings must remain legible.
Retirement triggers: any fall-arrest event, any cracked or deformed bracket, any failure of the lock indicator to confirm a locked state, or exposure to chemicals or heat beyond the manual limits. A connector exposed to a fall must be retired even if it appears undamaged.
