SRL Harness Connector, Dual Lock Steel, 2-Pack

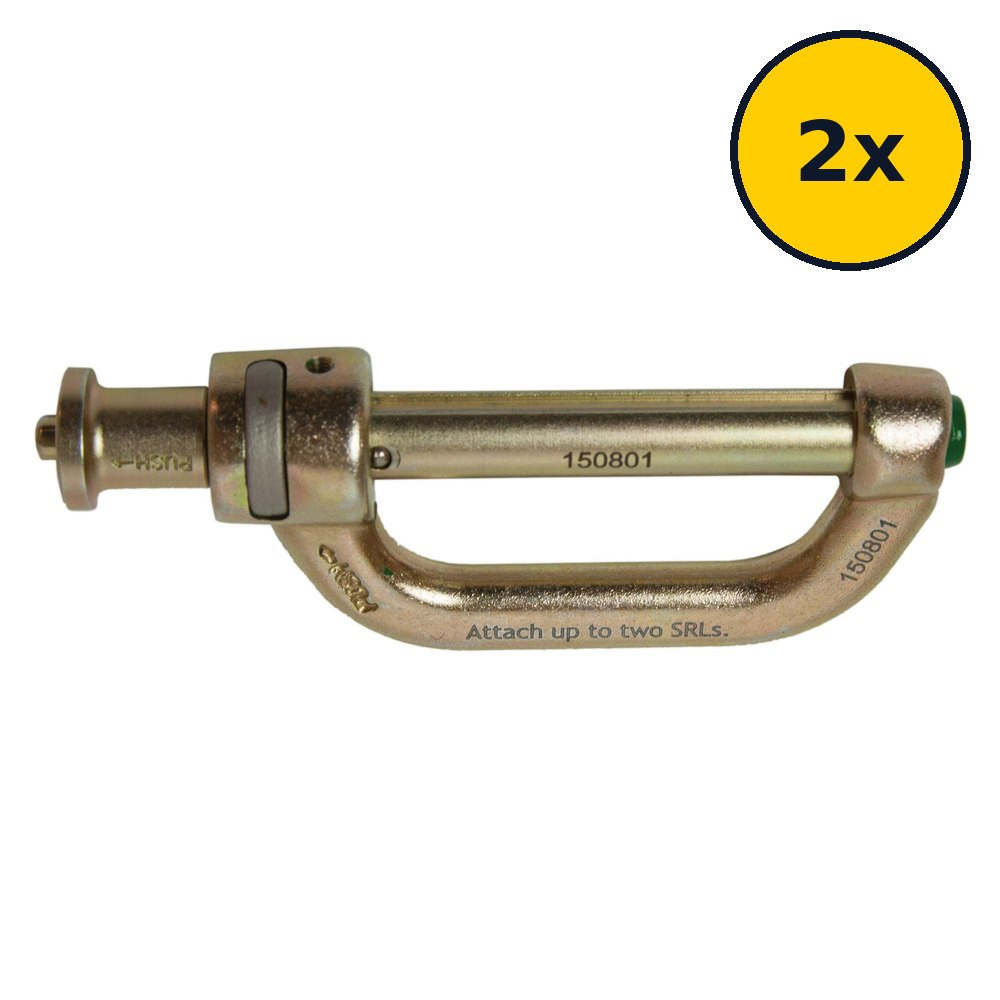

The Guardian 11058 mounts a personal SRL to the harness: a dual-locking zinc-plated steel connector in high-visibility yellow that joins the SRL housing to the dorsal D-ring or SRL loop, keeping the retractable riding correctly on the worker's back.
Used per the SRL and harness manuals within systems compliant with OSHA 1926.502 and 1910.140. Sold as a 2-pack.
Who Needs This Product
Personal SRLs need a proper interface to the harness, and improvised links are exactly what the dual-lock connector replaces: two deliberate actions to open, rated geometry for housing-to-D-ring loads, and yellow visibility for the pre-use check. Series 3 harnesses pair it with the built-in SRL loop.
Features
Lightweight
Lightweight
Durable
Durable
Easy to use
Easy to use
Compatible with Guardian Diablo Web SRL and 11'
Compatible with Guardian Diablo Web SRL and 11' Edge Web SRL
Jobsite-grade construction
Built with the materials and finish quality Guardian applies across its height safety line.
Documented compliance
Full manufacturer documentation is linked on this page for submittal packages.
Technical Specifications
| SKU | 11058-2PK |
|---|---|
| Worker capacity | 130-420 lbs. including all clothing, tools, and equipment |
| Materials | Zinc-Plated Steel |
| Product weight | 0 lbs |
| Dimensions | 4 in L x 2 in W x 1 in H |
| Standards | OSHA 1910.140, OSHA 1926.502, ANSI Z359.14-2021, ANSI A10.32-2023 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Class rating decides the anchor location. Class 1 SRLs anchor at or above the dorsal D-ring only; Class 2 SRLs are additionally rated for at-foot anchorage and leading edge exposure per ANSI Z359.14-2021. Check the fall clearance chart on the device label for your anchor height before work begins.
Compliance Standards
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.502
This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.
ANSI Z359.14-2021
This product is compliant with ANSI Z359.14-2021 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Use Overview
Use must follow the Guardian SRL instruction manual. The sequence below is an overview only.
- Inspect first. Check the housing, lifeline, load indicator, and hooks before every use.
- Test retraction. Pull the line and let it retract under control; confirm smooth payout and positive lock when jerked sharply.
- Anchor per class. Class 1 devices anchor at or above the dorsal D-ring; Class 2 devices may anchor at foot level per the manual.
- Connect the worker. Attach the lifeline hook to the harness per the manual and confirm the gate locks.
- Check clearance. Verify fall clearance using the chart on the label for your anchor height.
- Work in line. Stay in line with the anchor to minimize swing fall exposure.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the SRL from service for any of the conditions below.
- Lifeline: cuts, fraying, kinks, broken wires, or contamination along the full working length.
- Retraction: hesitation, slack line, or failure to lock under a sharp pull.
- Load indicator: any deployment showing.
- Housing and swivel: cracks, deformation, corrosion, or binding.
- Hooks: cracks, deformation, or gates that do not close and lock automatically.
Retirement triggers: any fall arrest event, a showing load indicator, retraction or locking failure, or any condition where the inspector cannot positively verify the device is fit for service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Guardian 11058 SRL Connector, Dual Lock Steel, 2-Pack Submittals and Documentation
Guardian 11058 Manual (PDF)Installation, use rules, and inspection criteria from the manufacturer.Guardian 11058 Doc Of Conformity (PDF)Manufacturer declaration of conformity.Guardian 11058 Inspection Form (PDF)Printable competent-person inspection checklist.Compatible and Related Products
- Guardian 10900 Halo 11 ft Web SRL. The compact web SRL for overhead anchorage.
- Guardian 00101 Beamer 2000 Beam Anchor. Pivoting beam anchorage for these SRLs.
- Guardian 10733 Suspension Trauma Strap 4-Pack. Post-fall relief for every harness on the crew.
Choosing the Right SRL Class and Length?
Anchor height, edge exposure, and clearance decide the device. Confirm your setup with us and we will make sure the right equipment ships together, based on the delivery location.
Call 863-703-4522 to talk to a fall protection specialist.
Guardian Fall Protection Manufacturer Warranty
Guardian warrants to the purchaser that all products are free from defects in material, workmanship, and design (when the design is Guardian's responsibility). This warranty does not cover conditions resulting from normal wear and tear, neglect, abuse, accident, or otherwise. Guardian's obligations under this warranty apply for the lifetime of the product and are limited to the replacement of the product only.
This warranty is not transferable and does not apply to product that is resold after having been put into service. The warranty is void if the product is changed or altered in any way, or if the product is used in a manner other than for which it is intended. No other person, firm, or entity is authorized to assume or assign for Guardian any other liability in connection with the sale or use of Guardian products. There are no implied warranties of merchantability or fitness for a particular purpose.
Source: Guardian Standard Terms and Conditions of Sale, Doc. 102 v3.0. Contact Guardian customer service at +1 (800) 466-6385 or through guardianfall.com for warranty claims and product support.
