C1000 High Strength Steel Locking Carabiner (4-Pack)

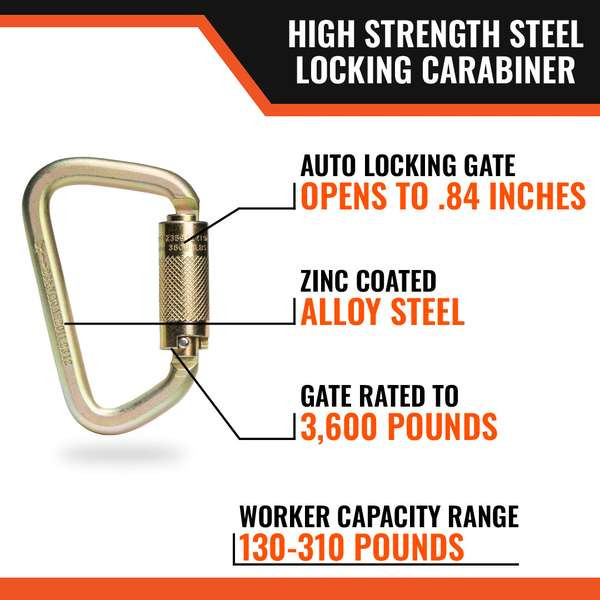

The Malta Dynamics C1000 is a quarter-turn self-locking steel carabiner that connects a lanyard, lifeline, or self-retracting lifeline to a compatible anchorage or harness D-ring. It is self-closing and self-locking, opens with one hand, and its ANSI-tested gate is rated to withstand face and side loads up to 3,600 lb.
Forged from zinc-plated alloy steel, the C1000 has a 5,000 lb minimum breaking strength and a 0.84 inch gate opening. It meets ANSI Z359.12-2009 and ANSI A10.32-12 and is OSHA compliant. This listing ships as a 4-pack so a crew can keep a locking connector on every harness, lanyard, and lifeline.
Who Needs This Product
The C1000 is a connector, the hardware that links the components of a personal fall arrest or restraint system. It clips a shock-absorbing lanyard, self-retracting lifeline, or rope grab lanyard to an anchorage connector or to a harness D-ring. A self-locking gate is required by OSHA and ANSI for fall protection connectors so the gate cannot roll open under load. Each worker still needs an ANSI full body harness, an anchorage rated for the system, and a compatible connecting device.
Features
Self-closing, self-locking
A quarter-turn barrel and spring-loaded gate require two deliberate actions to open, then snap closed and lock on their own so the connector cannot roll-out under load.
One-hand operation
The gate opens and locks with a single hand, so a worker can connect and disconnect while keeping the other hand on the structure or load.
3,600 lb gate strength
The gate is ANSI-tested to withstand face and side loads up to 3,600 lb, well beyond the rollout strength most connectors are required to carry.
5,000 lb breaking strength
A 5,000 lb minimum breaking strength meets the OSHA anchorage-connector strength threshold for personal fall arrest.
Corrosion-resistant build
Heavy-duty alloy steel with zinc plating resists rust and corrosion through repeated jobsite use in hot and cold conditions.
Independently verified
Backed by a Malta Dynamics Declaration of Conformity with third-party testing performed under ISO 17025 accreditation.
Technical Specifications
| SKU | C1000-4PK (single carabiner part number C1000) |
|---|---|
| Pack quantity | 4 carabiners |
| Type | Quarter-turn self-locking steel carabiner connector |
| Minimum breaking strength | 5,000 lb |
| Gate strength | 3,600 lb (face and side load) |
| Gate opening | 0.84 in |
| Worker capacity | Use within the rated capacity of the connected harness and system |
| Material | Zinc-plated alloy steel |
| Locking action | Self-closing and self-locking, two-action quarter-turn gate |
| Operation | One-hand |
| Product weight | 0.6 lb each |
| Compliance | OSHA compliant; ANSI Z359.12-2009; ANSI A10.32-12 |
| UPC | 852492006981 |
| Warranty | 1 year limited (Malta Dynamics) against factory defects in workmanship and materials |
A connector is only one link in the system. The C1000 must be used with an ANSI full body harness, a compatible connecting device, and an anchorage rated for the system. Never connect two carabiners gate-to-gate, never load the gate, and always confirm the gate is fully closed and locked before relying on the connection. Inspect before every use and remove any connector from service after a fall.
Compliance Standards
ANSI Z359.12-2009
American National Standard for connecting components of personal fall arrest systems, including connector gate strength.
ANSI A10.32-12
ANSI/ASSP standard for fall protection systems used in construction and demolition operations.
OSHA 29 CFR 1926.502
Construction fall protection criteria, including connector and snap-hook requirements.
OSHA 29 CFR 1910.66
General industry personal fall arrest system component requirements.
Typical Applications
Use and Connection Overview
Use the C1000 per the Malta Dynamics Connectors user instruction manual. The sequence below is an overview only.
- Inspect. Check the gate, barrel, frame, and locking action before each use.
- Open. Twist the quarter-turn barrel, then pull the gate open with one hand.
- Connect. Clip the carabiner to a compatible anchorage connector or harness D-ring, never gate-to-gate with another connector.
- Lock. Release the gate and confirm it springs fully closed and the barrel relocks.
- Verify. Confirm the connection is captured, the gate is not loaded, and the connector cannot roll out.
- Plan clearance. Confirm fall clearance below the work surface before work begins.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least every six months. Remove the connector from service for any of the conditions below.
- Gate: does not fully close, does not self-lock, or sticks when operated.
- Frame: cracks, deformation, deep gouges, or corrosion beyond surface discoloration.
- Barrel: worn, damaged, or failing to return to the locked position.
- Markings: capacity and standard markings must remain legible.
- Wear: any sharp edges, burrs, or nicks at load-bearing surfaces.
Retirement triggers: any fall-arrest event, any cracked or deformed frame, any gate or barrel that fails to self-lock, or exposure to chemicals or heat beyond the manual limits. A connector exposed to a fall must be retired even if it appears undamaged.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Malta Dynamics C1000 Submittals and Documentation
C1000 Spec Sheet (PDF)Gate strength, breaking strength, gate opening, materials, and compliance summary. Malta Dynamics Connectors User Manual (PDF)Use, connection, compatibility, inspection, and warning instructions for Malta connectors. C1000 Declaration of Conformity (PDF)Conformity statement with ISO 17025 third-party test verification.Compatible and Related Products
- Malta Dynamics C1002 Tower Hook Carabiner (3-Pack). A larger carabiner with a wider gate for towers and large structural members.
- Malta Dynamics C1004 Dual SRL Connector (2-Pack). A dual-leg bracket connector for attaching twin SRLs to a harness.

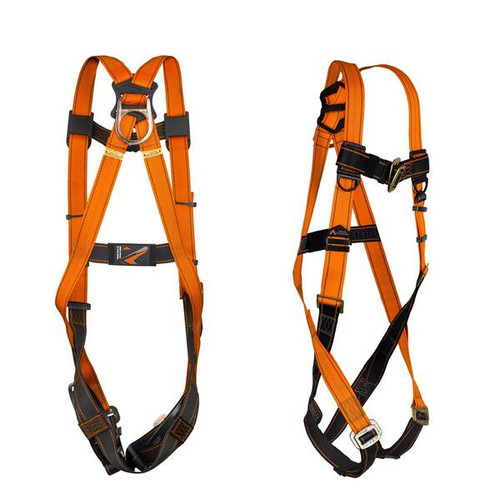

- Malta B2002 Warthog Full Body Harness. ANSI full body harness with D-rings to complete the personal fall arrest system.
