Malta Dynamics apex type 2 class e full brim helmet white
Malta Dynamics

Malta Dynamics APEX Type 2 Class E Full Brim Safety Helmet (2-Pack, Pick Color)

(No reviews yet) Write a Review
$159.98
Brand:
Malta Dynamics
SKU:
MAPEXE
Availability:
Usually ships within 1 business day
Shipping:
Calculated at Checkout
Adding to cart… The item has been added
American Express Icon American Express Icon Discover Icon Discover Icon Mastercard Icon Mastercard Icon PayPal Icon PayPal Icon Visa Icon Visa Icon
Malta Dynamics Head Protection

Malta Dynamics APEX Type 2 Class E Full Brim Safety Helmet

The Malta Dynamics APEX Type 2 Class E full brim safety helmet combines all-around impact protection with a full perimeter brim and a Class E electrical rating up to 20,000 volts. It is tested for top, side, front, and rear impact and meets ANSI Z89.1-2014 Type 2 Class E, plus EN12492, OSHA 1910, and OSHA 1926.

The full-brim design adds coverage from sun, rain, and falling debris, while a lightweight ABS shell keeps the helmet durable without added bulk. A comfort-fit ratchet suspension adjusts to head sizes 6 1/2 to 8, and an adjustable, removable 4-point chin strap keeps it secure during climbing and overhead work. WaveOn technology gives a tap-to-access record of manuals and certifications.

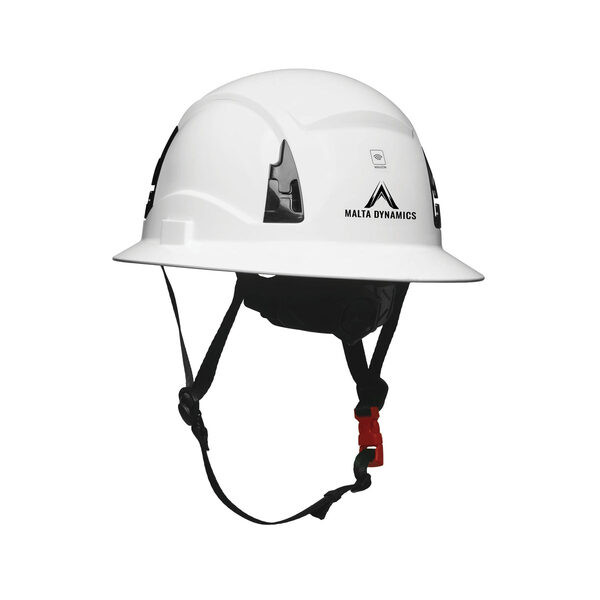

Malta Dynamics APEX Type 2 Class E full brim safety helmet rated to 20,000 volts with ratchet suspension, 4-point chin strap, and WaveOn technology
Type 2Top & Side Impact
Class EElectrical Rating
20,000 VClass E Insulation
360°Full Brim
6.5 - 8Head Size Range
4-PointChin Strap
WaveOnNFC Documentation
3.0 lbHelmet Weight

Who Needs This Product

This Type 2 Class E full brim helmet is head protection for crews who need both all-around impact protection and electrical safety. The Type 2 shell guards against top and lateral impact, the Class E rating protects against accidental contact with energized conductors up to 20,000 volts, and the full brim shades the face and neck and sheds rain. It suits electricians, linemen, and utility crews who also work at height.

Features

Type 2 all-around impact

Tested for top, side, front, and rear impact, so the helmet protects against angled and lateral blows, not just top impact.

Class E to 20,000 volts

Rated to ANSI Z89.1-2014 Type 2 Class E, with electrical insulation tested up to 20,000 volts for utility and electrical work.

360-degree full brim

A full perimeter brim sheds sun, rain, and falling debris and shades the face and neck through the day.

Ratchet suspension

A comfort-fit ratchet suspension dials in a secure fit and adjusts easily to head sizes 6 1/2 to 8.

4-point chin strap

An adjustable, removable 4-point chin strap keeps the helmet secure during climbing, movement, and overhead work.

WaveOn technology

Tap a smartphone to the WaveOn decal for instant access to manuals, certifications, and inspection records with no app required.

Technical Specifications

Product Malta Dynamics APEX Type 2 Class E Full Brim Safety Helmet
Color SKUs HHW3004 (White), HHY3004 (Yellow), HHG3004 (Grey), HHO3004 (Orange)
Style Full brim safety helmet (360-degree brim)
ANSI type and class ANSI Z89.1-2014 Type 2 Class E
Electrical rating Class E; electrical protection up to 20,000 volts
Impact coverage Top, side, front, and back
Shell material Lightweight ABS
Suspension Comfort-fit ratchet suspension
Chin strap 4-point, adjustable, removable
Head size range 6 1/2 to 8
Technology WaveOn NFC for instant access to documentation
Colors White, Yellow, Grey, Orange
Helmet weight 3.0 lb
Compliance ANSI Z89.1-2014 Type 2 Class E; EN12492; OSHA 1910 and OSHA 1926
Warranty 1 year limited (Malta Dynamics) against factory defects in workmanship and materials
⚠

A helmet protects only when worn correctly and undamaged. Fasten the chin strap, keep the ratchet suspension properly adjusted, and never drill, paint, or modify the shell. The Class E rating depends on an intact, unmodified shell. Retire the helmet after any impact or fall event, inspect it before each use, and store it away from heat and direct sunlight per the manual.

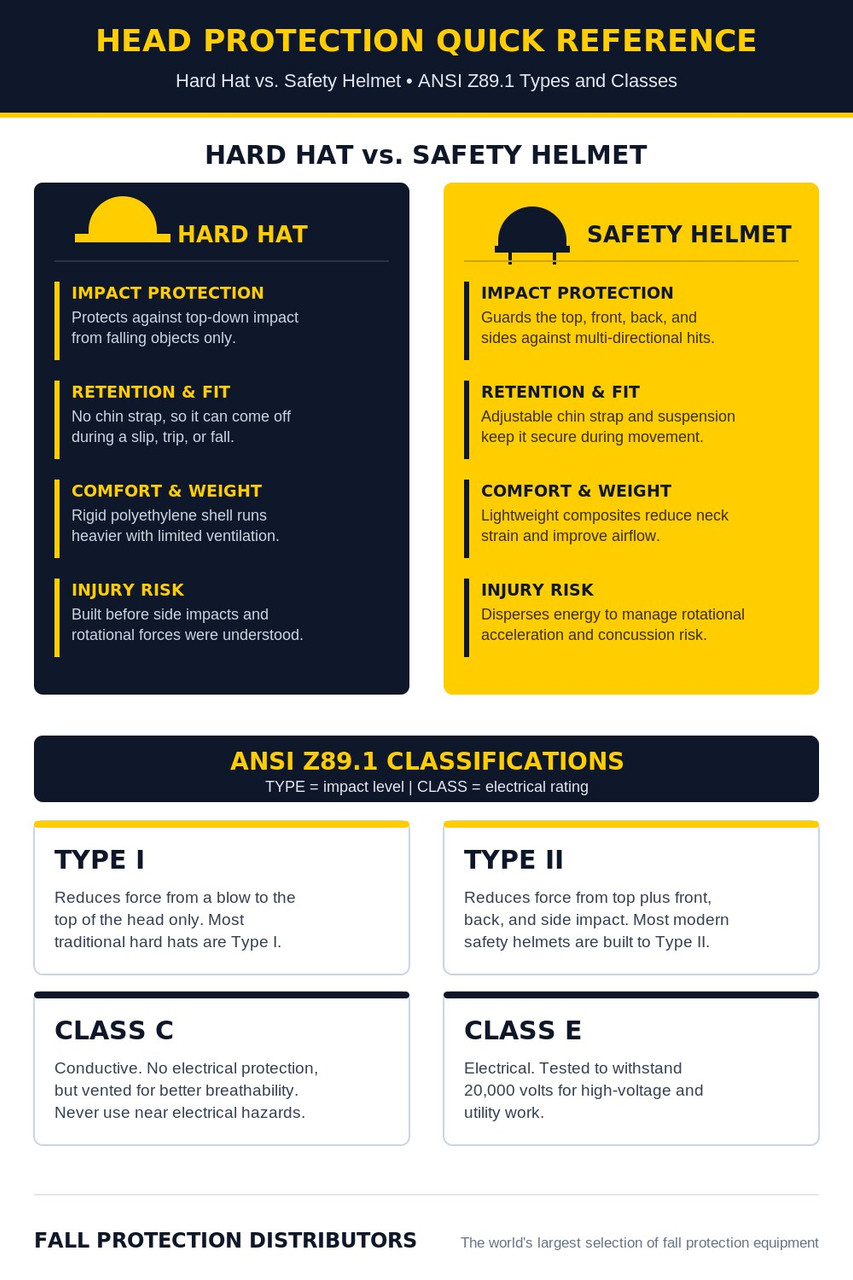

Compliance Standards

ANSI Z89.1-2014 Type 2

Industrial head protection standard; Type 2 helmets reduce force from top and lateral (side, front, rear) impact.

ANSI Z89.1 Class E

Electrical class tested to reduce exposure to high-voltage conductors, with dielectric protection up to 20,000 volts.

EN 12492

European standard for mountaineering and industrial climbing helmets, covering retention and lateral protection.

OSHA 1910 and 1926

Meets the head protection requirements OSHA enforces for general industry and construction.

Typical Applications

Electrical workClass E protection to 20,000 volts for energized environments.
Linemen and utilityAll-around impact plus electrical safety at height.
At-height workChin strap keeps the helmet on during a fall.
Outdoor sitesFull brim shades the face and sheds rain.
Solar installationElectrical-rated head protection for array work.
SubstationsType 2 lateral protection near energized gear.
Safety managementWaveOn NFC streamlines inspection records.
General constructionType 2 protection for crews working below others.

Fit and Wear Overview

Set up and wear per the Malta Dynamics helmet manual. The sequence below is an overview only.

  1. Inspect. Check the shell, brim, suspension, and chin strap for cracks or damage before each use.
  2. Set the suspension. Adjust the ratchet suspension and headband for your head size (6 1/2 to 8).
  3. Fasten the chin strap. Connect and adjust the 4-point chin strap so the helmet stays level and secure.
  4. Confirm electrical use. Verify the shell is intact and unmodified before relying on the Class E rating.
  5. Register with WaveOn. Tap a smartphone to the WaveOn decal to register the helmet and access records.
  6. Store properly. Keep the helmet out of direct sunlight and away from heat between uses.

Inspection and Replacement

Inspect the helmet before each use and remove it from service for any of the conditions below.

  • Shell or brim: cracks, dents, gouges, chalking, or a dull, brittle surface.
  • Electrical integrity: any drilled hole, modification, or damage that compromises the Class E rating.
  • Suspension: a worn ratchet, frayed straps, or any loose attachment point.
  • Chin strap: frayed webbing or a damaged buckle.
  • Impact: any helmet that has taken a blow or been worn in a fall, even with no visible damage.

Retire the helmet after any impact or fall event, and replace the suspension and shell on the schedule in the manual.

Frequently Asked Questions

What ANSI type and class is the APEX Type 2 Class E helmet?
It is an ANSI Z89.1-2014 Type 2 Class E helmet. Type 2 means it is tested for top, side, front, and rear impact, and Class E means it provides electrical protection up to 20,000 volts. It is also compliant with EN12492, OSHA 1910, and OSHA 1926.
How is this different from the APEX Class C helmet?
Both are Type 2 helmets with all-around impact protection. The Class C version is vented and has no electrical rating, while this Class E version is rated for electrical work up to 20,000 volts and uses a full brim shell. Choose Class E for electrical and utility work, Class C for non-electrical jobs that want extra ventilation.
What colors does the Class E full brim come in?
The APEX Type 2 Class E full brim is available in white, yellow, grey, and orange. Select your color from the option menu. The colors help distinguish trades, crew leads, or high-visibility roles on site.
What is the advantage of the full brim design?
The full brim wraps 360 degrees around the helmet, so it shades the face, ears, and neck from sun and channels rain away from the collar. Combined with Type 2 lateral impact protection and the Class E electrical rating, it is well suited to electricians and utility crews who work outdoors.
Does the chin strap keep the helmet on during a fall?
Yes. The adjustable, removable 4-point chin strap keeps the helmet secure during climbing, movement, and overhead work, so it stays on the head during a slip, trip, or fall. This retention is a key reason Type 2 helmets are preferred for at-height work over standard hard hats.
What is WaveOn technology?
WaveOn is a built-in NFC decal. Tap a smartphone to it and the helmet pulls up manuals, certifications, and inspection records with no app required. It streamlines documentation workflows and helps crews and safety managers stay compliant with less effort.
When should I replace the helmet?
Retire and replace the helmet after any impact or fall event, or if the shell or brim shows cracks, dents, gouges, or chalking, or the suspension or chin strap is damaged. Any drilled hole or modification voids the Class E rating. Inspect before each use and follow the helmet manual for service-life and storage guidance.

Malta Dynamics APEX Type 2 Class E Submittals and Documentation

APEX Class E Spec Sheet (PDF)Standards, electrical rating, impact coverage, and specs summary. APEX Helmet Manual (PDF)Fit, chin strap, electrical use, inspection, and care. APEX Class E Declaration of Conformity (PDF)ANSI Z89.1-2014 Type 2 Class E conformity statement.

Compatible and Related Products

Specifying Head Protection for Your Crew?

Need help choosing between Class C and Class E, Type 1 and Type 2, or sorting out colors and quantities for your crew? Tell us your jobsite hazards and headcount and we will help you specify the right helmets so the gear ships together.

Call 863-703-4522 to talk to a safety equipment specialist.

Equipment offered by Malta Dynamics is warranted against factory defects in workmanship and materials for a period of one (1) year from date of installation or first use by the original owner. Upon written notice, Malta Dynamics will repair or replace defective items at its sole discretion. This warranty does not cover damage from wear, abuse, transit, or failure to maintain the product, and applies only to the original purchaser.
