Malta Dynamics APEX Type 2 Class C Safety Helmet

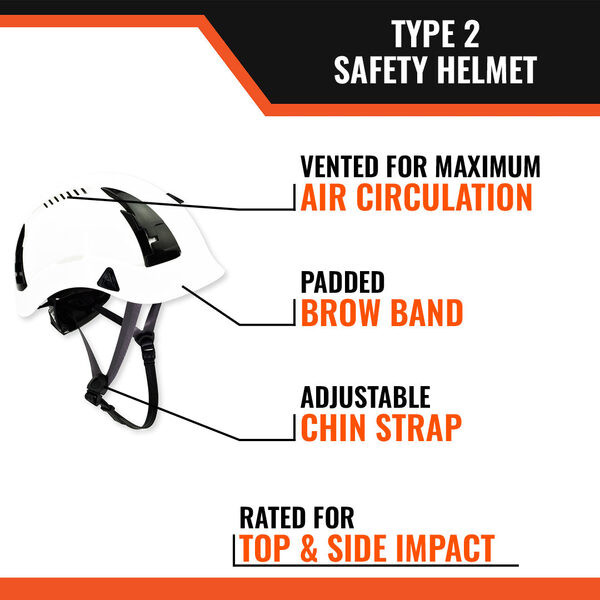

The Malta Dynamics APEX Type 2 Class C safety helmet is built for jobsites where impact can come from any direction. Unlike a traditional hard hat, a Type 2 helmet is tested for top, side, front, and rear impact, and the APEX rides low and secure on a 6-point suspension with a 4-point chin strap that keeps it in place during movement or a fall.
It meets ANSI Z89.1-2014 Type 2 Class C and is compliant with EN12492, OSHA 1910, and OSHA 1926. WaveOn technology lets a worker tap a smartphone to the helmet to pull up manuals, certifications, and inspection records with no app required. Choose from seven colors and an optional clear or tinted flip-up visor.
Who Needs This Product
This Type 2 safety helmet is head protection for crews exposed to lateral and angled impact, slips, trips, and falls, where a traditional top-impact-only hard hat falls short. The Class C designation means the shell is vented for breathability and is not rated for electrical hazards, so it suits non-electrical construction, climbing, and at-height work. The 4-point chin strap and harness-attach loop make it well suited for workers on ladders, lifts, and structures.
Features
Type 2 all-around impact
Tested for top, side, front, and rear impact, so the helmet protects against angled and lateral blows, not just top impact.
6-point suspension
A low-profile 6-point internal suspension with a comfort-adjustable headband fits head sizes 6 1/2 to 8 without a perched feel.
4-point chin strap
An adjustable, removable 4-point chin strap keeps the helmet in place during movement or a fall, with a loop for harness connection.
WaveOn technology
Tap a smartphone to the WaveOn decal to pull up registration, training docs, inspection records, and manuals with no app required.
Optional flip-up visor
Add a clear or tinted flip-up visor rated to ANSI/ISEA Z87.1-2015; the tinted lens is 99 percent UV resistant.
Accessory ready
Integrated lamp clips for elastic headlamps and compatibility with most earmuff and ear-pro attachments.
Technical Specifications
| Product | Malta Dynamics APEX Type 2 Class C Safety Helmet |
|---|---|
| Color SKUs (no visor) | HTY2000 (Yellow), HTB2000 (Black), HTBL2000 (Blue), HTG2000 (Grey), HTO2000 (Orange), HTR2000 (Red), HTW2000 (White) |
| Clear visor SKUs | HT(color)2001 - e.g. HTY2001, HTB2001, HTBL2001, HTG2001, HTO2001, HTR2001, HTW2001 |
| Tinted visor SKUs | HT(color)2002 - e.g. HTY2002, HTB2002, HTBL2002, HTG2002, HTO2002, HTR2002, HTW2002 |
| ANSI type and class | ANSI Z89.1-2014 Type 2 Class C (non-electrical) |
| Impact coverage | Top, side, front, and back |
| Shell material | Durable ABS |
| Suspension | 6-point internal system with comfort-adjustable headband |
| Chin strap | 4-point, adjustable, removable; harness-attach loop |
| Head size range | 6 1/2 to 8 |
| Visor options | None, Clear, or Tinted flip-up visor rated to ANSI/ISEA Z87.1-2015 (tinted 99% UV resistant) |
| Technology | WaveOn NFC for instant access to documentation |
| Colors | Black, White, Grey, Blue, Red, Yellow, Orange |
| Helmet weight | 2.0 lb |
| Compliance | ANSI Z89.1-2014 Type 2 Class C; EN12492; OSHA 1910 and OSHA 1926 |
| Warranty | 1 year limited (Malta Dynamics) against factory defects in workmanship and materials |
Class C is not electrically rated. A Class C helmet is vented for breathability and offers no electrical protection. For work near energized conductors, choose a Class E helmet such as the APEX Type 2 Class E. Always fasten the chin strap, inspect the shell and suspension before each use, and retire the helmet after any impact or fall event.
Compliance Standards
ANSI Z89.1-2014 Type 2
Industrial head protection standard; Type 2 helmets reduce force from top and lateral (side, front, rear) impact.
ANSI Z89.1 Class C
Conductive class; vented for comfort and not intended for electrical protection.
EN 12492
European standard for mountaineering and industrial climbing helmets, covering retention and lateral protection.
OSHA 1910 and 1926
Meets the head protection requirements OSHA enforces for general industry and construction.
Typical Applications
Fit and Wear Overview
Set up and wear per the Malta Dynamics helmet manual. The sequence below is an overview only.
- Inspect. Check the shell, suspension, and chin strap for cracks or damage before each use.
- Set the suspension. Adjust the 6-point internal suspension and headband for your head size (6 1/2 to 8).
- Fasten the chin strap. Connect and adjust the 4-point chin strap so the helmet stays level and secure.
- Add accessories. Mount a clear or tinted visor, headlamp, or earmuffs as needed per the manual.
- Register with WaveOn. Tap a smartphone to the WaveOn decal to register the helmet and access records.
- Store properly. Keep the helmet out of direct sunlight and away from heat between uses.
Inspection and Replacement
Inspect the helmet before each use and remove it from service for any of the conditions below.
- Shell: cracks, dents, gouges, chalking, or a dull, brittle surface.
- Suspension: frayed straps, broken keys, or any loose attachment point.
- Chin strap: frayed webbing, a damaged buckle, or a worn harness-attach loop.
- Impact: any helmet that has taken a blow or been worn in a fall, even with no visible damage.
- Service life: replace per the manufacturer's stated shell and suspension service life.
Retire the helmet after any impact or fall event and replace the suspension and shell on the schedule in the manual.
Frequently Asked Questions
Malta Dynamics APEX Type 2 Class C Submittals and Documentation
