C5000 6 ft Single-Leg External Shock-Absorbing Lanyard with 2 Steel Snap Hooks

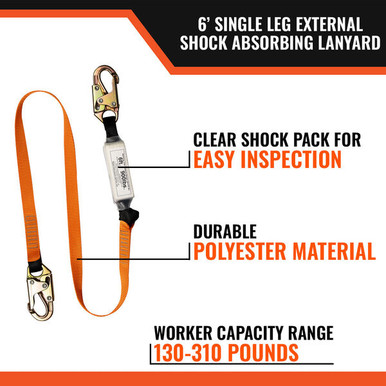

The Malta Dynamics C5000 is a fixed 6-foot single-leg energy-absorbing lanyard with an integrated external shock pack. The pack is a clear, inline component that tears open under load to absorb fall energy and is easy to inspect at a glance, with a maximum arresting force of 900 pounds or less.
It is built from one-inch polyester webbing and finished with two 3,600-lb gate steel snap hooks, tested to ANSI standards. The C5000 meets ANSI Z359.13-2009 and is third-party tested under ISO 17025 in accordance with ANSI testing protocols. This listing ships as a bulk pack, so a crew is outfitted from a single line item.
Who Needs This Product
The C5000 is the connecting device in a personal fall arrest system, with a clear external shock pack that crews can inspect at a glance for any sign of deployment. It is a straightforward fixed 6-foot lanyard for general arrest applications where a visible shock indicator is preferred. Each connected worker also needs an ANSI full body harness and an anchorage rated for the load. Because it is a single-leg lanyard, the worker is unprotected during repositioning; for 100 percent tie-off use a double-leg lanyard instead.
Features
Clear external shock pack
The inline shock pack is easy to inspect at a glance and tears open under load to absorb energy, limiting arresting force to 900 pounds or less.
Two steel snap hooks
Self-locking alloy steel snap hooks on both ends with 3,600 lb gate strength connect to the harness and anchorage.
Fixed 6 ft length
A standard 6 foot working length for general fall arrest applications under OSHA Subpart M.
One-inch polyester webbing
Durable polyester webbing withstands jobsite wear and is easy to inspect.
Visible deployment indicator
The external pack makes a deployed shock absorber obvious, so a used lanyard is removed from service.
Bulk pack for crews
Ships as a multi-unit pack so a whole crew is equipped from one line item.
Technical Specifications
| Base SKU | C5000 |
|---|---|
| Type | Single-leg external shock-absorbing lanyard |
| Connectors | 2 self-locking steel snap hooks |
| Length | 6 ft fixed |
| Maximum arresting force | 900 lb or less |
| Maximum free fall | 6 ft (per the user manual) |
| Worker capacity | 130 to 310 lb, including tools and equipment |
| Webbing | 1 in polyester |
| Shock absorber | Clear external shock pack for visual inspection |
| Connector gate strength | 3,600 lb side and front load |
| Unit weight | 2.8 lb |
| Compliance | ANSI Z359.13-2009; OSHA 1926 Subpart M; OSHA 1910 |
| Testing | Third-party tested under ISO 17025 accreditation per the ANSI testing protocols |
| Warranty | 1 year limited (Malta Dynamics) against factory defects in workmanship and materials |
A single-leg lanyard does not provide 100 percent tie-off. The worker is unprotected while disconnecting and reconnecting. Verify fall clearance below the work surface before each use, keep free fall within 6 feet, confirm the anchorage is rated for the load, and retire the lanyard immediately after any fall-arrest event or if the shock absorber shows any sign of deployment.
Compliance Standards
ANSI Z359.13-2009
ANSI/ASSP standard for energy-absorbing lanyards and shock-absorbing connecting devices.
ISO 17025
Third-party laboratory testing performed under ISO 17025 accreditation per the ANSI protocols.
OSHA 29 CFR 1926 Subpart M
Construction fall protection, including personal fall arrest requirements under 1926.502.
OSHA 29 CFR 1910
General industry personal fall protection for walking-working surfaces.
Typical Applications
Use Overview
Use per the Malta Dynamics lanyard user instruction manual. The sequence below is an overview only.
- Inspect. Check the webbing, stitching, shock absorber, and all connectors before each use.
- Verify the harness. Wear an ANSI-compliant full body harness, fitted and adjusted, with the dorsal D-ring centered between the shoulder blades.
- Verify the anchorage. Confirm the anchorage is rated for the personal fall arrest load and located to keep free fall within 6 feet.
- Calculate clearance. Add free fall, deceleration distance, harness stretch, and a safety margin, and confirm that sufficient fall clearance is maintained below the work surface.
- Connect. Clip one snap hook to the dorsal D-ring and the other to the anchorage, confirming each gate is fully closed and locked and the shock pack is intact.
- Minimize swing falls. Keep the anchorage as directly overhead as possible to reduce pendulum swing.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least every six months or per your program. Remove the lanyard from service for any of the conditions below.
- Webbing: cuts, frays, abrasion, burns, chemical damage, or broken fibers.
- Stitching: pulled, cut, or broken threads anywhere on the assembly.
- External shock pack: any sign of tearing, elongation, deployment, or an exposed warning label.
- Snap hooks: cracks, deformation, corrosion, or a gate that does not close and lock.
- Labels: must remain legible and intact.
Retirement triggers: any fall-arrest event, any sign the external shock pack has begun to deploy, or any defect listed above. A lanyard that has been exposed to a fall must be permanently removed from service.
