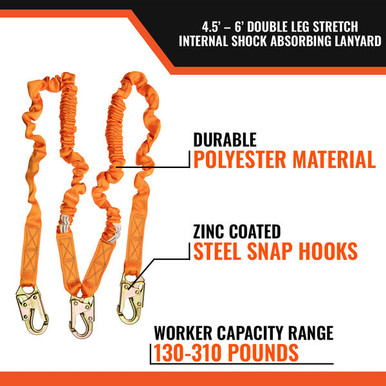

C5106 Double-Leg Stretch Internal Shock-Absorbing Lanyard with 3 Steel Snap Hooks
The Malta Dynamics C5106 is a double-leg energy-absorbing lanyard that provides 100 percent tie-off while a worker moves between anchor points. One snap hook connects to the harness dorsal D-ring and each leg ends in its own steel snap hook, so one leg stays clipped to a rated anchorage at all times. The elastic legs rest at 4.5 feet and stretch to 6 feet only when reach is needed.
A single internal shock absorber serves both legs, keeping the maximum arresting force at 900 pounds or less while staying lightweight. All three connectors are alloy steel with a 3,600 lb gate rating, and the assembly is third-party tested under ISO 17025 to ANSI Z359.13-2013. This listing ships as a bulk pack so a crew is outfitted from one line item.
Who Needs This Product
The C5106 is the connecting device in a personal fall arrest system, built for 100 percent tie-off. Its two legs let a worker clip the next anchor before unclipping the last, so they are never unprotected while repositioning at height. It suits crews moving along steel, scaffolding, or rooftops where continuous attachment is required. Each connected worker also needs an ANSI full body harness and anchorages rated for the load. Double-leg lanyards are intended for fall arrest, not fall restraint.
Features
100 percent tie-off
Two legs let a worker clip the next anchor before releasing the last, staying protected while moving between points.
Three steel snap hooks
One snap hook at the harness and one on each leg, all self-locking alloy steel with 3,600 lb gate strength.
Stretch legs
Both legs rest at 4.5 feet and extend to 6 feet only when needed, cutting loose lanyard that snags.
Shared internal shock absorber
A single energy absorber serves both legs, limiting maximum arresting force to 900 pounds or less while staying lightweight.
High-visibility webbing
One-inch polyester webbing in a vibrant orange color keeps the legs easy to see and inspect.
Bulk pack for crews
Ships as a multi-unit pack so a whole crew is equipped from one line item.
Technical Specifications
| Base SKU | C5106 |
|---|---|
| Type | Double-leg stretch internal shock-absorbing lanyard |
| Connectors | 3 self-locking steel snap hooks |
| Length | 4.5 ft at rest, stretches to 6 ft per leg |
| Maximum arresting force | 900 lb or less |
| Maximum free fall | 6 ft (per the user manual) |
| Tie-off | 100 percent (one leg always connected) |
| Worker capacity | 130 to 310 lb, including tools and equipment |
| Webbing | 1 in polyester, high-visibility orange |
| Connector tensile strength | Alloy steel, 5,000 lb minimum |
| Connector gate strength | 3,600 lb side and front load |
| Unit weight | 4.4 lb |
| Compliance | ANSI Z359.13-2013; ANSI A10.32-12; OSHA 1926 Subpart M; OSHA 1910; OSHA 1926.502 |
| Testing | Third-party tested under ISO 17025 accreditation |
| Warranty | 1 year limited (Malta Dynamics) against factory defects in workmanship and materials |
Keep one leg connected at all times. A double-leg lanyard provides 100 percent tie-off only when one leg is always clipped to a rated anchorage while you reposition. Never clip the unused leg back to your own harness D-ring unless it is a rated tie-back point. Verify fall clearance, keep free fall within 6 feet, and retire the lanyard after any fall-arrest event or shock absorber deployment.
Compliance Standards
ANSI Z359.13-2013
ANSI/ASSP standard for energy-absorbing lanyards and shock-absorbing connecting devices.
ANSI A10.32-12
ANSI/ASSP fall protection standard for construction and demolition operations.
OSHA 29 CFR 1926 Subpart M
Construction fall protection, including personal fall arrest system requirements under 1926.502.
OSHA 29 CFR 1910
General industry personal fall protection requirements for walking-working surfaces.
Typical Applications
Use Overview
Use per the Malta Dynamics lanyard user instruction manual. The sequence below is an overview only.
- Inspect. Check the webbing, stitching, shock absorber, and all connectors before each use.
- Verify the harness. Wear an ANSI-compliant full body harness, fitted and adjusted, with the dorsal D-ring centered between the shoulder blades.
- Verify the anchorage. Confirm the anchorage is rated for the personal fall arrest load and located to keep free fall within 6 feet.
- Calculate clearance. Add free fall, deceleration distance, harness stretch, and a safety margin, and confirm sufficient fall clearance below the work surface.
- Connect. Clip the single snap hook to the dorsal D-ring, then keep one leg clipped to a rated anchorage at all times while moving the other leg to the next anchor.
- Minimize swing falls. Keep the anchorage as directly overhead as possible to reduce pendulum swing.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least every six months or per your program. Remove the lanyard from service for any of the conditions below.
- Webbing: cuts, frays, abrasion, burns, chemical damage, or broken fibers.
- Stitching: pulled, cut, or broken threads anywhere on the assembly.
- Shock absorber: any sign of activation, deployment, or the warning label being exposed.
- Hooks: cracks, deformation, corrosion, or a gate that does not close and lock.
- Labels: must remain legible and intact.
Retirement triggers: any fall-arrest event, any sign the shock absorber has deployed, or any defect listed above. A lanyard exposed to a fall must be removed from service permanently.
