Warthog Pass-Thru Harness, 2-Pack

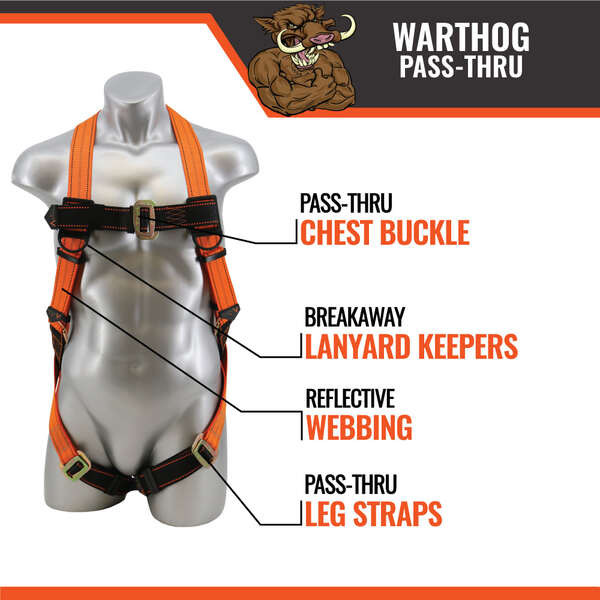

This kit ships two identical Warthog Pass-Thru full-body harnesses in the size you select, so a two-person crew can gear up from a single order. The Warthog Pass-Thru is Malta Dynamics' most economical full-body harness, built with pass-thru leg buckles, break-away lanyard keepers, a visible fall indicator, and a protected identification label.
Each harness carries a 130 to 310 lb capacity and meets ANSI Z359.11-2021, ANSI A10.32-2012, and OSHA 1926 Subpart M, backed by a Malta Dynamics Declaration of Conformity with ISO 17025 third-party testing. Choose your size, and both harnesses in the pack ship in that size.
Who Needs This Product
The Warthog Pass-Thru Harness is the wearable part of a personal fall arrest system - the full body harness each worker puts on before tying off to an anchor with a connecting device. This 2-pack is built for the crew lead outfitting two workers at once on a budget: roofers, framers, general contractors, and maintenance teams who need a no-frills, OSHA-compliant harness in volume. Each worker still needs a compatible connecting device, a self-retracting lifeline or a shock-absorbing lanyard, and an anchorage rated for fall arrest.
Features
Two harnesses, one size
Each kit contains two identical Warthog harnesses in the size you select, so a two-person crew gears up from a single line item.
Pass-thru leg buckles
Quick-mating pass-thru leg buckles make donning fast - slide the tab through the mating buckle and pull to fit.
Break-away lanyard keepers
Dual break-away keepers hold the lanyard legs out of the way and release cleanly the moment a fall begins.
Visible fall indicator
A built-in fall indicator flags whether the harness has taken an arrest load so an inspector can pull it from service fast.
Protected ID label
A protected identification label keeps the inspection and certification record legible without exposing the webbing.
Independently verified
Backed by a Malta Dynamics Declaration of Conformity with third-party testing performed under ISO 17025 accreditation.
Technical Specifications
| Kit contents | 2 identical Warthog Pass-Thru full body harnesses in the selected size |
|---|---|
| Unit SKUs by size | B2007 (S-M), B2000 (L-XL), B2001 (2XL), B2005 (3XL) |
| Type | Full body harness, single back (dorsal) D-ring |
| Worker capacity | 130 to 310 lb per worker, including tools and equipment |
| Maximum arrest force | 1,800 lb (8 kN) when used with compliant connecting equipment |
| Leg straps | Pass-thru buckles |
| Attachment | Dorsal (back) D-ring for fall arrest |
| Webbing | High-strength polyester |
| Hardware | Steel D-ring, buckles, and adjusters |
| Lanyard keepers | Dual break-away keepers |
| Fall indicator | Visible fall (impact) indicator |
| Identification label | Protected ID label for inspection records |
| Sizes | S-M, L-XL, 2XL, 3XL |
| Unit weight (approx.) | 2.8 lb (S-M), 2.8 lb (L-XL), 3.0 lb (2XL), 3.3 lb (3XL) |
| Compliance | ANSI Z359.11-2021; ANSI A10.32-2012; OSHA 1926 Subpart M; OSHA 1910 |
| Warranty | 1 year limited (Malta Dynamics) against factory defects in workmanship and materials |
A harness alone will not stop a fall. Each Warthog is one part of a complete personal fall arrest system. Pair every harness with a compatible connecting device and an anchorage rated for fall arrest, inspect the harness before each use, calculate fall clearance below the work surface, and remove any harness from service after a fall or once its fall indicator has deployed.
Compliance Standards
ANSI Z359.11-2021
ANSI/ASSP standard for full body harnesses, covering design, strength, and labeling. The Warthog is certified to this standard per its Declaration of Conformity.
ANSI A10.32-2012
ANSI/ASSP standard for fall protection systems used in construction and demolition operations.
OSHA 29 CFR 1926 Subpart M
Construction fall protection, including the personal fall arrest system requirements of 1926.502.
OSHA 29 CFR 1910
General industry fall protection requirements for personal fall arrest equipment.
Typical Applications
Fit and Donning Overview
Don and adjust per the Malta Dynamics Warthog user instruction manual. The sequence below is an overview only.
- Inspect. Check webbing, stitching, the back D-ring, buckles, and the fall indicator on each harness before every use.
- Don. Slip the harness over the shoulders and bring the leg straps up between the legs.
- Buckle the legs. Mate each pass-through leg buckle and pull the webbing to a snug setting.
- Adjust. Snug the torso and leg straps so a flat hand fits under the webbing - no slack, no pinching.
- Position the D-ring. Center the back D-ring between the shoulder blades.
- Connect. Clip a compatible self-retracting lifeline or shock-absorbing lanyard to the back D-ring and to an anchorage rated for fall arrest, then verify fall clearance.
Inspection and Retirement
Inspect each harness before every use, with a documented competent-person inspection at least every six months (or more often per your program). Remove a harness from service for any of the conditions below.
- Webbing: cuts, frays, burns, chemical damage, broken fibers, or heavy abrasion.
- Stitching: pulled, cut, or broken stitches at load-bearing seams.
- D-ring and hardware: cracks, distortion, sharp edges, corrosion, or rough operation.
- Buckles and adjusters: slipping, distortion, or parts that will not lock.
- Fall indicator: any deployed or activated indicator.
- Labels: the ID and certification labels must remain legible and attached.
Retirement triggers: any fall-arrest event, a deployed fall indicator, or any of the damage above. A harness that has arrested a fall must be removed from service permanently.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Malta Dynamics Warthog Pass-Thru Submittals and Documentation
Warthog Pass-Thru Spec Sheet (PDF)Key features, capacity, sizes, weights, materials, and compliance summary. Warthog Harness User Instruction Manual (PDF)Donning, fit, harness classes, inspection, retirement, and warranty. Warthog Pass-Thru Declaration of Conformity (PDF)Conformity statement with ISO 17025 third-party test verification for B2000, B2001, B2005, and B2007. Harness Inspection FormCompetent-person inspection checklist for webbing, stitching, D-Rings, and hardware.Compatible and Related Products
- Malta C7002-G2 Warthog 50 ft SRL. A Class 1 self-retracting lifeline to connect the harness to an overhead anchor.
- Malta C7102-G2 6 ft Pygmy Hog SRL. A compact personal SRL that clips to the harness back D-ring.
- Malta C7050 50 ft Vertical Lifeline Assembly. Rope lifeline and rope grab for vertical access work.
- Malta A6304 4-Way Roof Anchor Plate. A reusable roof anchor to tie off the personal fall arrest system.
Specifying Harnesses for Your Crew?
Need help specifying the right harness sizes and the connecting devices and anchors to go with them? Confirm your worker sizes, connector reach, and fall clearance with us and we will walk through the full kit list so the right equipment ships together.
Call 863-703-4522 to talk to a fall protection specialist.
