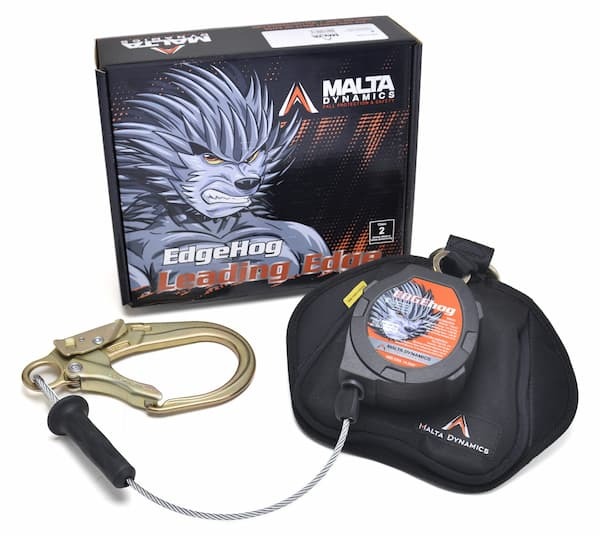

Malta Dynamics LE3263 6-foot EdgeHog SRL – Class 2 Leading Edge Protection with Rebar Hook
The Malta Dynamics LE3263 6-foot EdgeHog SRL provides elite fall protection in a compact package, specifically designed for workers who require oversized connection points in sharp-edged environments. Featuring a large-gate rebar hook, this Class 2 Self-Retracting Lifeline (SRL) is engineered for foot-level tie-offs where standard snap hooks cannot accommodate the anchorage. For applications using standard D-rings, consider the Malta Dynamics LE3261 6-foot EdgeHog SRL.
Leading Edge Protection Explained.
Understand the unique engineering requirements of a Class 2 device and why an integrated energy absorber is critical for arresting falls over sharp steel or concrete edges.
High-Performance Braking and Swivel Design

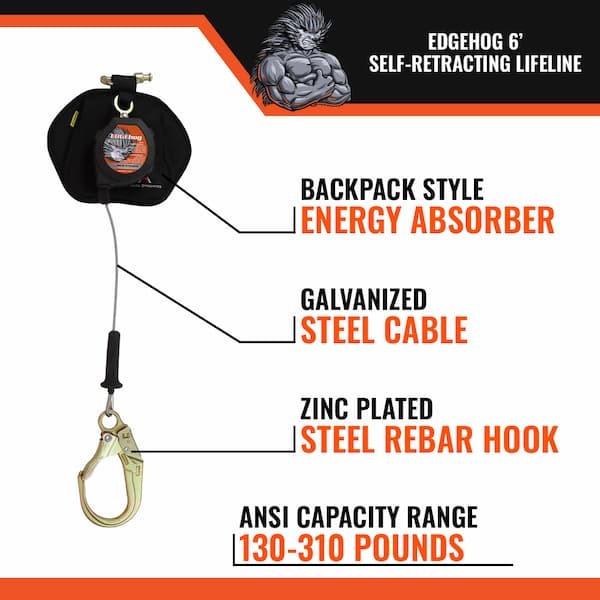

The LE3263 is equipped with a quick-action braking system that responds instantly to a fall event, providing maximum protection in a limited fall-clearance environment. The 360-degree swivel top design ensures smooth mobility without the 3/16″ galvanized steel lifeline tangling, even during rapid position changes. The oversized alloy steel rebar hook allows direct connection to scaffolding, structural steel, and other large anchorage points without additional adapters.
Engineered for Sharp Edges and Foot-Level Tie-Offs
Designed specifically for Class 2 Leading Edge use, the LE3263 features a rugged thermoplastic housing and a specialized backpack-style energy absorber. This system is tested to withstand falls onto sharp edges, effectively dissipating forces up to 1,800 lbs. Rated for OSHA and ANSI Z359.14-2021 compliance, the LE3263 is the definitive choice for workers navigating structural steel cages or concrete formwork where anchor points are below the dorsal D-ring.
Comprehensive Compliance and Routine Inspection
To ensure 100% reliability, the Malta Dynamics LE3263 requires a pre-use inspection before every shift. Verify that the fall indicator on the energy absorber has not been triggered; if red stitching or the deployment marker is visible, remove the unit from service immediately. Perform a manual strike test to ensure the centrifugal brakes lock instantly. For documented safety compliance, download the official Malta Dynamics SRL Inspection Form from the links below.
Malta Dynamics LE3263 Technical Submittal Data & Compliance Docs:
- Malta Dynamics LE3263 EdgeHog Personal Leading Edge SRL Spec Sheet – Full dimensional data and edge-test ratings.
- Malta Dynamics LE3263 Declaration of Conformity – OSHA/ANSI Class 2 compliance certification.
- Malta Dynamics LE3263 SRL Instruction Manual – Detailed guide on foot-level anchorage and rebar hook safety.
- Malta Dynamics SRL Fillable Inspection Form – Essential for maintaining documented safety logs.
Malta Dynamics LE3263 EdgeHog FAQ
1. When should I choose a rebar hook over a standard snap hook?
Rebar hooks feature a much larger gate opening, allowing you to anchor directly to structural steel or scaffolding. If your anchor point is a standard harness D-ring, the Malta Dynamics LE3261 Snap Hook model is the more appropriate alternative.
2. Is the Malta Dynamics LE3263 rated for foot-level tie-off?
Yes. The Malta Dynamics LE3263 is a Class 2 Leading Edge device. Unlike Class 1 units, it is tested to survive the pivot forces of a fall over sharp steel or concrete edges, making it safe for anchorage below the dorsal D-ring.
3. Why does the Malta Dynamics LE3263 have an external "backpack" absorber?
In a leading-edge fall, the energy generated is significantly higher. The backpack-style energy absorber is required to dissipate that force safely. For workers needing a larger radius, consider the Malta Dynamics LE3313 10-foot EdgeHog.
4. Does the Malta Dynamics LE3263 allow for 100% tie-off?
This is a single-leg unit. To maintain a constant connection while moving between structural anchors, you should upgrade to the Malta Dynamics Dual-Leg LE3263D model.
5. How do I perform a strike test on the Malta Dynamics LE3263?
Grasp the lifeline and pull sharply downward. The internal braking mechanism should lock immediately. Always walk the line back into the housing manually to avoid spring damage.
6. What is the worker's weight capacity for the Malta Dynamics LE3263?
The unit is rated for workers weighing between 130 and 310 lbs, including all tools and equipment, to ensure the energy absorber functions as tested.
7. How do I avoid common mistakes with the Malta Dynamics LE3263?
- 1. Improper Gate Locking: Ensure the rebar hook is fully closed and locked; never side-load the gate.
- 2. Swing Fall Hazard: Working too far laterally can cause a pendulum swing across sharp edges, increasing fall distance.
- 3. Clearance Miscalculation: Always consult the Malta Dynamics LE3263 SRL Instruction Manual for foot-level tie-off clearance charts, as they require more room than overhead ties.
