TechLine Temporary Horizontal Rope Lifeline, Two Workers

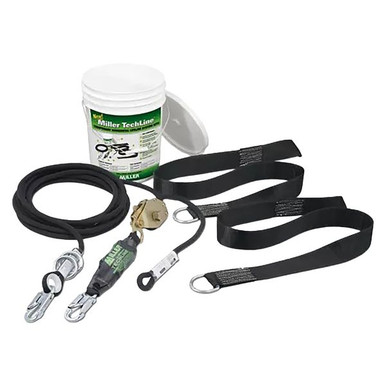

The TechLine strings a compliant horizontal between two anchors in minutes: 60 ft of 11/16 inch low-stretch kernmantle rope, an in-line shock absorber that caps system forces at 2,500 lb, an adjustable tensioner, and heavy-duty cross-arm straps for the ends. Two workers ride the line at once.
The low-stretch rope cuts deflection, which cuts the fall clearance the system needs below it, the number that decides where an HLL can go.
Who Needs This Product
Temporary HLLs solve the long-edge problem: workers traverse the span clipped to the line instead of re-anchoring every few feet. The TechLine packs the whole system, rope, absorber, tensioner, and end anchors, into one kit that installs without engineering for each setup, per the manual limits.
Features
Complete System Kit
Rope, in-line absorber, tensioner, cross-arm straps, and O-rings arrive together.
Low-Stretch Kernmantle
The 11/16 inch rope minimizes deflection, protecting the clearance below.
In-Line Shock Absorber
Caps system forces at 2,500 lb, protecting workers and anchors alike.
Two-Worker Rating
310 lb each, both on the line at once.
Adjustable Tensioner
Sets and maintains line tension for predictable performance.
Fast Installation
Lightweight components rig between rated anchors in minutes.
Technical Specifications
| SKU | HLLR2-Z7/60FT |
|---|---|
| Product | TechLine Temporary Horizontal Lifeline Kit |
| Stocked span | 60 ft |
| Rope | 11/16 in low-stretch kernmantle |
| Force limiting | In-line shock absorber, 2,500 lb |
| Capacity | 2 workers, 310 lb each |
| Includes | Rope, absorber, tensioner, cross-arm straps, O-rings |
| Standards | ANSI; OSHA; CSA compliant |
| Warranty | Miller Limited Lifetime Warranty against defects in workmanship and materials |
The anchor is only as good as the structure. Connect only to members that meet OSHA anchorage strength, position to minimize free fall and swing, and inspect before every use.
Compliance Standards
OSHA 1926.502 Anchorage
Anchorages for fall arrest must support 5,000 lb per worker attached, or maintain a safety factor of two under a qualified person.
ANSI Z359 Practice
Anchorage connectors follow ANSI Z359 component practice with 5,000 lb rated hardware.
ANSI Z359.2
Kept in service through pre-use checks and documented competent person inspections at least annually.
Typical Applications
Setup Overview
- Inspect the anchor and hardware before use.
- Select structure that meets OSHA anchorage strength for fall arrest.
- Install the anchor per the instructions for the structure type.
- Connect the lanyard or SRL and verify gates lock.
- Verify fall clearance and swing fall exposure before working.
Full installation instructions ship with the product.
Inspection and Retirement
Inspect before each use and have a competent person inspect at least annually per ANSI Z359.2.
- Webbing or body: cuts, frays, corrosion, cracks, distortion, or damage.
- D-rings and hooks: no cracks, corrosion, distortion; gates lock where fitted.
- Stitching and fasteners: intact and tight.
- Labels: present and legible.
Retirement triggers: any fall arrest loading, any defect found during inspection, or failure to verify fitness for service.
