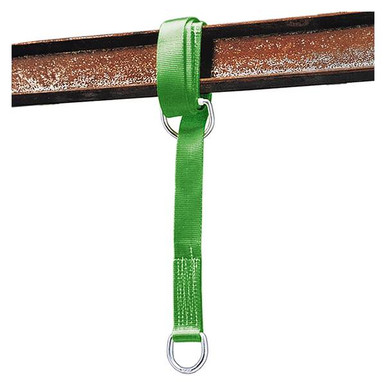

Cross-Arm Strap with Two D-Rings
The 8183 turns structure into anchorage: wrap the strap around a beam, pass the small D-ring through the large one, and clip in. Seven stocked lengths from 2 to 20 ft wrap everything from purlins to girders, with the choke design cinching tight so the anchor stays where it was set.
Built to meet OSHA and ANSI anchorage connector standards, the strap installs in seconds, weighs ounces on the belt, and moves with the crew all day.
Who Needs This Product
The cross-arm strap is the most-used anchor on most jobsites: portable, structure-agnostic, and fast. The choke configuration keeps the D-ring positioned under load, and the length run means the same product wraps a 4 inch purlin or a 6 ft column. Match the length to the member; extra strap is extra swing.
Features
Choke-Through Design
Pass the small D-ring through the large one and the strap cinches down on the member, holding position under load.
Seven Stocked Lengths
2, 3, 4, 6, 10, 12, and 20 ft cover members from purlins to girders.
Integral D-Rings
Forged D-rings give the connecting device a proper interface at any wrap size.
Lightweight Webbing
High-quality polyester rides on the harness or belt between anchor points.
Adjustable Fit
The wrap adapts to the member; no sizing beyond picking the length.
Reusable Temporary Anchor
Installs, moves, and reinstalls all day without tools.
Technical Specifications
| SKU | 8183 family |
|---|---|
| Product | Cross-Arm Anchor Strap |
| Stocked lengths | 2, 3, 4, 6, 10, 12, 20 ft |
| Configuration | Two D-rings, choke-through |
| Webbing | Polyester, green |
| Standards | Meets OSHA and ANSI anchorage connector standards |
| Warranty | Miller Limited Lifetime Warranty against defects in workmanship and materials |
Sizes and Ordering Information
| Length | SKU | UPC |
|---|---|---|
| 2 ft | 8183/2FTGN | 612230119546 |
| 3 ft | 8183/3FTGN | 612230119058 |
| 4 ft | 8183/4FTGN | 612230119065 |
| 6 ft | 8183/6FTGN | 612230117566 |
| 10 ft | 8183/10FTGN | 612230119577 |
| 12 ft | 8183/12FTGN | 612230119560 |
| 20 ft | 8183/20FTGN | 612230119737 |
All seven stocked lengths are selectable from the options above.
The anchor is only as good as the structure. Connect only to members that meet OSHA anchorage strength, position to minimize free fall and swing, and inspect before every use.
Compliance Standards
OSHA 1926.502 Anchorage
Anchorages for fall arrest must support 5,000 lb per worker attached, or maintain a safety factor of two under a qualified person.
ANSI Z359 Practice
Anchorage connectors follow ANSI Z359 component practice with 5,000 lb rated hardware.
ANSI Z359.2
Kept in service through pre-use checks and documented competent person inspections at least annually.
Typical Applications
Setup Overview
- Inspect the anchor and hardware before use.
- Select structure that meets OSHA anchorage strength for fall arrest.
- Install the anchor per the instructions for the structure type.
- Connect the lanyard or SRL and verify gates lock.
- Verify fall clearance and swing fall exposure before working.
Full installation instructions ship with the product.
Inspection and Retirement
Inspect before each use and have a competent person inspect at least annually per ANSI Z359.2.
- Webbing or body: cuts, frays, corrosion, cracks, distortion, or damage.
- D-rings and hooks: no cracks, corrosion, distortion; gates lock where fitted.
- Stitching and fasteners: intact and tight.
- Labels: present and legible.
Retirement triggers: any fall arrest loading, any defect found during inspection, or failure to verify fitness for service.
