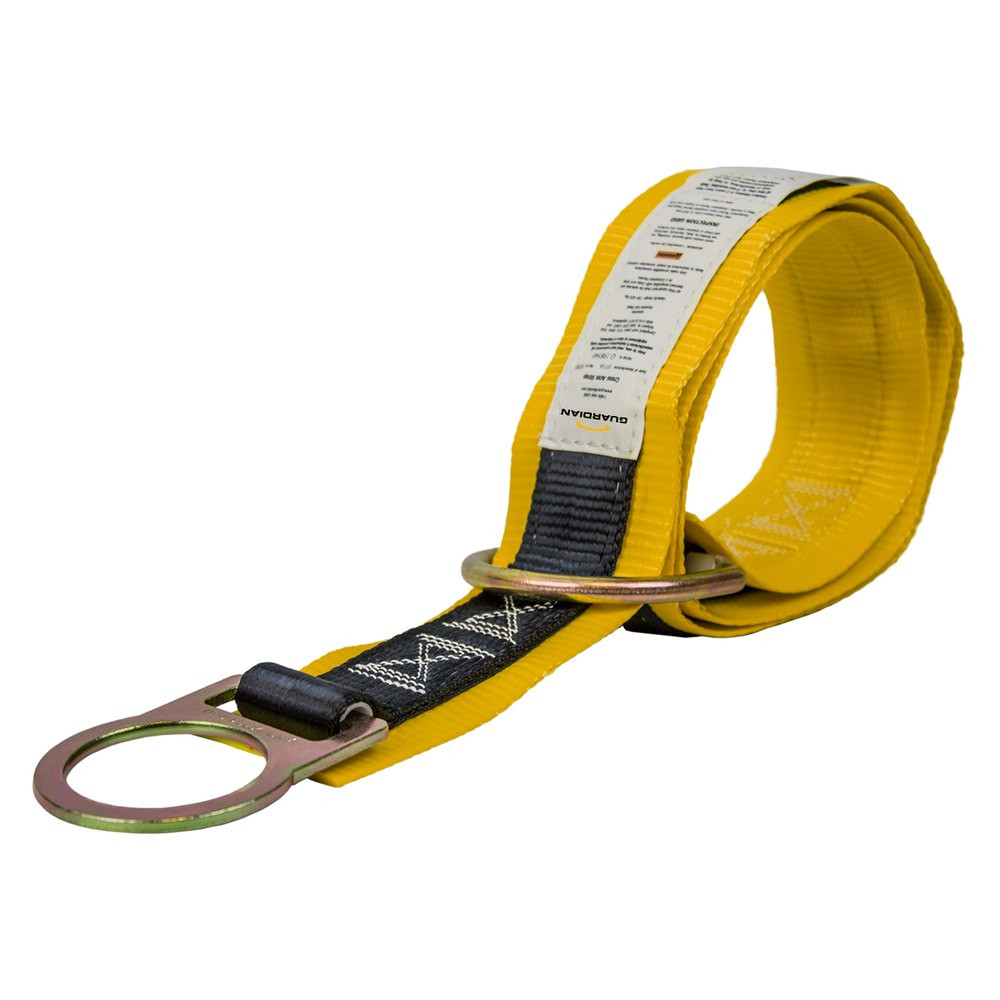

Premium X-Arm Cross Arm Strap with Large and Small D-Rings
The Guardian Premium X-Arm is the workhorse pass-around anchor: heavy webbing that wraps beams, columns, and cross arms, terminating in a large D-ring on one end and a small D-ring on the other. Pass the small ring through the large one, cinch the wrap, and clip in to the small ring, a rated anchorage anywhere compatible structure exists.
Stocked in six lengths from 3 to 20 ft, each rated for one worker under OSHA 1926.502 and 1910.140. Lengths through 10 ft ship as 2-packs; the 20 ft ships as a single.
Who Needs This Product
Cross arm straps are the most-carried anchor in fall protection because structure is everywhere and drilled anchors are not. Match the length to the member you wrap: 3 and 4 ft for joists and small beams, 6 and 8 ft for columns and standard structural steel, 10 and 20 ft for tanks, large columns, and girders. The large-through-small choke keeps the strap snug so it cannot slide down a vertical member.
Features
Superior durability
Superior durability
Compatible with horizontal lifelines
Compatible with horizontal lifelines
Fast installation and easy to relocate as work d
Fast installation and easy to relocate as work dictates
Available in various lengths
Available in various lengths
Jobsite-grade construction
Built with the materials and finish quality Guardian applies across its height safety line.
Documented compliance
Full manufacturer documentation is linked on this page for submittal packages.
Options in This Family
| SKU | Description |
|---|---|
| 10785-2PK | Guardian Premium X-Arm Cross Arm Strap, 3 ft (2-Pack) |
| 10786-2PK | Guardian Premium X-Arm Cross Arm Strap, 4 ft (2-Pack) |
| 10787-2PK | Guardian Premium X-Arm Cross Arm Strap, 6 ft (2-Pack) |
| 10788-2PK | Guardian Premium X-Arm Cross Arm Strap, 8 ft (2-Pack) |
| 10790-2PK | Guardian Premium X-Arm Cross Arm Strap, 10 ft (2-Pack) |
| 10793 | Guardian Premium X-Arm Cross Arm Strap, 20 ft |
Technical Specifications
| SKU | 10785-2PK / 10786-2PK / 10787-2PK / 10788-2PK / 10790-2PK / 10793 |
|---|---|
| Worker capacity | 130-420 lbs. including all clothing, tools, and equipment |
| Materials | Polyester |
| Product weight | 1.1 lbs |
| Dimensions | 0 in L x 0 in W x 0 in H |
| Standards | OSHA 1910.140, OSHA 1926.502, ANSI Z359.18 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Anchorage strength is the foundation of the system. The structure and anchor must withstand 5,000 lbs per attached worker or maintain a 2:1 safety factor under qualified-person supervision. Verify substrate, fastener, and orientation requirements against the instruction manual before every installation.
Compliance Standards
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.502
This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.
ANSI Z359.18
This product is compliant with ANSI Z359.18 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Installation Overview
Installation must follow the Guardian instruction manual for this anchor. The sequence below is an overview only.
- Inspect first. Check the anchor body, connection point, and hardware before every installation.
- Verify the structure. The supporting structure must meet the strength requirements in the instruction manual.
- Install per the manual. Follow the substrate, fastener, and orientation requirements exactly; fill every required fastener position.
- Verify the connection. Confirm the anchor is fully seated and the connection point is accessible and undamaged.
- Connect the system. Attach a compatible connecting device and verify the complete personal fall arrest system with a competent person.
- Check clearance. Confirm fall clearance below the work area and minimize swing fall hazards before work begins.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the anchor from service for any of the conditions below.
- Cracks, corrosion, or deformation of the body, connection point, or welds.
- Loose, missing, damaged, or worn hardware and fasteners.
- Elongation or wear at the D-ring or connection eye.
- Missing or illegible labels.
- Any evidence the anchor has arrested a fall.
Retirement triggers: any fall event on the anchor, or any condition where the inspector cannot positively verify it is fit for service.
