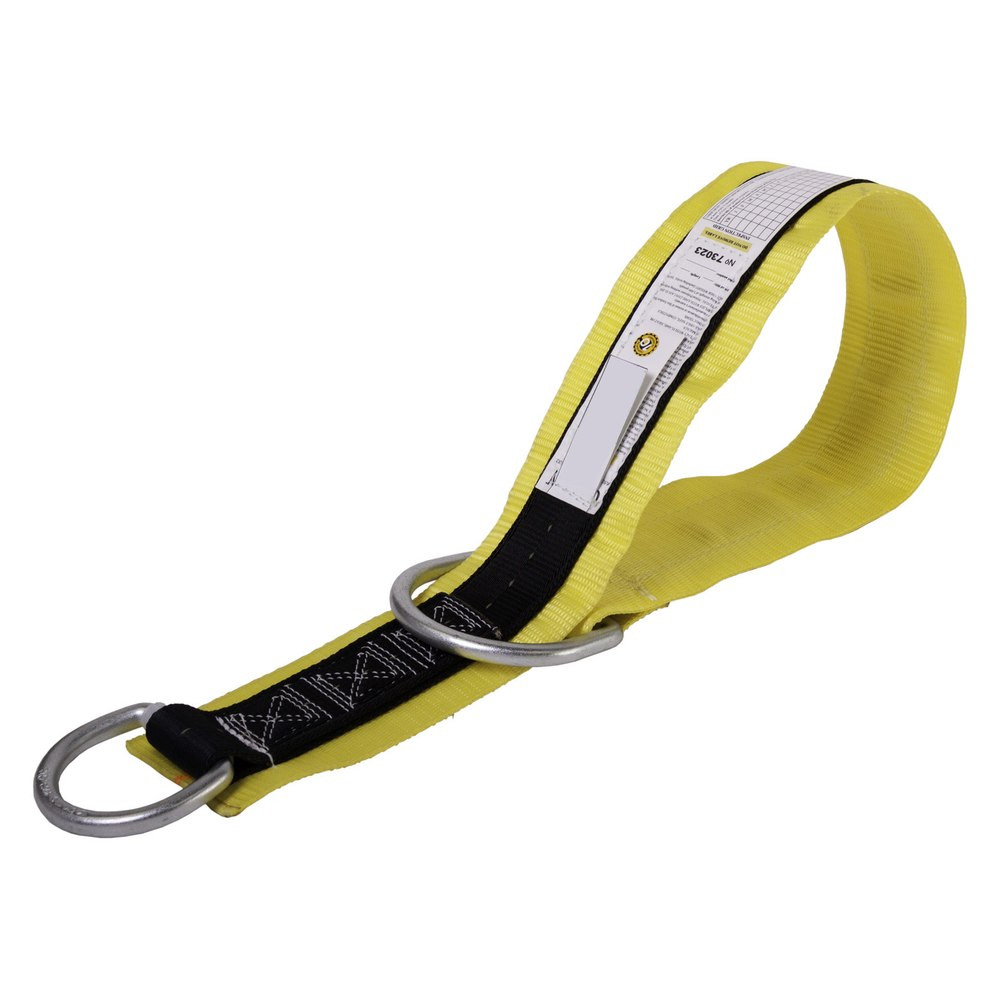

Premium Cross Arm Strap
The Guardian 10794 is the top-spec cross arm strap in the line: premium webbing and hardware built for daily wraps on abrasive structural steel, with the strength and inspection life that heavy-rotation crews need from their most-used anchor.
Rated for one worker under OSHA 1926.502 and 1910.140, rigged per the wrap configurations in the manual.
Who Needs This Product
Fleets that wrap anchors dozens of times a day retire straps on webbing wear, and the premium build exists to stretch that cycle: heavier webbing, reinforced wear points, and hardware that shrugs off being dragged across steel. It rigs like every cross arm strap, choked around the member with the connecting device on the D-ring, and inspects on the same criteria.
Features
Built for long-lasting strength
Premium wear pad and reinforced webbing deliver superior durability, even in harsh jobsite conditions
Supports versatile fall protection use
Compatible with horizontal lifeline systems and standard connectors for flexible application
Simplifies setup and repositioning
Designed for fast installation and easy relocation as work locations change
Fits your specific job needs
Available in multiple lengths to accommodate different anchor locations and working heights
Jobsite-grade construction
Built with the materials and finish quality Guardian applies across its height safety line.
Documented compliance
Full manufacturer documentation is linked on this page for submittal packages.
Technical Specifications
| SKU | 10794 |
|---|---|
| Worker capacity | 130-420 lbs. including all clothing, tools, and equipment |
| Tensile strength | 5,000 lbs. |
| Materials | Polyester |
| Product weight | 4 lbs |
| Dimensions | 0 in L x 0 in W x 0 in H |
| Standards | OSHA 1910.140, OSHA 1926.502, ANSI Z359.18 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Anchorage strength is the foundation of the system. The structure and anchor must withstand 5,000 lbs per attached worker or maintain a 2:1 safety factor under qualified-person supervision. Verify substrate, fastener, and orientation requirements against the instruction manual before every installation.
Compliance Standards
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.502
This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.
ANSI Z359.18
This product is compliant with ANSI Z359.18 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Installation Overview
Installation must follow the Guardian instruction manual for this anchor. The sequence below is an overview only.
- Inspect first. Check the anchor body, connection point, and hardware before every installation.
- Verify the structure. The supporting structure must meet the strength requirements in the instruction manual.
- Install per the manual. Follow the substrate, fastener, and orientation requirements exactly; fill every required fastener position.
- Verify the connection. Confirm the anchor is fully seated and the connection point is accessible and undamaged.
- Connect the system. Attach a compatible connecting device and verify the complete personal fall arrest system with a competent person.
- Check clearance. Confirm fall clearance below the work area and minimize swing fall hazards before work begins.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the anchor from service for any of the conditions below.
- Cracks, corrosion, or deformation of the body, connection point, or welds.
- Loose, missing, damaged, or worn hardware and fasteners.
- Elongation or wear at the D-ring or connection eye.
- Missing or illegible labels.
- Any evidence the anchor has arrested a fall.
Retirement triggers: any fall event on the anchor, or any condition where the inspector cannot positively verify it is fit for service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Guardian 10794 Premium Cross Arm Strap Submittals and Documentation
Guardian Cross Arm Strap Manual (PDF)Installation, use rules, and inspection criteria from the manufacturer.Guardian Premium Cross Arm Strap Tds (PDF)Dimensions, materials, capacities, and the full compliance summary.Guardian Premium Cross Arm Strap Test Report 2 (PDF)ISO 17025 accredited laboratory test results.Guardian Premium Cross Arm Strap Doc Of Conformity 2 (PDF)Manufacturer declaration of conformity.Guardian 00205 Inspection Form (PDF)Printable competent-person inspection checklist.Compatible and Related Products
- Guardian External Shock Absorbing Lanyard 2-Pack. Connecting devices for anchored workers.
- Guardian 10900 Halo 11 ft Web SRL. Short-clearance SRL for overhead anchorage.
- Guardian 00455 Temper Roof Anchor 4-Pack. Reusable residential roof anchors.
Specifying Anchors for Your Jobsite?
Substrate, structure, and system layout decide the right anchor. Confirm your application with us and we will make sure the right equipment ships together, based on the delivery location.
Call 863-703-4522 to talk to a fall protection specialist.
Guardian Fall Protection Manufacturer Warranty
Guardian warrants to the purchaser that all products are free from defects in material, workmanship, and design (when the design is Guardian's responsibility). This warranty does not cover conditions resulting from normal wear and tear, neglect, abuse, accident, or otherwise. Guardian's obligations under this warranty apply for the lifetime of the product and are limited to the replacement of the product only.
This warranty is not transferable and does not apply to product that is resold after having been put into service. The warranty is void if the product is changed or altered in any way, or if the product is used in a manner other than for which it is intended. No other person, firm, or entity is authorized to assume or assign for Guardian any other liability in connection with the sale or use of Guardian products. There are no implied warranties of merchantability or fitness for a particular purpose.
Source: Guardian Standard Terms and Conditions of Sale, Doc. 102 v3.0. Contact Guardian customer service at +1 (800) 466-6385 or through guardianfall.com for warranty claims and product support.
