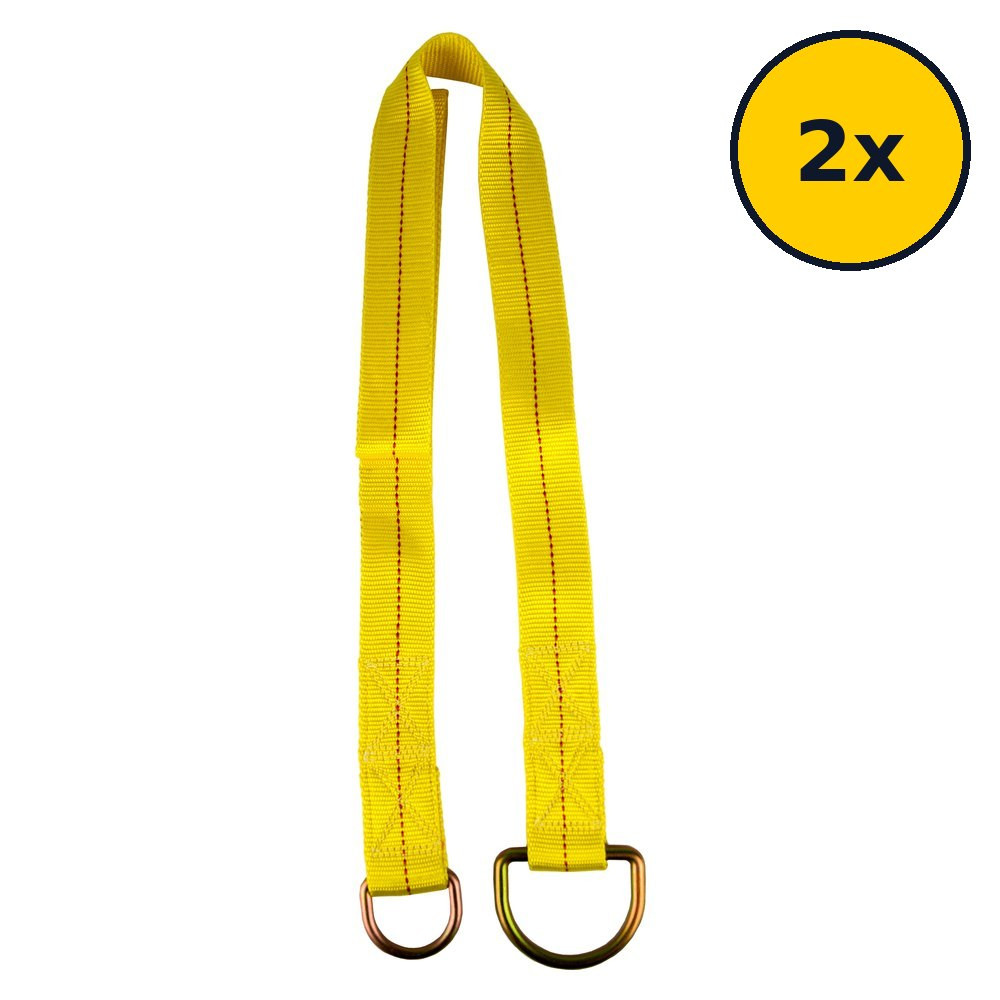

XARM-72 Cross Arm Strap, 6 ft, Large and Small D-Rings, 2-Pack
The Guardian 01625 splits the difference in the strap line: the standard-duty 6 ft XARM webbing with the large-and-small D-ring termination of the premium series. Choke it around the member with the small ring through the large, clip to the small ring, and the anchor is set.
Sold as a 2-pack, each strap rated for one worker under OSHA 1926.502 and 1910.140.
Who Needs This Product
Crews that prefer steel-on-steel choking, D-ring through D-ring rather than webbing loop, but do not need premium webbing land on the 01625. It rigs identically to the Premium X-Arm, inspects on the same criteria, and the 2-pack covers a two-point rigging layout or keeps a spare on the truck.
Features
Superior durability
Superior durability
Compatible with horizontal lifelines
Compatible with horizontal lifelines
Fast installation and easy to relocate as work d
Fast installation and easy to relocate as work dictates
Available in various lengths
Available in various lengths
Jobsite-grade construction
Built with the materials and finish quality Guardian applies across its height safety line.
Documented compliance
Full manufacturer documentation is linked on this page for submittal packages.
Technical Specifications
| SKU | 01625-2PK |
|---|---|
| Worker capacity | 130-420 lbs including all clothing, tools, and equipment |
| Tensile strength | 5,000 lbs. |
| Materials | Polyester |
| Standards | OSHA 1910.140, OSHA 1926.502, ANSI Z359.18-2017 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Anchorage strength is the foundation of the system. The structure and anchor must withstand 5,000 lbs per attached worker or maintain a 2:1 safety factor under qualified-person supervision. Verify substrate, fastener, and orientation requirements against the instruction manual before every installation.
Compliance Standards
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.502
This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.
ANSI Z359.18-2017
This product is compliant with ANSI Z359.18-2017 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Installation Overview
Installation must follow the Guardian instruction manual for this anchor. The sequence below is an overview only.
- Inspect first. Check the anchor body, connection point, and hardware before every installation.
- Verify the structure. The supporting structure must meet the strength requirements in the instruction manual.
- Install per the manual. Follow the substrate, fastener, and orientation requirements exactly; fill every required fastener position.
- Verify the connection. Confirm the anchor is fully seated and the connection point is accessible and undamaged.
- Connect the system. Attach a compatible connecting device and verify the complete personal fall arrest system with a competent person.
- Check clearance. Confirm fall clearance below the work area and minimize swing fall hazards before work begins.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the anchor from service for any of the conditions below.
- Cracks, corrosion, or deformation of the body, connection point, or welds.
- Loose, missing, damaged, or worn hardware and fasteners.
- Elongation or wear at the D-ring or connection eye.
- Missing or illegible labels.
- Any evidence the anchor has arrested a fall.
Retirement triggers: any fall event on the anchor, or any condition where the inspector cannot positively verify it is fit for service.
